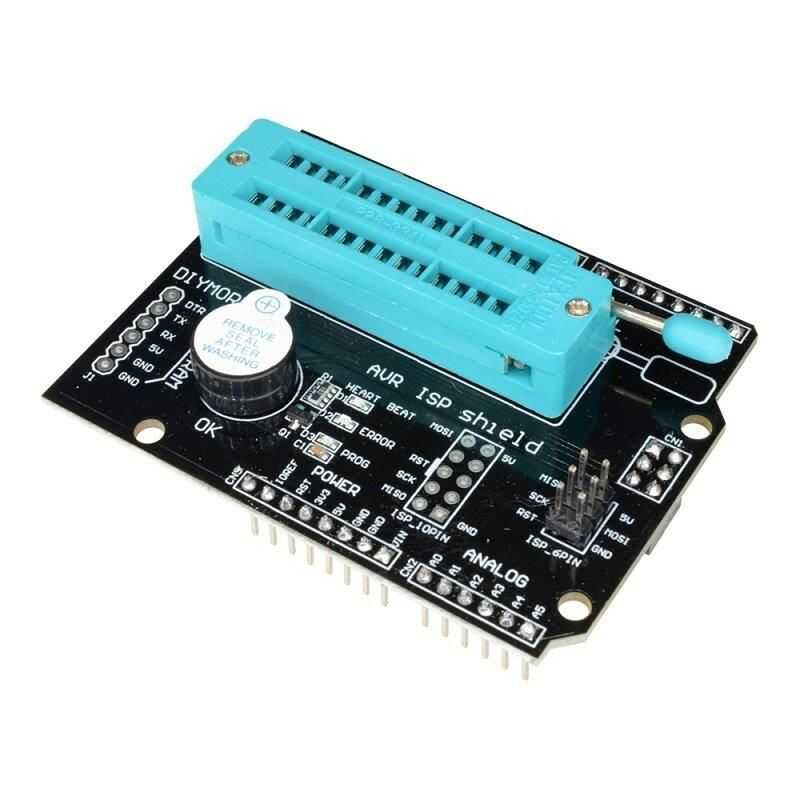

This is a program expansion shield that allows your Arduino board to switch fuses and write the bootloader to external chips and other Arduino boards.
There is a built-in buzzer and LED indicators that show whether the write is successful or not. Using OPEN-SMART is as simple as described in the manual.
Features:
- Compatibility: Compatible with Arduino UNO R3 / Arduino Mega2560 Compatible with Arduino UNO R3 / Arduino Mega2560, as it uses the SPI pins of the ICSP interface, when plugged directly into the two boards of the bootloader can switch to the burner.
- Working voltage: 5V
- Working current: 500mA (max.)
- Arduino board will burn: Arduino UNO R3 / Mega 2560 / Nano/pro mini (5V 16M) support
- The built-in buzzer will sound once if the fuse bit is changed successfully, and then if the booting is completed, it will sound once again. If two beeps are not heard, the write fails. It can capture sound instead of LED lights, so it will improve typing efficiency.
- Built-in LED indicators, HEART BEAT LED lights up like breathing light when working normally. During programming, the PROG indicator flashes until it stops flashing. If programming fails, the ERROR indicator (red) will light.

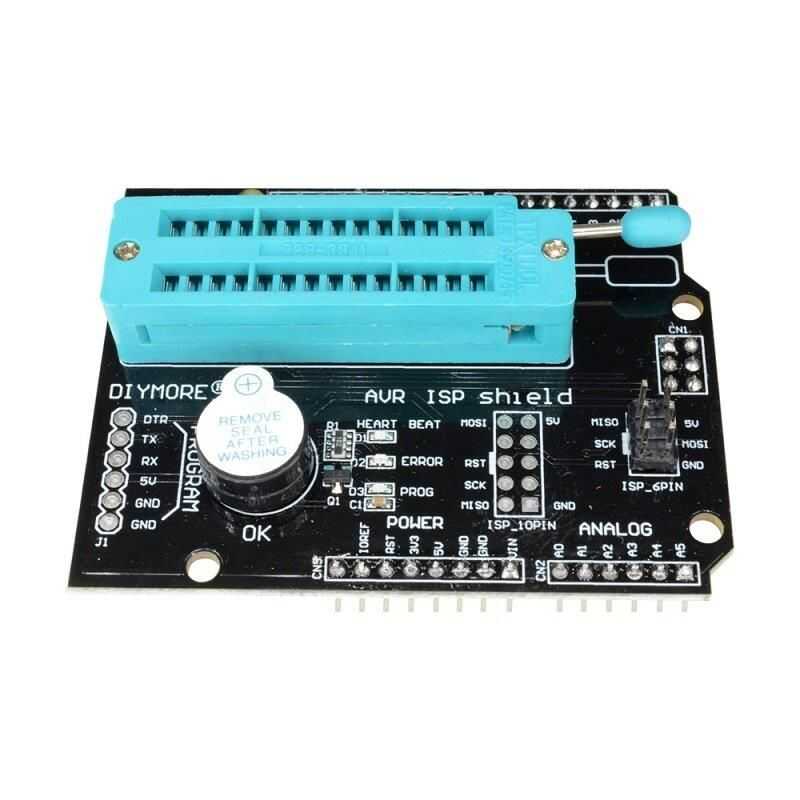

- Onboard 28P locking seat for Atmega328P, Atmega168P, Atmega8 bootloader writing

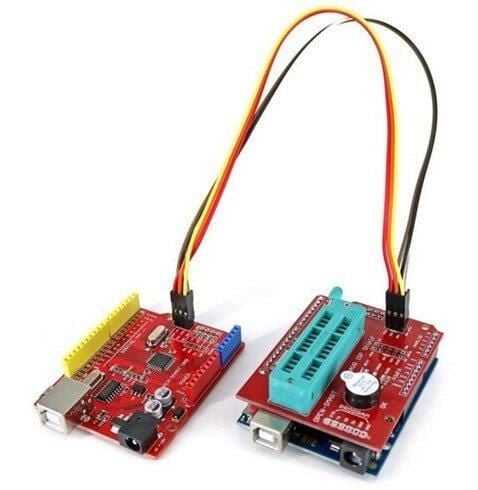

- Onboard ISP_6 PIN interface, external Arduino board for bootloader writing
- In-Vehicle ISP_10 PIN interface
- Onboard FT232RL and CH340G USB - TTL programmer interface for uploading code to the chip in the 28P locking slot.
Size
2.72 in x 2.13 in x 0.91 in (6.9 cm x 5.4 cm x 2.3 cm)< /DIV>
Weight1.02 oz (28.8 g)
