ST-LINK V2 CN

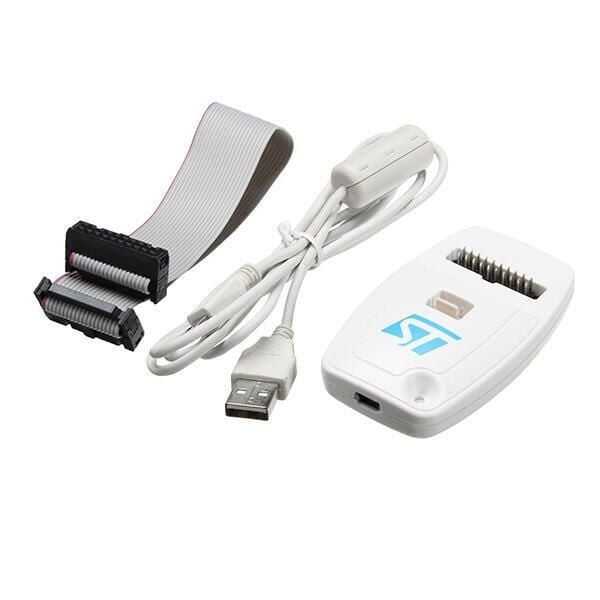

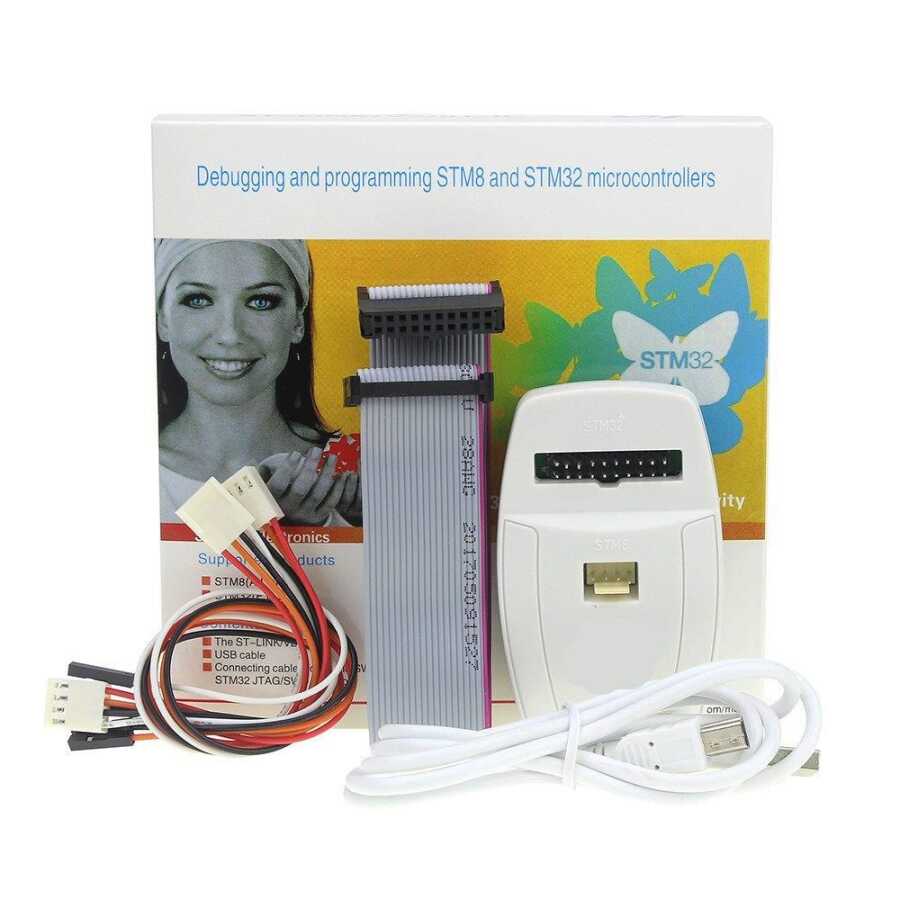

ST-LINK / V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single-wire interface module (SWIM) and JTAG/serial wire debug (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.
In addition to providing the same functions as DIV>ST-LINK/V2, ST-LINK/V2-ISO provides digital isolation between the PC and the target application board. It can also withstand voltages up to 1000 Vrms.
USB full-speed interface for communicating with STM8 applications, ST Visual Develop (STVD) or ST Visual Program (STVP) software
STM32 applications use the USB full-speed interface to communicate with Atollic®, IAR™, Keil® or TASKING integrated development environments.
-ST-LINK/V2 is designed for STM8 series and STM32 series MCU simulation and online download development tools.
-STM32 series connects to ST-LINK/V2 via JTAG/SWD interface
-STM8 series connects to ST-LINK/V2 via SWIM interface
-ST-LINK/V2 connects to PC via high-speed USB2.0
- Support with SMIM STM8 series MCU interface
- 5 V power supplied by a USB connector
- USB 2.0 full-speed compatible interface
- USB standard A to Mini - B cable
- Direct firmware update feature supported
- Blinking status LED when communicating with PC
- Operating temperature 0 - 50 ° C
- 1000 Vrms high isolation voltage
Supports next developing software:
ST-LINK Utility v2.0 (and above)
STVD Version 4.2.1 (and above)
STVP Version 3.2.3 (and above)
IAR EWARM Revision v6.20 (and above)
IAR EWSTM8 Revision v1.30 (and above)
KEIL RVMDK Revision v4.21 (and above)
ATOLLIC
TASKIN
