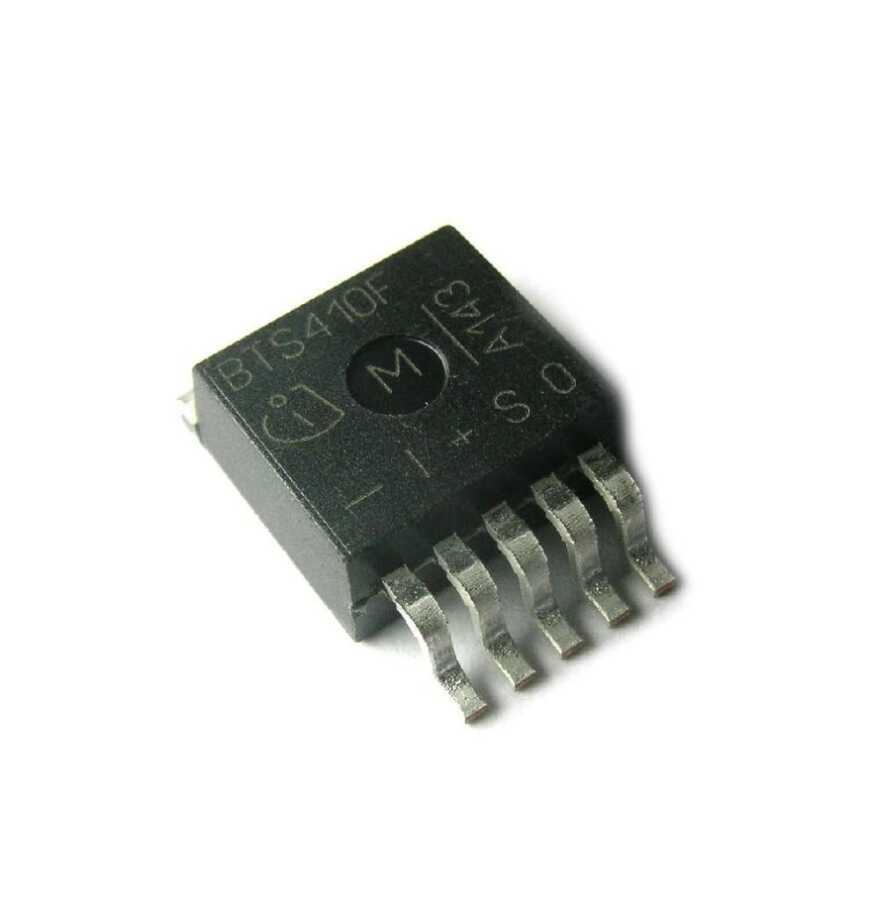

BTS410F Profet - Mofset SMD



Monolithically integrated N-channel vertical power FET with charge pump, ground-referenced CMOS compatible input and diagnostic feedback. Provision of embedded protective functions. Used in vehicle motherboards.



• Overload protection
• Current limitation
• Short circuit protection
• Thermal shutdown
• Surge protection (including load shedding)
• Rapid demagnetization of inductive loads

• µC compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads
• Optimal for inductive loads
• Replaces electromechanical relays, fuses and discrete circuits



Series	BTS
Vbb(AZ)	65V
Vbb(on)	4.2-42V
Load Current IL(ISO)	1.8A
Current limitation IL(SCr)	2.7A
Package Type	TO-220AB/5 SMD
