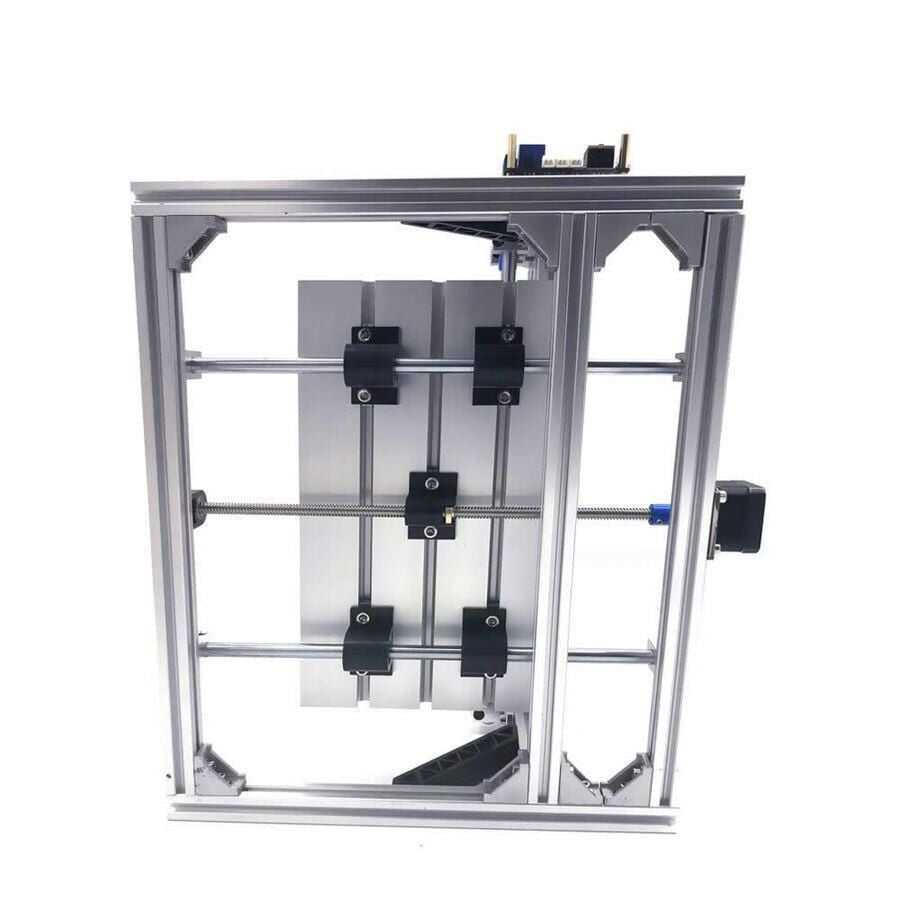

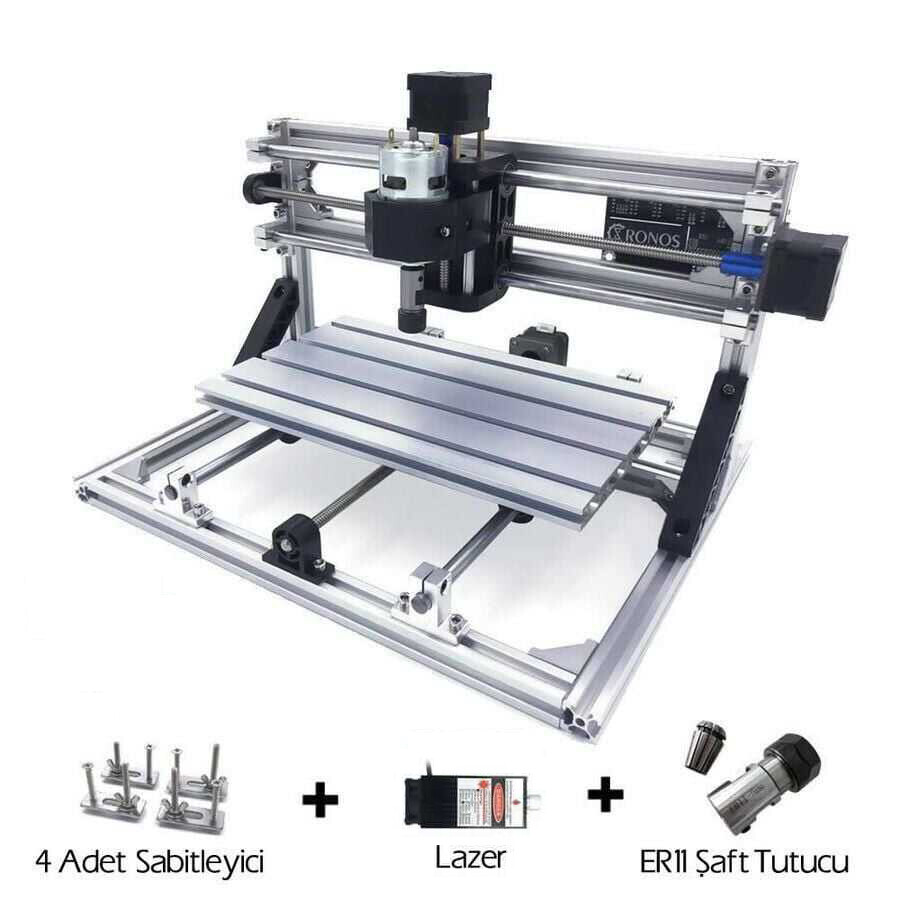

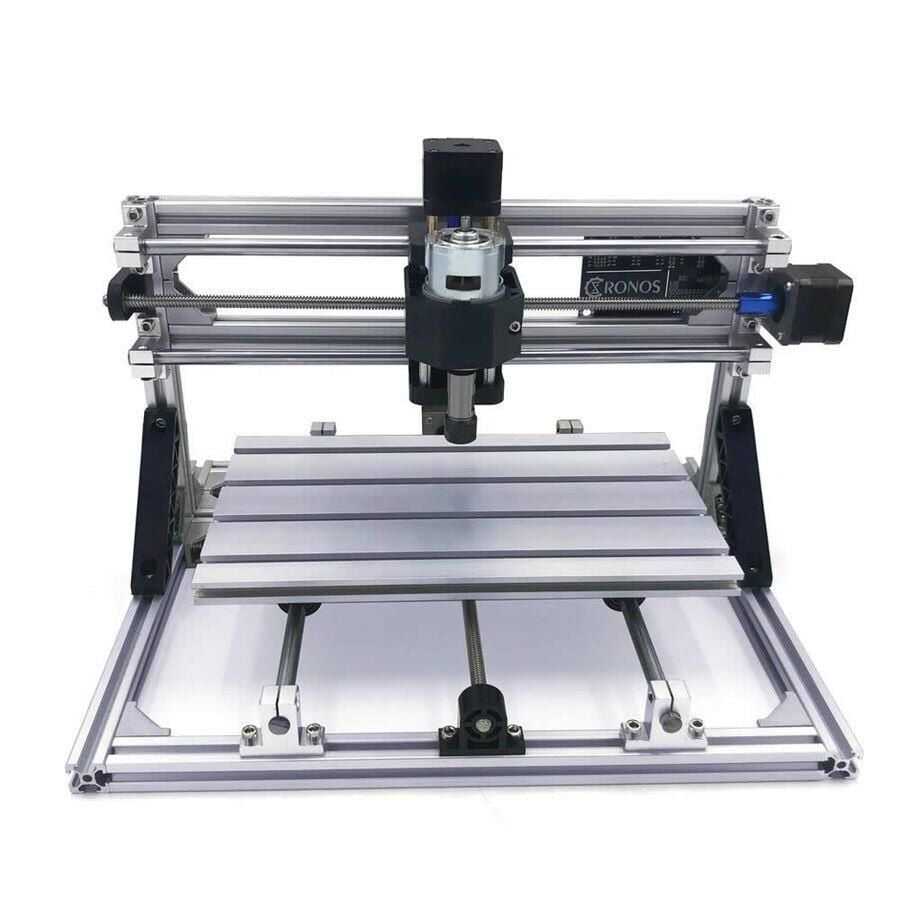

CNC3018; It is a CNC machine that you can use for laser cutting operations and contains a 15000mW burning laser and a spindle motor. With this product, which comes completely disassembled and is very easy to install, you will have your own CNC machine.
With its 15000mW burning laser and cutter motor; plastic, wood, pvc, pcb, mdf etc. It provides the opportunity to carve and shape many surfaces.
The product includes the necessary equipment for installation and use, including the power supply. A pair of protective glasses is given as a gift along with the product.
Technical Specifications:
Engraving machine working area: 300x180x45mm;
Structure size: 400x330x240mm
Aluminum alloy plate area: 300x180mm;
Spindle motor: DC24V, max. 120 Watt, 10000 rpm;
Stepper Motor: input DC12V, 1.3A, 0.3Nm torque;
Power supply: input AC100-240V, 50/60Hz, 1.3A, output DC24V 5A;
Control software: GRBL control;
System available for PC: Windows XP/7/8/10 (does not support Mac OS); etc.
For laser engraving: wood, plastic, leather, bone, stone, paper, shell, etc.
