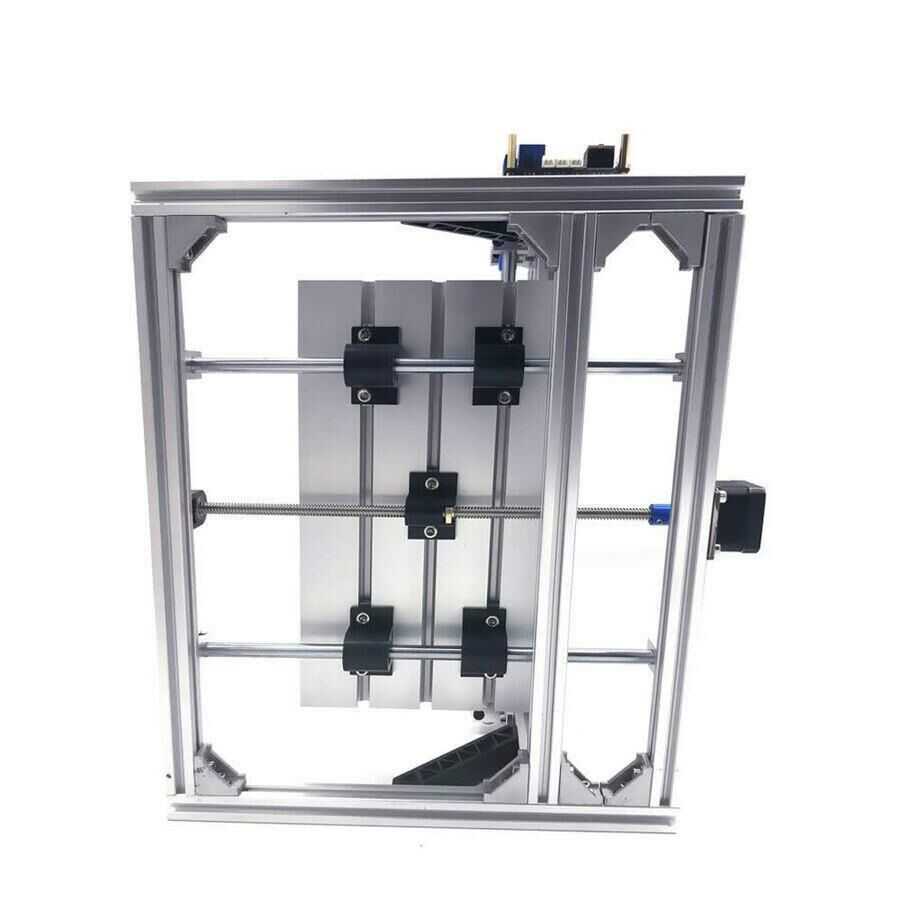

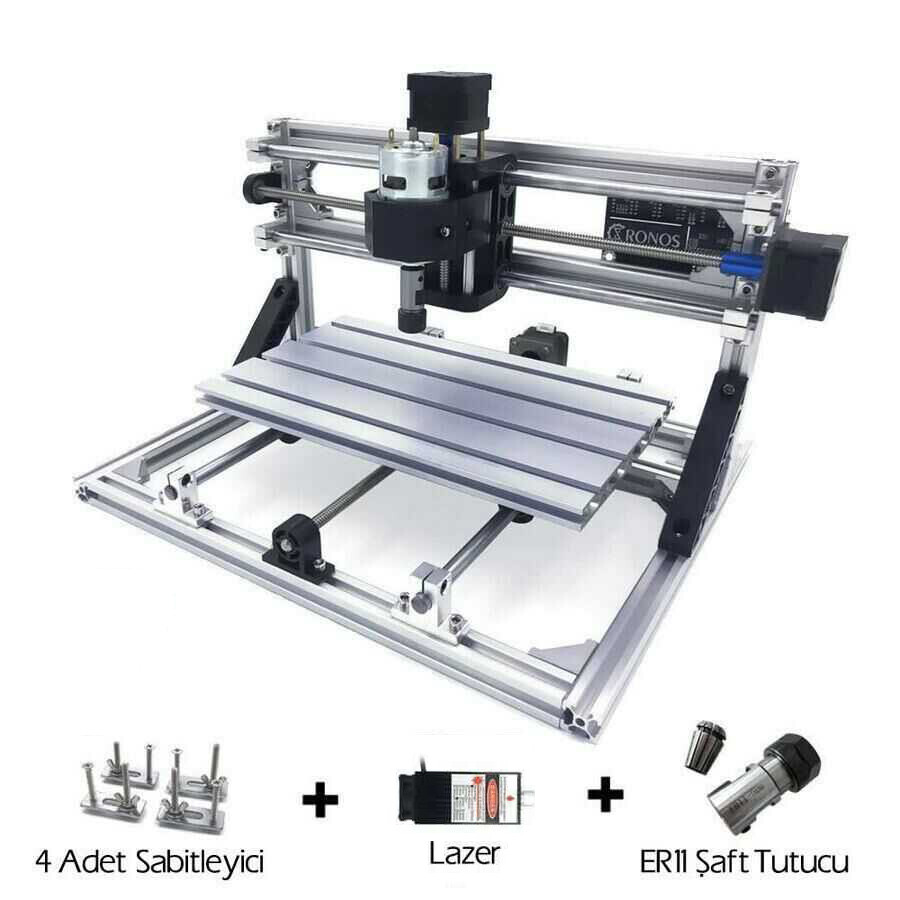

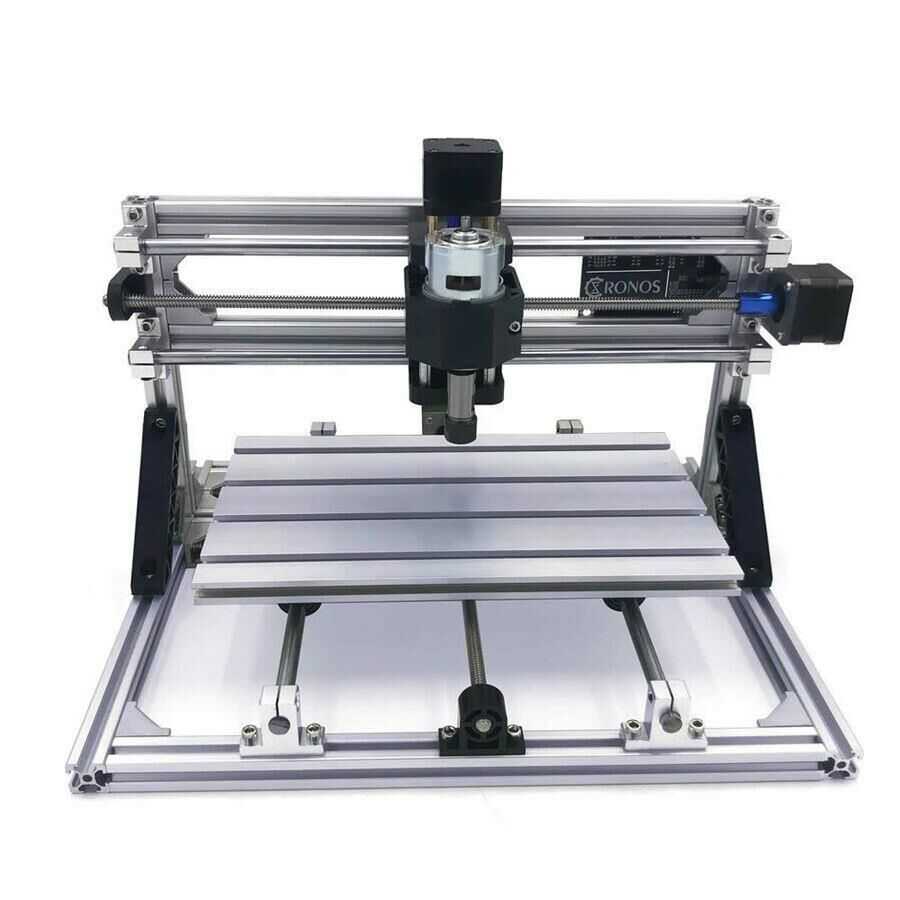

CNC3018; It is a CNC machine that includes a 2500mW burning laser and a spindle motor that you can use for laser cutting operations. With this product, which comes completely disassembled and is very easy to install, you will have your own CNC machine.
With its 2500mW burning laser and cutter motor; plastic, wood, pvc, pcb, mdf etc. It provides the opportunity to carve and shape many surfaces.
The product includes the necessary equipment for installation and use, including the power supply. A pair of protective glasses is given as a gift along with the product.
Technical Specifications:
Engraving machine working area: 300x180x45mm
Structure size: 400x330x240mm
Aluminum alloy plate area: 300x180mm;
Spindle motor: DC24V, max. 120 Watt, 10000 rpm;
Stepper Motor: input DC12V, 1.3A, 0.3Nm torque;
Power supply: input AC100-240V, 50/60Hz, 1.3A, output DC24V 5A;
Control software: GRBL control;
System available for PC: Windows XP/7/8/10 (does not support Mac OS); etc.
For laser engraving: wood, plastic, leather, bone, stone, paper, shell, etc.
