Raptorex Mini Silent CNC Machine - Cutting Bench

Ratings & Reviews (0)
Comment
Show More: CNC
Brand: Raptorex
Product Code: 3DP.CNC.01.000013
Stokta son 5 ürün
40,000.00 TL + VAT
VAT Included: 48,000.00 TL

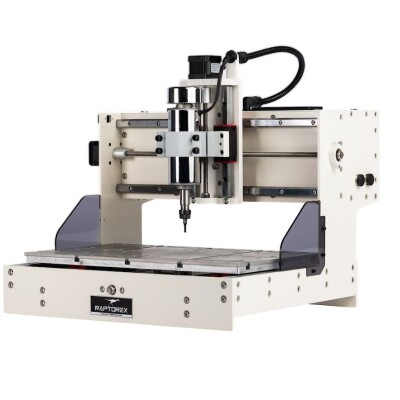

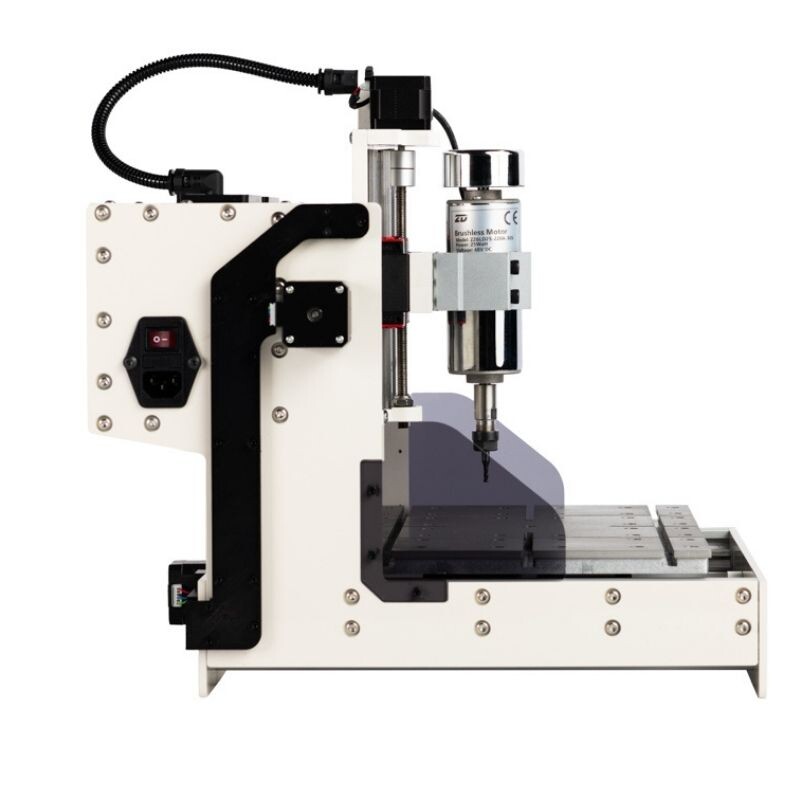

Raptorex Mini Silent CNC Machine - Cutting Bench

Raptorex Mini Silent CNC Machine - Cutting Machine is a CNC machine with a spindle motor.Working with an average of 55 db, it weighs only 20 kg. With its weight of 440mm x 440mm x 440mm, Raptorex Mini Silent easily fits any desktop. It produces very minimal noise compared to its efficiency and sensitivity.

You can process your parts with high precision. Spindle oscillation <0.02mm Axial repeatable error margin <0.07mm. You can complete your most sensitive works with high accuracy.

Raptorex Mini Silent, which produces an average of 50 db of sound when processing PCBs and 65 db when processing wood, is even quieter than a conventional vacuum cleaner.

You can easily process materials such as PCB, Plastic, Plexiglass, Wood and Leather.

Technical Specifications

  • Width x Length x Height: 440x440x440mm
  • Weight: 20Kg
  • Table Dimensions: 400x230mm
  • Usable Table Area: 320x210x120mm
  • Cuttable Part Height: 65mm
  • Total Installed Power: 816W
  • Spindle Motor: 400w DC 12000 rpm ER11
  • Stepper Drivers: TB6600
  • Stepper Motors: Nema 17
  • Control Card: Raptorex Brand 3 axis CNC Control Card
  • System and Connection: GRBL
  • Linear Moving System: Square Rail and Square Cars
  • Spindle and Nut: Backlash-free, precise shaft and nut system
  • Materials it can cut: Plastic, Plexiglass, Wood, Leather, PCB
  • Tolerance: 0.07mm
Weight(Kg)
8
