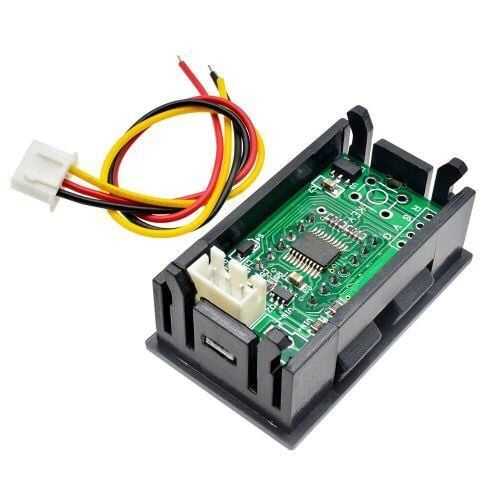

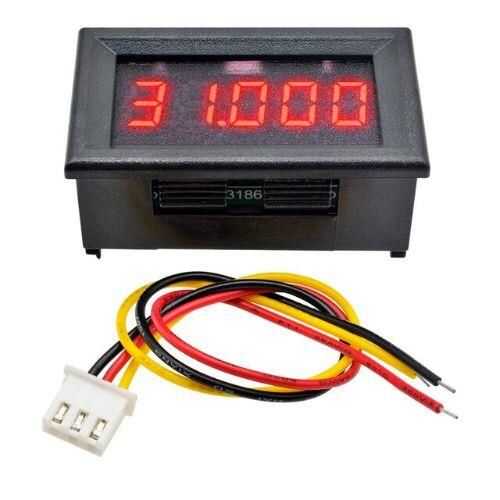

DC 0-33.000V High Precision Digital Voltmeter - Red
It is a high precision voltmeter with a digital display that allows you to measure DC 0-33V. A 5-digit voltage value appears on the screen. The device's own operating range is 5-12V. Therefore, care should be taken when making connections.
Specifications:
- Supply Voltage: 4-30VDC (Recommended is 5 ~ 12V)
- Display Color: Red
- Measurement Range: 0.000 ~ 33.000V DC
- Refresh Rate: 5 times per second
- Measurement Accuracy: ±0.3%
- Operating Temperature Range: -10° ~ 65°C
- Dimension: 48x29x22mm
- Weight: 30g
Wiring Diagram
