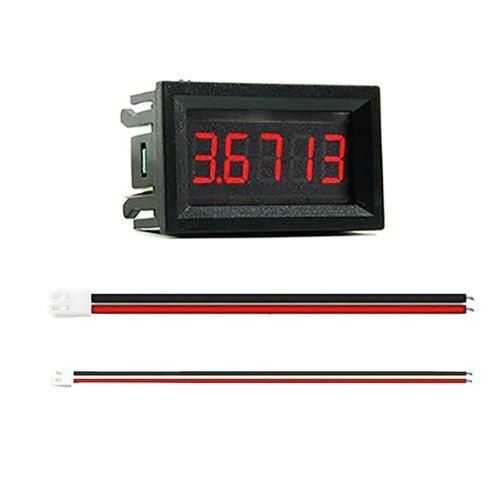

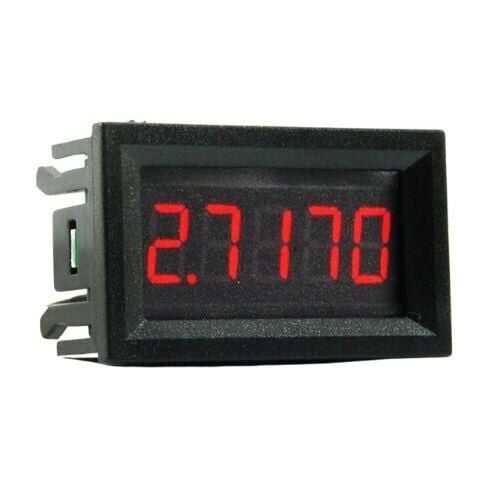

DC 0-50.0000mA High Precision Digital Ammeter - Red
It is a high precision ammeter with a digital display that you can measure between 0-50mA. A 5-digit voltage value appears on the screen. The device's own operating range is 5-12V. Therefore, care should be taken when making connections.
Specifications:
- Supply Voltage: 4-30VDC (Recommended is 5 ~ 12V)
- Display Color: Red
- Measurement Range: 0.0000 ~ 50.0000mA
- Reverse Polarity Protection
- Sampling Rate: 300ms
- Input Impedance: 10 mOhm
- Operating Current : ≈ 15mA
- LED Size: 0.36 inch LED
- Weight: 10g
Wiring Diagram
Size
