DC-DC 10-60V 400W Adjustable Voltage Step-down Module

Ratings & Reviews (0)
Comment
Show More: Step-Down Boards
Brand: Motorobit
Product Code: VRK.VLD.01.000078
Stokta 10+ ürün
540.00 TL + VAT
VAT Included: 648.00 TL
Like

Out Of Stock

Notify me when its in stock

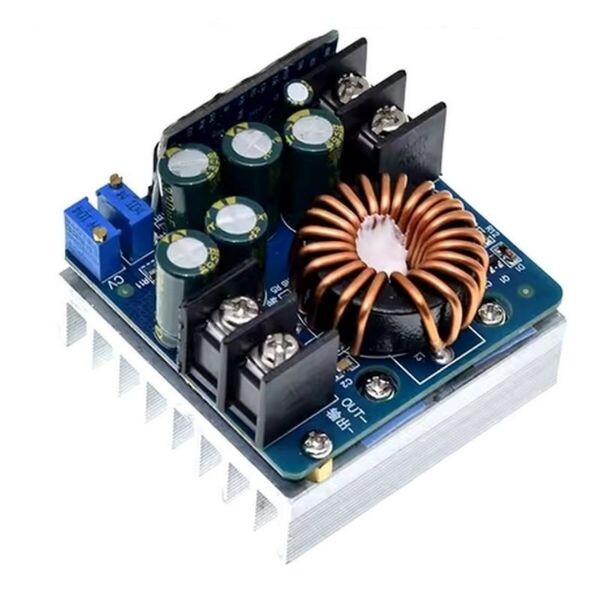

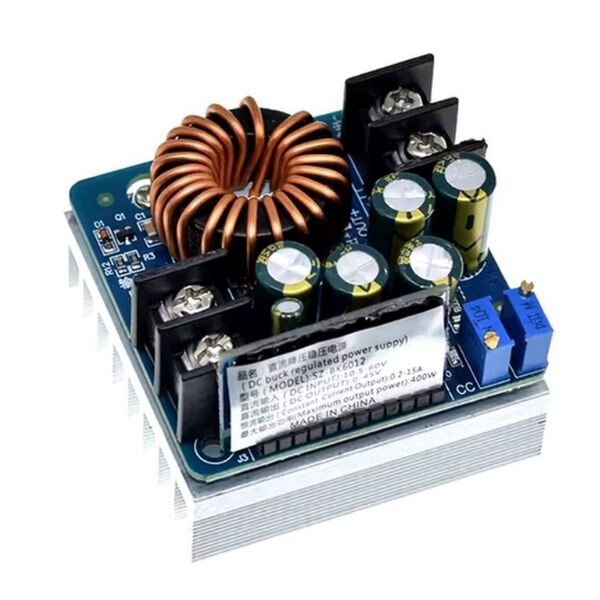

DC-DC 10-60V 400W Adjustable Voltage Step-down Module

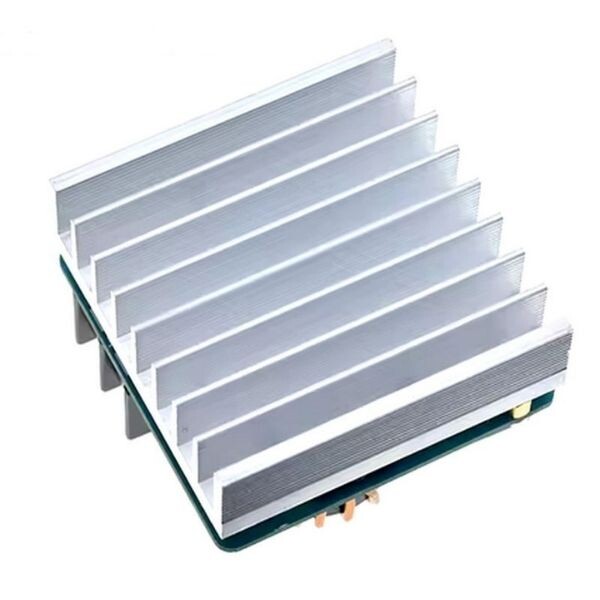

The DC-DC 10-60V 400W Adjustable Voltage Step-down Module can be used to obtain adjustable output voltage ranges from 0 to 45V. The module provides a wide current output range of up to 15A. For continuous high power output, you need to use a cooling fan on the heat sink.

You can adjust the output current with the CC trimpot on the product.

The module has a built-in 3296 multi-turn potentiometer for high-accuracy voltage and current regulation to ensure good stability. Since the voltage and current can be adjusted, it can be used for battery charging, LED driver power supply, vehicle power supply, etc. provides ease of use in multiple applications such as.

Technical Specifications:

  • Input Voltage: 10.5V - 60V DC
  • Output Voltage: 0V - 45V DC
  • Output Current: 15A
  • Efficiency: 95% (24V - 12V, 20A)
  • Output Ripple: ≤50mV
  • Wiring Method: Terminal
  • Dimensions: 60x60x46mm

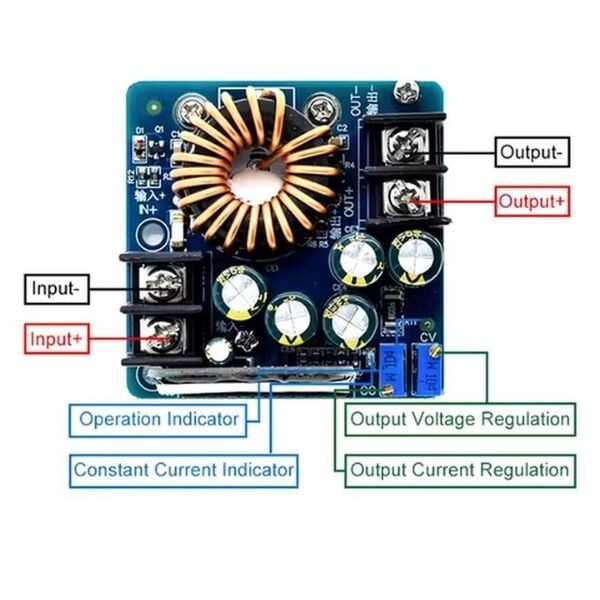

Connection diagram:

VO+: Output positive
VO-: Output negative
+IN: Input positive
-IN: Input negative
CV: Output voltage adjustment
CC: Output current adjustment


How to adjust the module:

  • When the module output voltage cannot be adjusted (output voltage is always equal to the input voltage), Please adjust the potentiometer counterclockwise until it works 20 turns (20 turns) or more.
  • For CLOCKWISE INCREASE, CLOCKWISE Turn it in the OPPOSITE DIRECTION to DECREASE.
  • When adjusting the potentiometer, please use a multimeter to monitor the voltage.
Weight(Kg)
0.05
