LM2596 Multi-Output Power Supply Module 3.3V/5V/12V/ADJ

LM2596 Multi-Output Power Supply Module 3.3V/5V/12V/ADJ

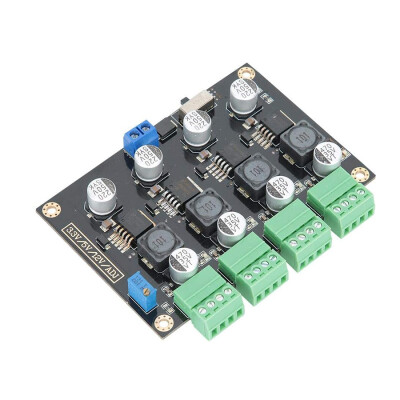

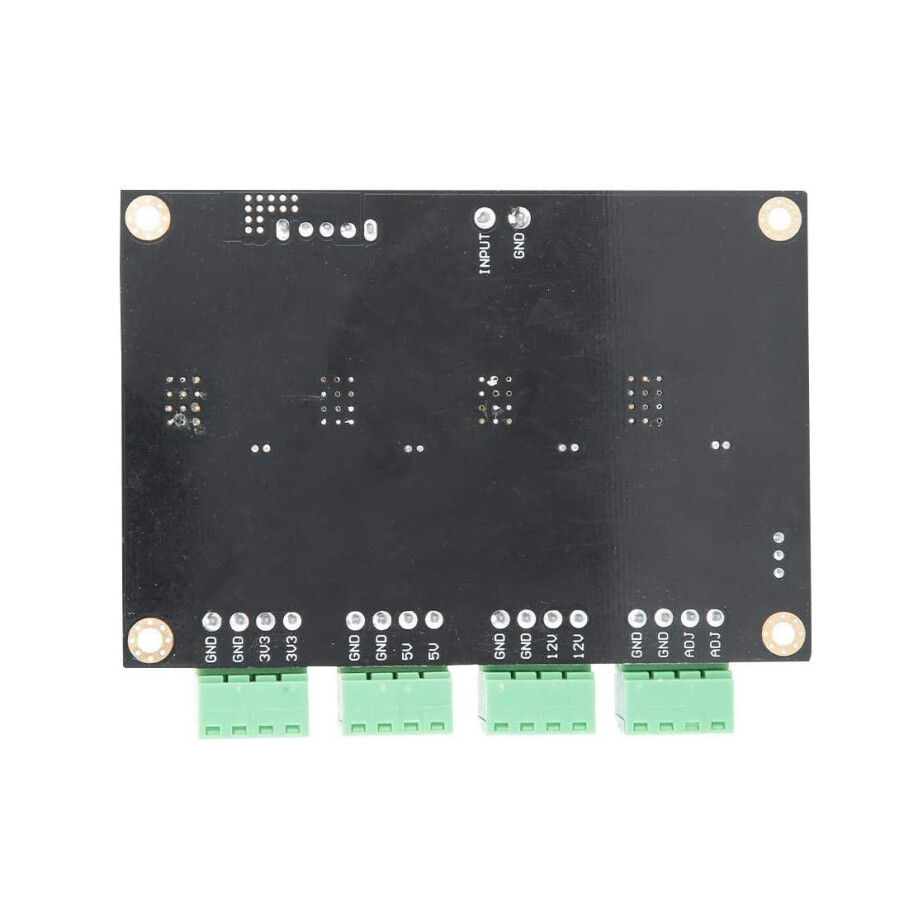

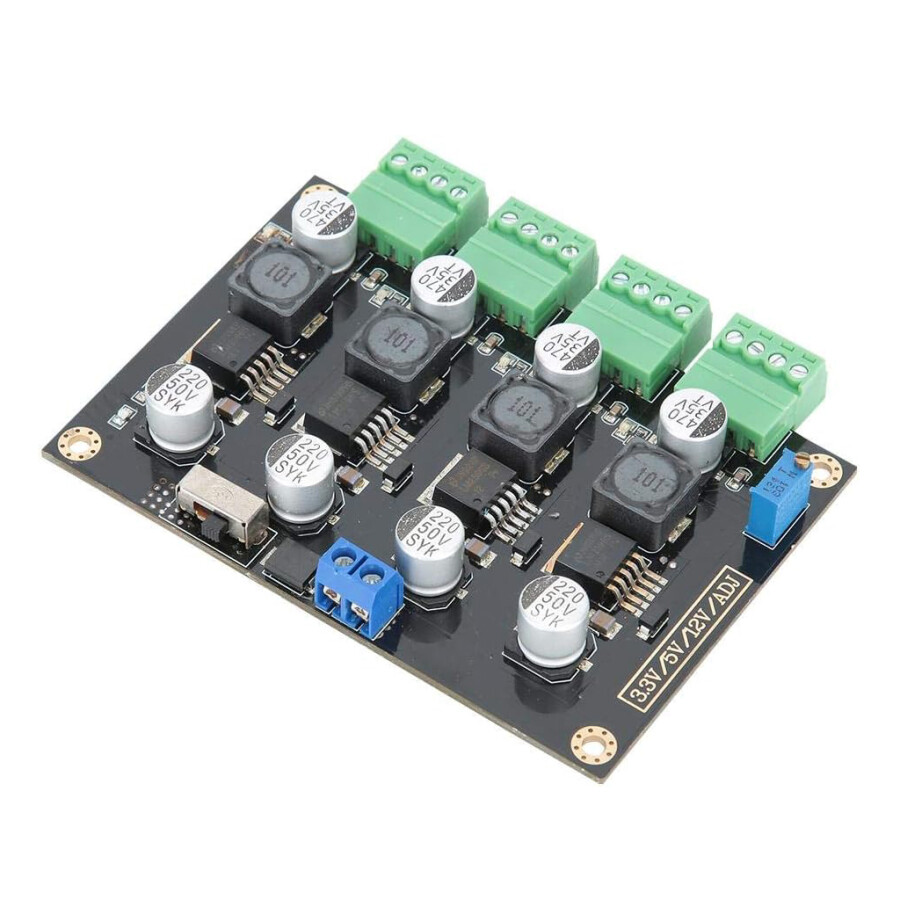

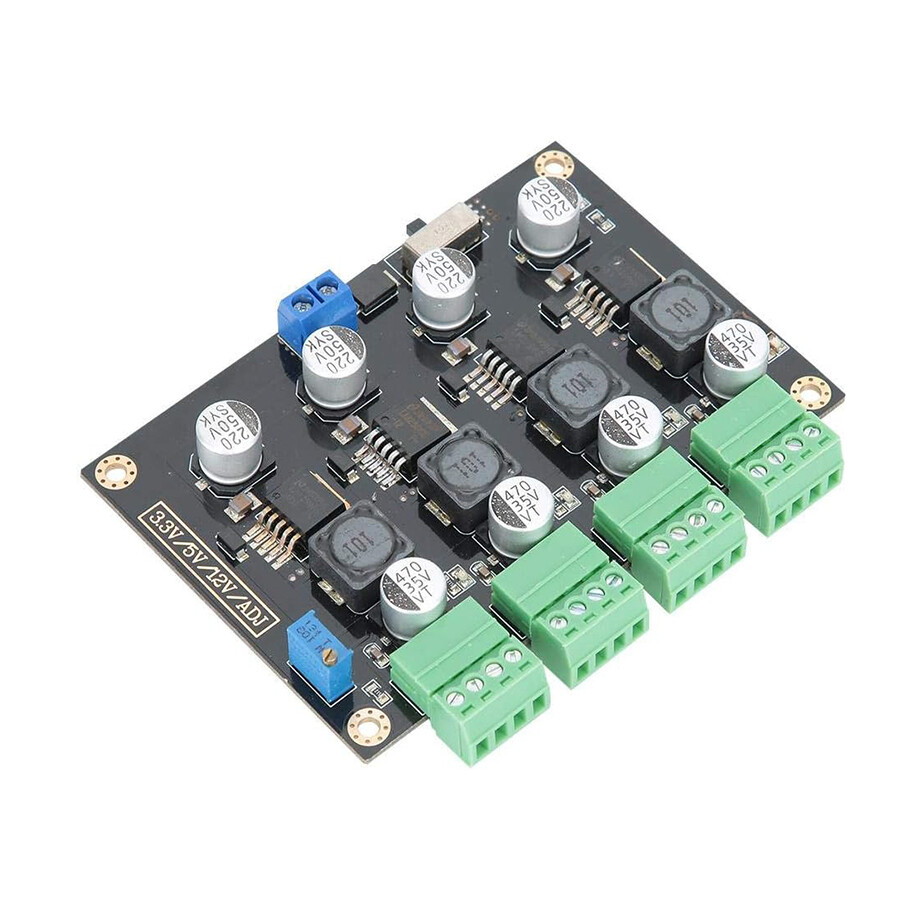

LM2596 Multi-Output Power Supply Module 3.3V/5V/12V/ADJ, this voltage converter provides 3 x fixed output voltages - 3.3, 5V and 12V and 1 Adjustable voltage output. All outputs can operate with a single input power supply from 13 to 32V DC. It is a great option to generate different power supply voltages from a single board. This single module can replace up to 4 separate power supply boards.

This buck converter uses the LM2596 step-down power management monolithic integrated circuit switching voltage regulator, which can output 3A drive current on each channel and has good linearity and load regulation characteristics. This module has 4 LM2596 integrated circuits, which can output four sets of power supply at the same time: 3.3V, 5V, 12V and ADJ.

Features

• Input voltage: 13V-32V
• Output voltage: Multiple 33V, 5V, 12V, ADJ
• Output current: 3A (MAX)
• The maximum single current of the module is 3A, and the total current does not exceed 5A
• Working frequency: 150KHz
• Output ripple: 15mV
• Dimensions: 101x68mm
• Reverse connection protection
• Low noise, low ripple: input and output power supply with Positioning hole indicator light
• Applications: Industrial automation control, LED lighting, industrial control equipment, communication equipment power equipment, instrumentation
