SY8205 7-30V to 5V 5A Voltage Reducer - Servo Driver Power Board

SY8205 7-30V to 5V 5A Voltage Reducer - Servo Driver Power Board

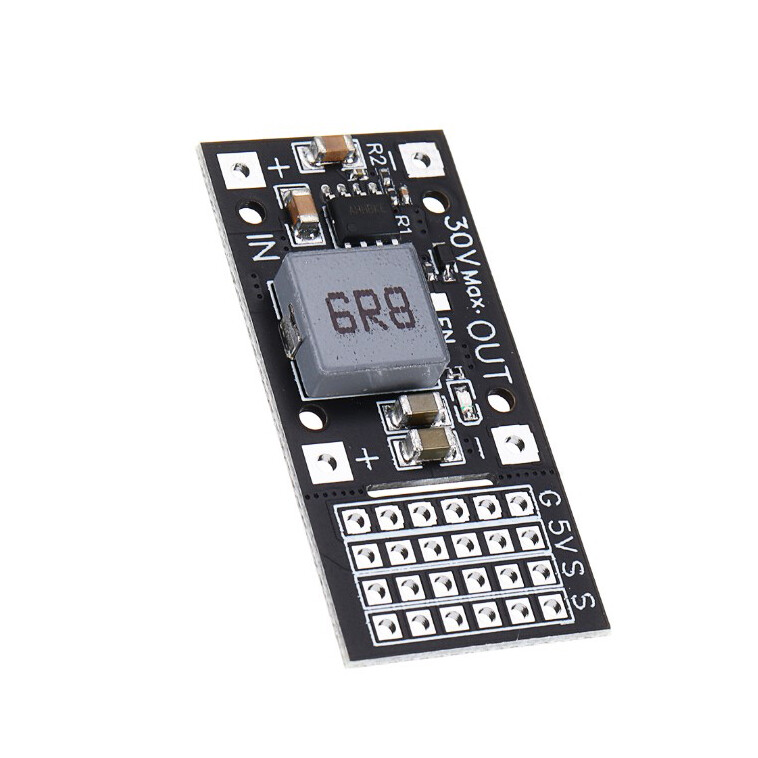

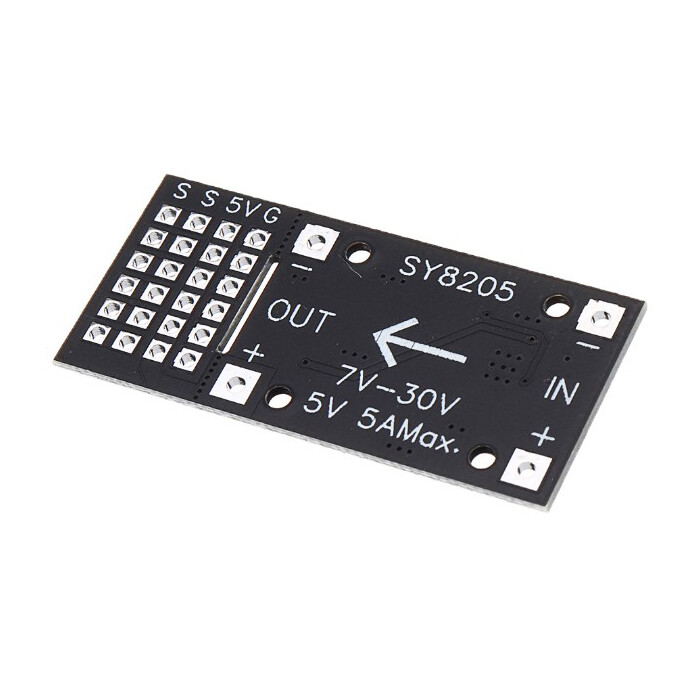

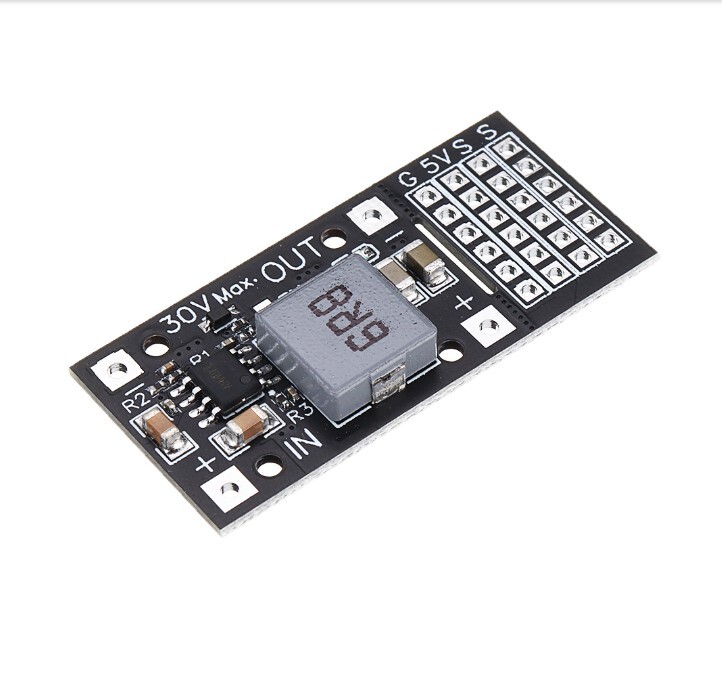

SY8205 7-30V to 5V 5A Voltage Reducer - Servo Driver Power Board is a compact DC-DC power supply module that can accept a wide input voltage range of 7 to 30V (<24V recommended) and has high current output capability. The module will reduce the input voltage to a stable and steady 5V output. Input and output connections are made via large solderable pads and also include a pad grid in an arrangement for conveniently connecting multiple servos (maximum number of servos will depend on power requirements of each servo) or just multiple 5V devices.

Features

• Integrated: SY8205
• Module type: SY8205 + servo pads
• Input voltage: 7V to 30V (<24V recommended)
• Output voltage: 5V
• Maximum output current (peak or with active cooling @ 5V): 5A
• Maximum output current (continuous @ 5V): 3.7A
• Dimensions: 43.5 (servo 31.5) x 20.2 x 5.0 mm with pads removed
