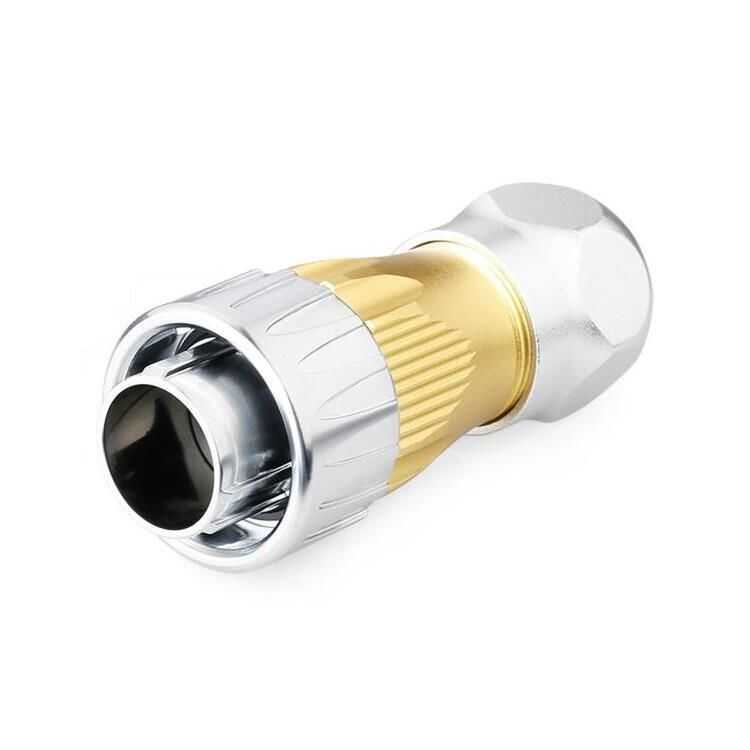

DH-24-C/RJ45/015/PE-43-001 Waterproof Ethernet Connector - Male
RJ45 series connectors It features multi-style connection modes such as 1/4 bayonet connection and quick unplug for harsh environments. These connectors have a protection system with high-frequency noise immunity and electromagnetic interference protection, and the protection level is IP65 waterproof and dustproof. Compliance with EIA568B and level D of ISO/IEC11801 or CAT 3e standard, CAT5e compatible RJ45 connectors, data transfer rate reaches 10 GBit/s.
A fast and secure It is RJ45 cable plug protection suitable for data connection. Simple slot for attached RJ45 cable (RJ45 cable not included).
Technical Specifications
IP65/67 rating when connected
-
Connector Type: RJ45
-
Cable Connection - 24-26 AWG
-
Rated Current - 1.5 Amperes
-
Operating Voltage - 42V
-
Contact Resistance - <30mOhm
-
Withstand Voltage - 1000V
-
Ingress Protection - IP65/67
-
Operating Temperature - -40 C - 80 C
-
Body Material - High Performance Plastic
DH24 Waterproof Connector Datasheet
