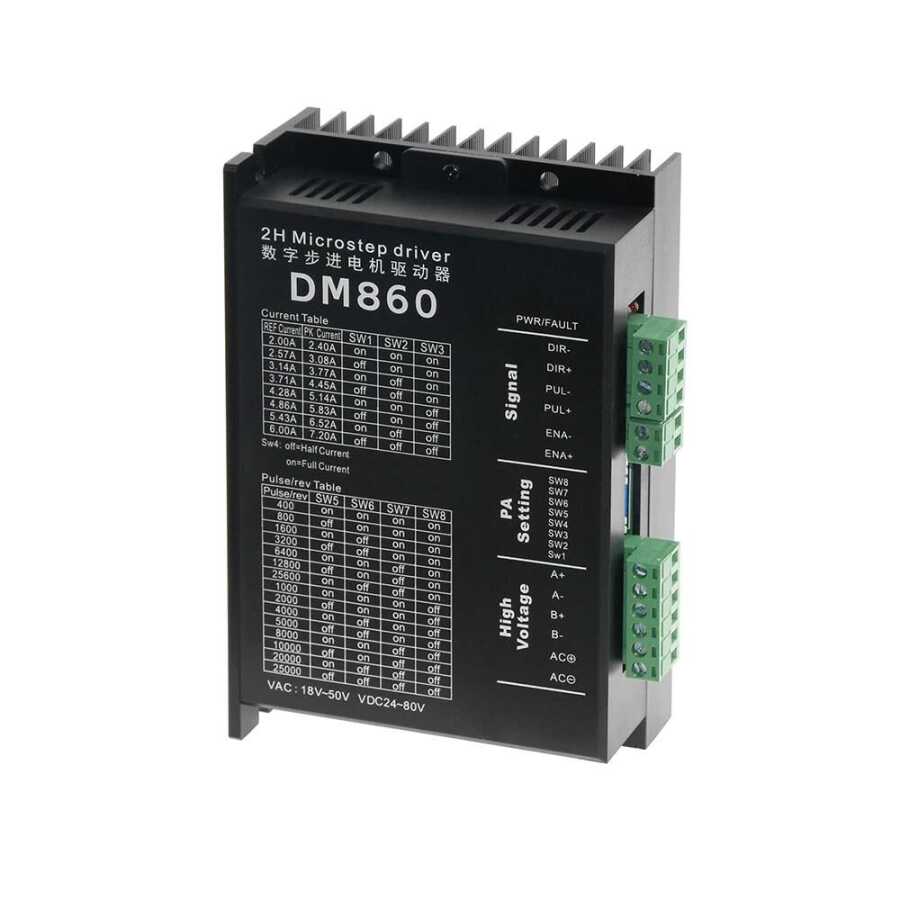

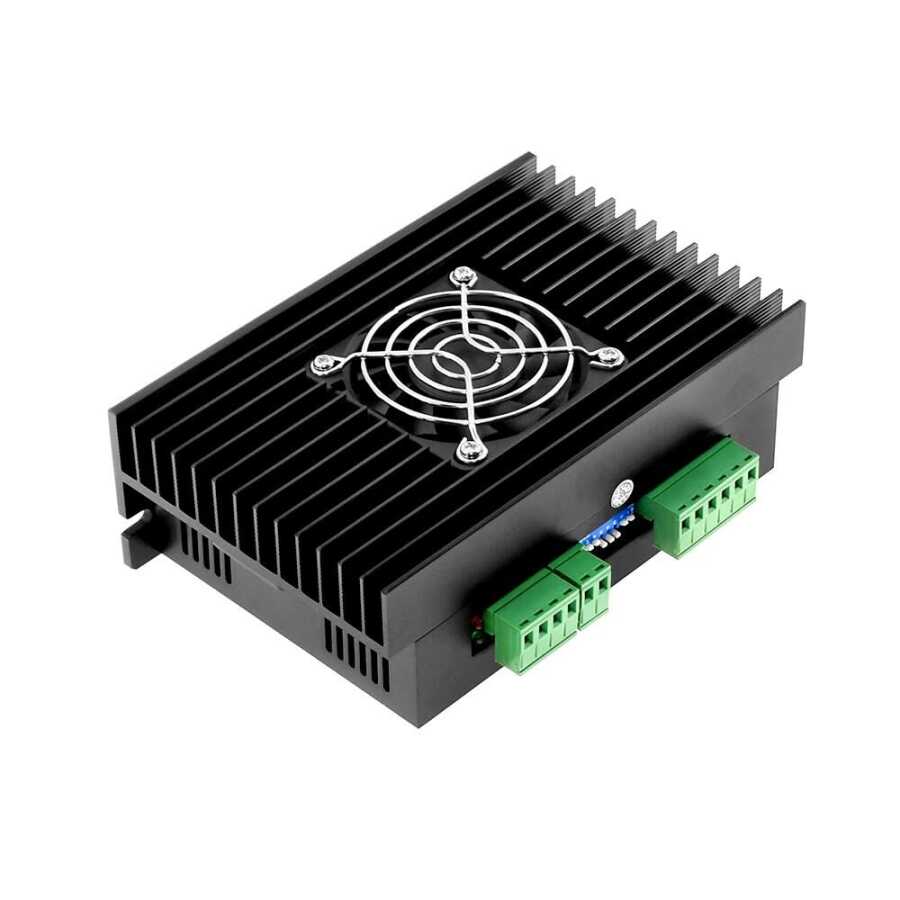

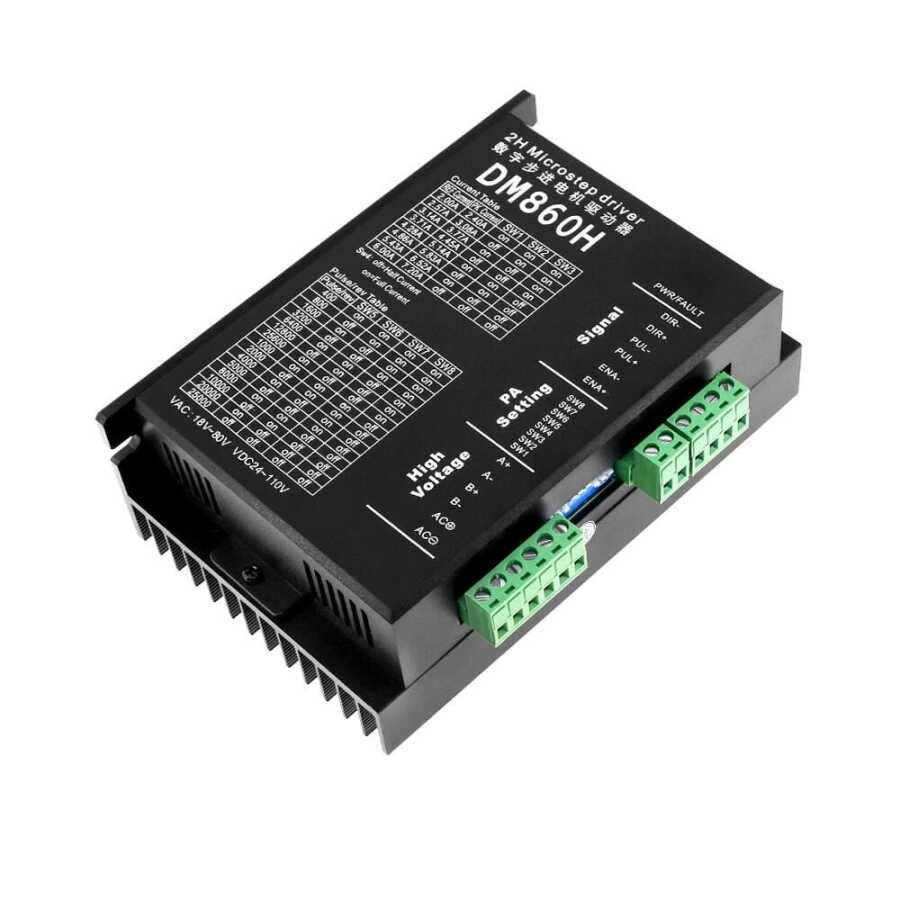

DM860H 7.2A Stepper Motor Driver

Ratings & Reviews (0)
Comment
Brand: Motorobit
Product Code: MSK.STP.01.000008
Stokta 10+ ürün
1,196.80 TL + VAT
VAT Included: 1,436.16 TL

DM860H 7.2A Stepper Motor Driver


High performance stepper motor driver that you can use with stepper motors such as Nema23 or Nema34, up to 7.2A. With the switches on it, you can make 8 different amperage settings with resolution differences of approximately 0.5A. Likewise, it is possible to adjust pulse/rev between 400-25000 via switches.


Technical Specifications:

  • 4 wires , can drive 8-wire two-phase stepper motor
  • Voltage input range: 24 ~ 110 VDC or 18 ~ 80 VAC
  • Maximum current: 7.2A, resolution: 0.1A
  • Subdivision range: 400 ~ 25000ppr
  • Signal input: differential/single-ended, pulse/directional or double-pulse
  • Impulse response frequency: 200KHz
  • Built-in micro segment
  • Power-on parameter automatic adjustment function
  • Precise current control greatly reduces motor heating
  • Current automatically halved when stopping
  • Optically isolated signal input, strong anti-interference ability
  • Overvoltage, overcurrent and other protections
Product Dimensions: 150x97.5x27.5m

Weight(Kg)
0.4
