DPS-5015 50V 15A Programmable Power Supply - With Bluetooth Communication
DPS-5015, This programmable voltage control module with constant voltage and current combines analog integration and digital control functions in a single device. The device has internal memory and a 1.44" (3.7 cm) color OLED display, so you can view and save all relevant data. All necessary settings are made using three buttons and a potentiometer.
High precision and the compact design allows for a wide range of applications. In addition to the high-quality components, communication interfaces are also provided via optional USB or BT wireless modules, which enable remote control of the power supply and access to more data. It allows access as a CSV file.

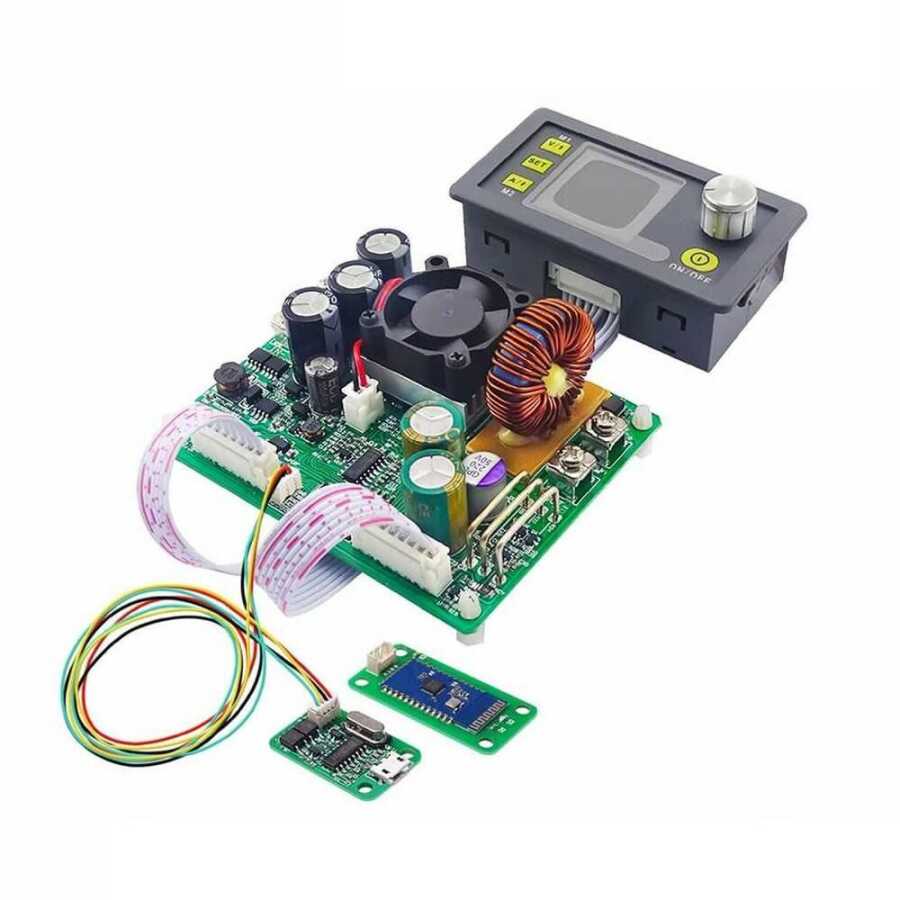

This model has a Bluetooth and USB communication module, so it can be used with a computer or phone.
Specifications:
- Input voltage: 6 - 60 V (DC)
- Output voltage: 0 - 50 V
- Output current: 0 - 15 A
- Output power: 750 W

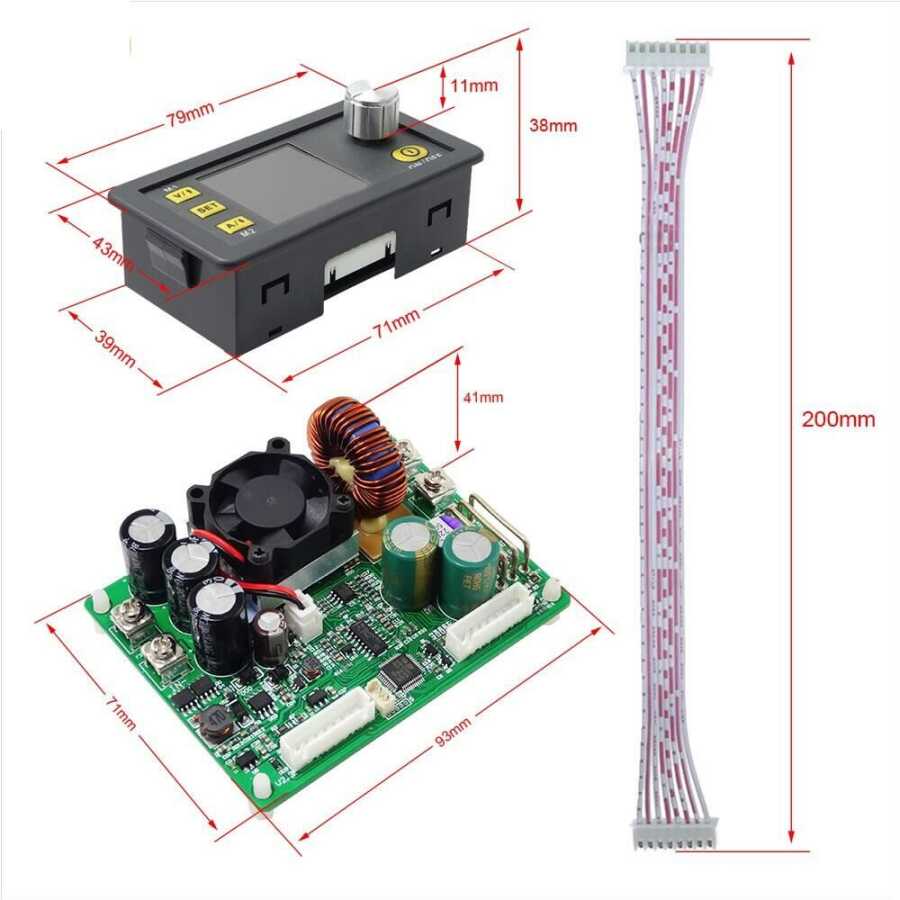

Dimensions:
- Module: 91 x 67 x 40 mm
- Screen: 80 x 42 x 45 mm
- Weight: 152 g
