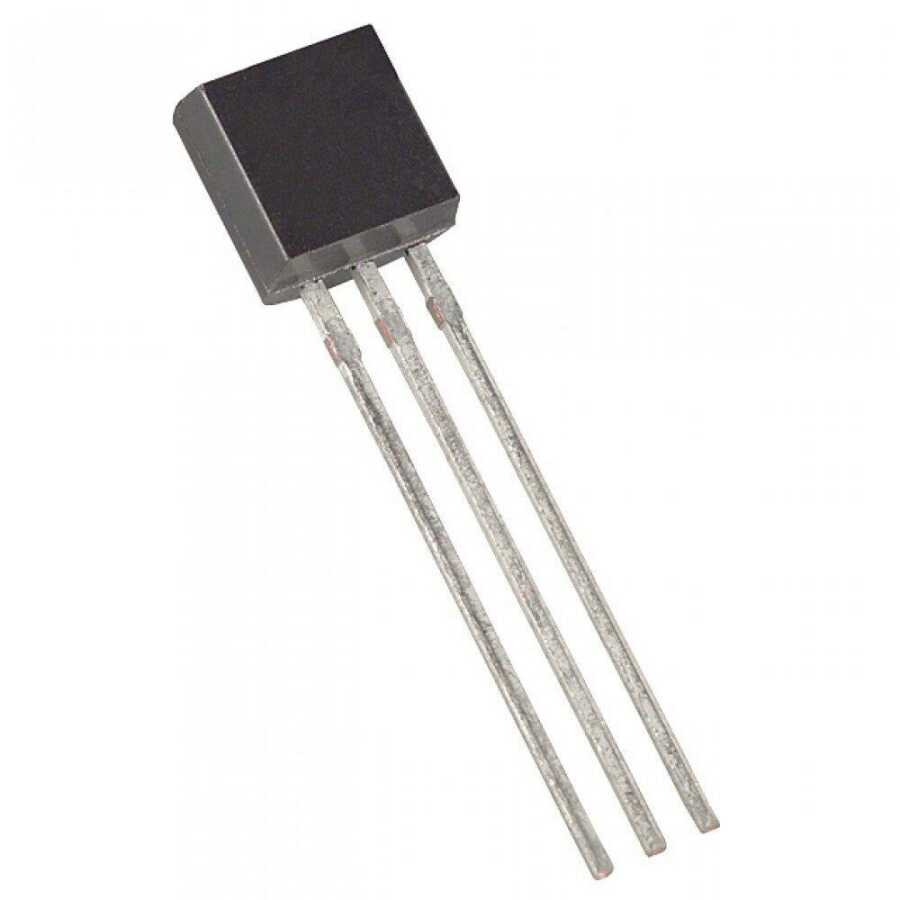

DS1820 PR-35 Temperature Sensor Integrated
DS1820 Digital Thermometer provides 9-bit temperature readings that indicate the temperature of the device. Information is sent to the DS1820 over a 1-Wire interface, so only one wire (and ground) needs to be connected from a central microprocessor to the DS1820. The power to read, write and perform temperature conversions can be obtained from the data link itself, without the need for an external power source.
Usage Areas
Thermostatic Controls
Industrial Systems
Consumer products
thermometers
Thermal Sensitive Systems
| Series |
DS1820 |
| Supply Voltage |
2.8V - 5.5V |
| Output Type |
1-Wire |
| Resolution |
9 Bit |
| Accuracy |
+/- 5 C |
| Number of Pins |
3 Pin |
| Package Type |
PR-35 |
