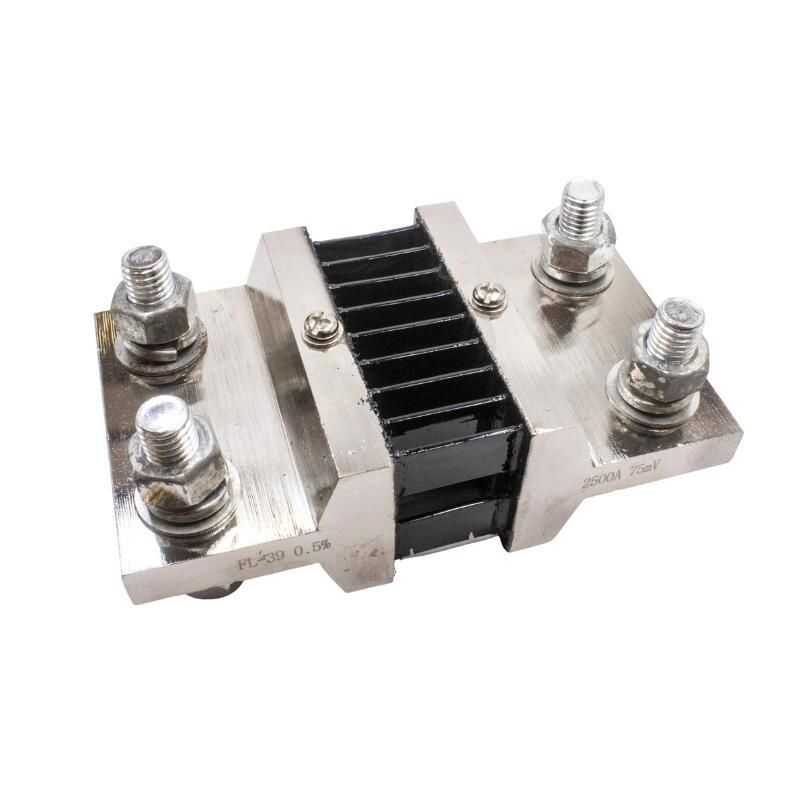

FL-2 2500A 75mV Shunt Resistor

FL-2 2500A 75mV Shunt Resistor; It is used to measure currents that could damage an ammeter. An ammeter is actually a voltmeter that reads millivolts. It cannot be used without a shunt resistor at high currents. If you connect it to the circuit, it will burn immediately, so it is used with a shunt resistor.



Shunt Resistors generally have a small, well-defined resistance so as not to affect the current they are measuring. A shunt resistor typically differs from a regular resistor in that it has one or more metal strips of two large terminals associated with them. The resistance of a metal is inversely proportional to its cross-sectional area, so a shunt resistor shows more stripes, lowering the resistance.



For all types of shunt resistors click here.



Specifications:

• Voltage: 75mV
• Rated current: 2500A
