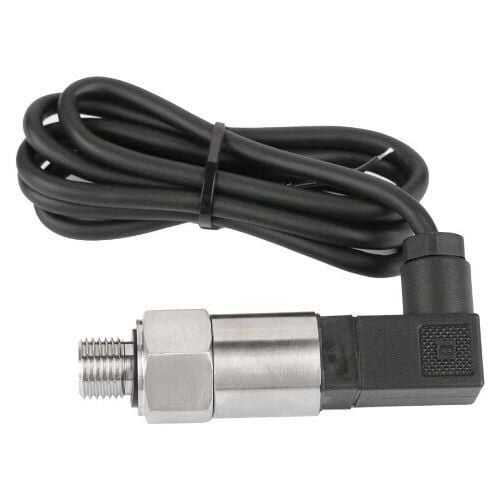

G1/4 Stainless Steel Water/Oil/Gas Pressure Sensor - 1 Mpa
G1/4 Stainless Steel Water/Oil/Gas Pressure Sensor - 1 Mpa.Overvoltage It has a stainless steel body with protection function. It is widely used to measure pressure in water/oil/gas tanks.
0.01 Mpa: Corresponds to approximately 1.450 PSI.
Features
- Supply Voltage: 8-32VDC
- Output Signal: 4-20mA
- Pressure Range: 0 - 1 Mpa
- G1/ 4

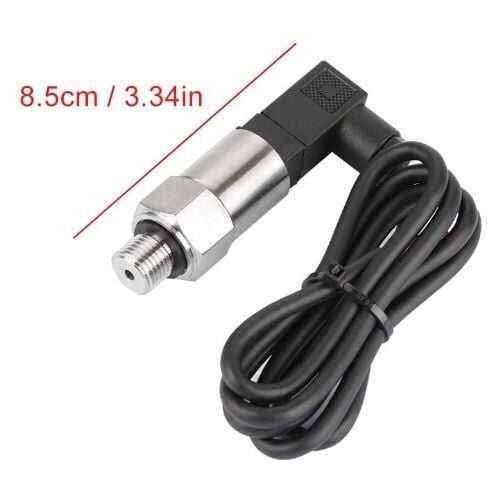

- Dimension: 85x25x25mm
- Weight: 113g (Approx.)
Wiring Diagram
.png)
