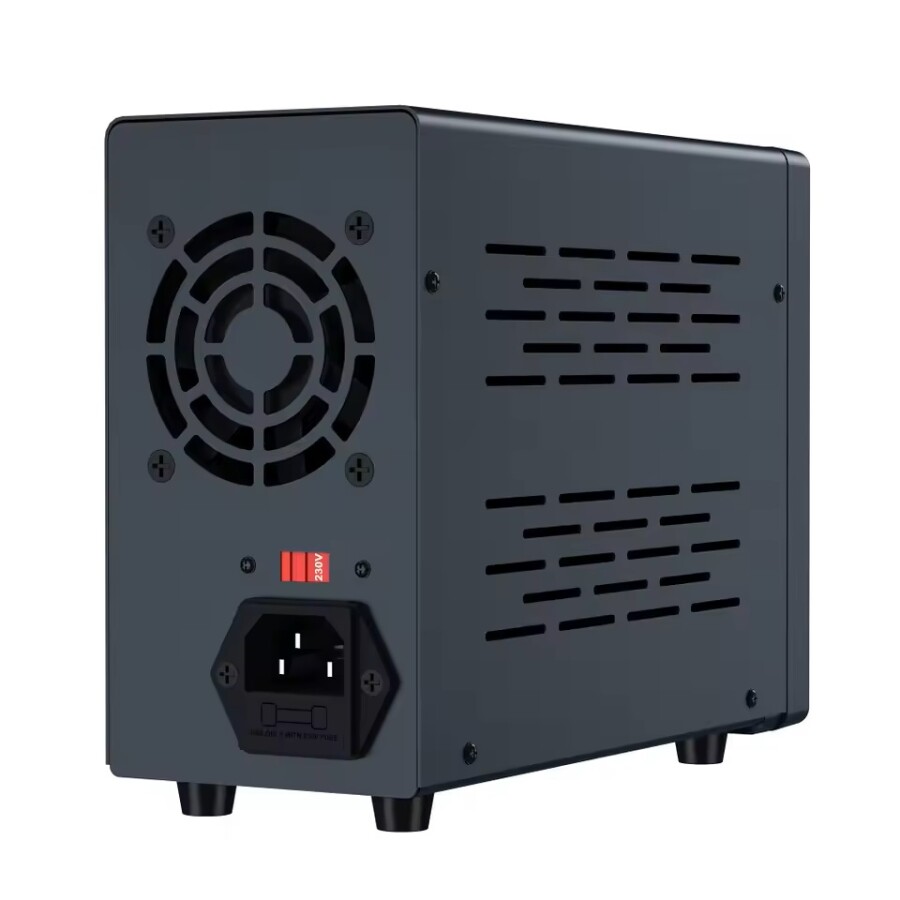

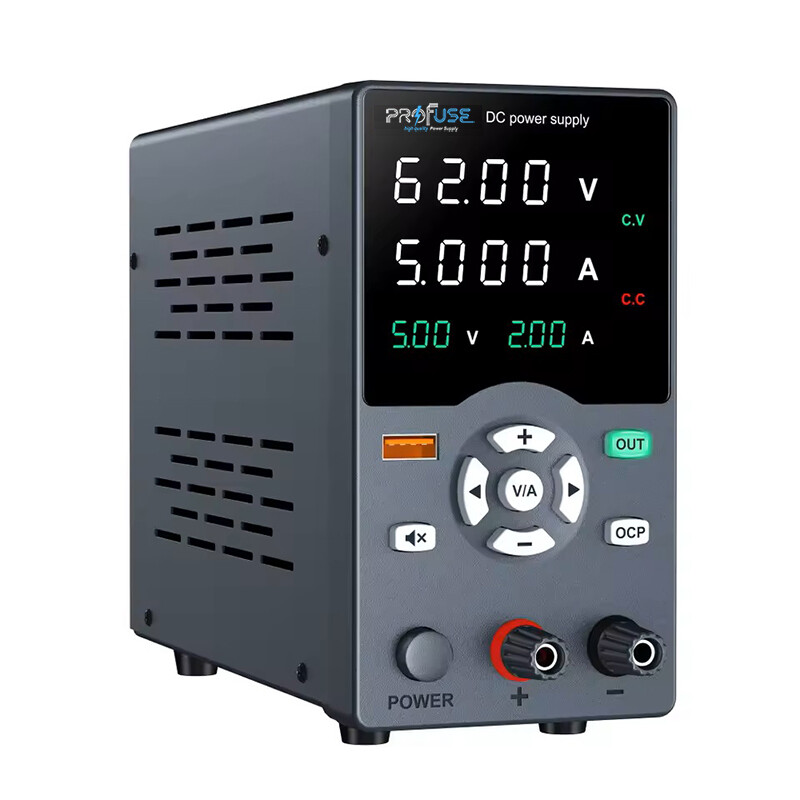

GC605H 62V 5A Adjustable DC Power Supply

GC605H 62V 5A Adjustable DC Power Supply

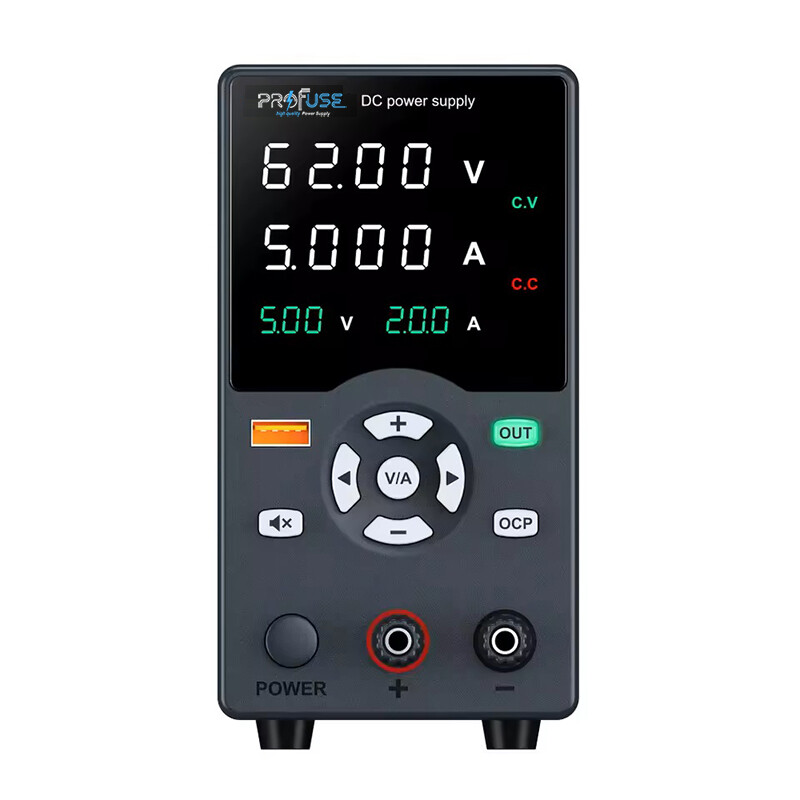

GC605H is a high precision DC power supply that can provide up to 5A output between 0-62V. There are buttons on the product that allow you to adjust voltage and current. + - buttons increase and decrease the value. Right and left arrows are used to select decimal values.

The product does not provide direct output when it is on. The output button must be pressed for output. The product provides output when the green light is on. In addition, there is an OCP short circuit overcurrent protection button on the product. OCP is a function that protects against overcurrent in short circuit situations.

GC3010H is lighter than old-style power supplies thanks to its modern design and circuit structure. It also has a USB output that allows charging phones and similar 5V devices. The voltage and current at the USB output are displayed at the bottom of the screen using the volt-ampere output indicator.

Features:

• Model: GC605H
• Input: 220V AC (socket)
• Output Voltage: 0-62.00V
• Current: 0-5.00A
• Resolution: 0.01V / 0.001A
• Accuracy: 0.5%±20
• OVP: High Voltage Protection
• OCP: High Current Protection
• OPP: High Power Protection
• OTP: High Temperature Protection
• SCP: Short Circuit Protection
• Dimensions: 190x80x145mm
• Weight: 1.15kg

Product Contents:

• GC605H Power Supply
• AC Power Cord
• English User Manual
• 2 Pcs Crocodile Probe Cable
