HC05 Bluetooth DIP - Serial Module Card
HC05 Bluetooth Module can be connected to any device that supports the Serial Port Standard - SPP protocol and can be used in wireless communication projects. It is a Bluetooth V2.0 + EDR 3Mbps modulation with a 2.4GHz radio transceiver. It has a communication distance of 10 meters in open areas.
Can be configured as Master, Slave or Loopback modes.
HC06 Bluetooth Module only in Slave mode available.
Other

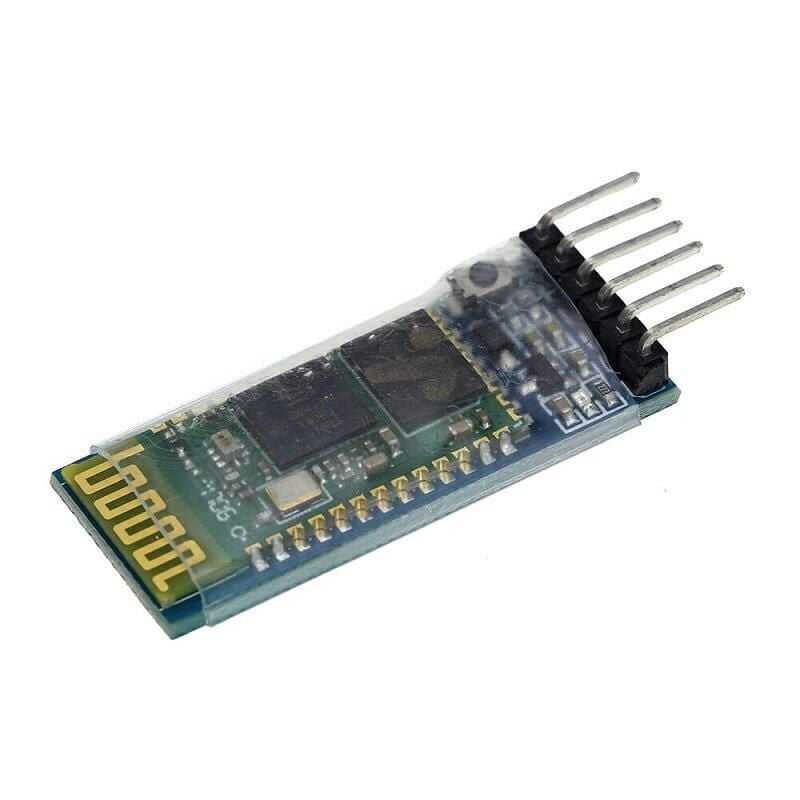

HC05 Bluetooth module, its pins are outside. In this way, connections can be made easily with jumper cables. It provides ease of use with breadboard and prototyping in Arduino projects.
- Bluetooth Protocol: Bluetooth 2.0+EDR(Enhanced Data Rate)
- 2.4GHz communication frequency
- Sensitivity: ≤ -80 dBm
- Output Power: ≤+4 dBm
- Asynchronous Speed: 2.1 MBps/160 KBps
- Synchronous Speed: 1 MBps/1 MBps
- Security: Authentication and Encryption
- Operating Voltage: 1.8-5V(Recommended 3.3V)
- Current: 50 mA
- Dimensions: 43x16x7mm
You can use it in Arduino and Raspberry Pi projects, robotics and academic projects.

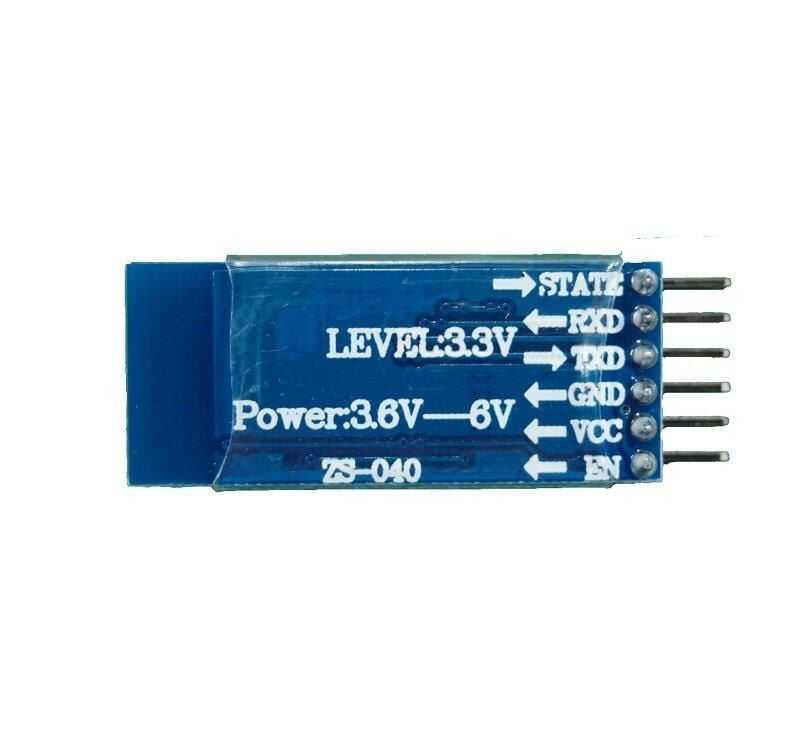

Since RX and TX pins are 3.3V You can use the link in the picture to use it on Arduino or 5V systems.
Arduino Connection Diagram
