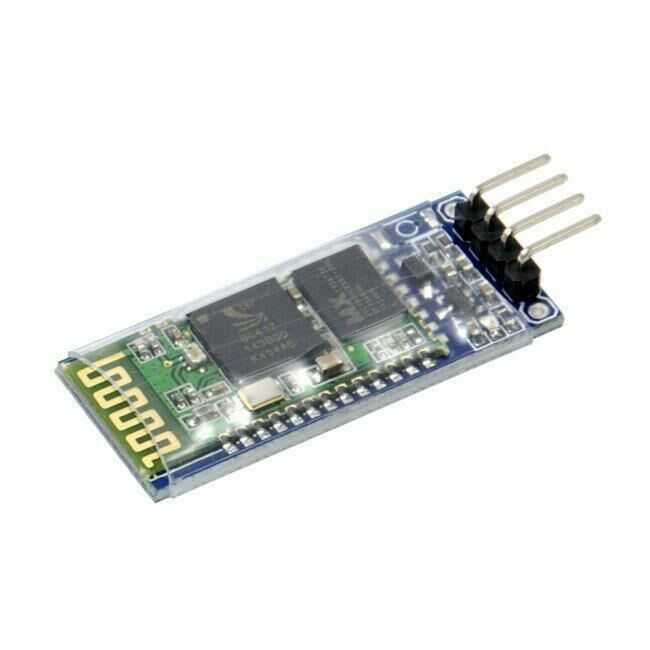

HC06 Bluetooth DIP

HC06 Bluetooth Module can be connected to any device that supports the Serial Port Standard - SPP protocol and can be used in wireless communication projects. It is a Bluetooth V2.0 + EDR 3Mbps modulation with a 2.4GHz radio transceiver. It has a communication distance of 10 meters in open areas.

HC05 Bluetooth Module can be used in Master, Slave or Loopback modes, while the HC06 Bluetooth Module can only be used in Slave mode.

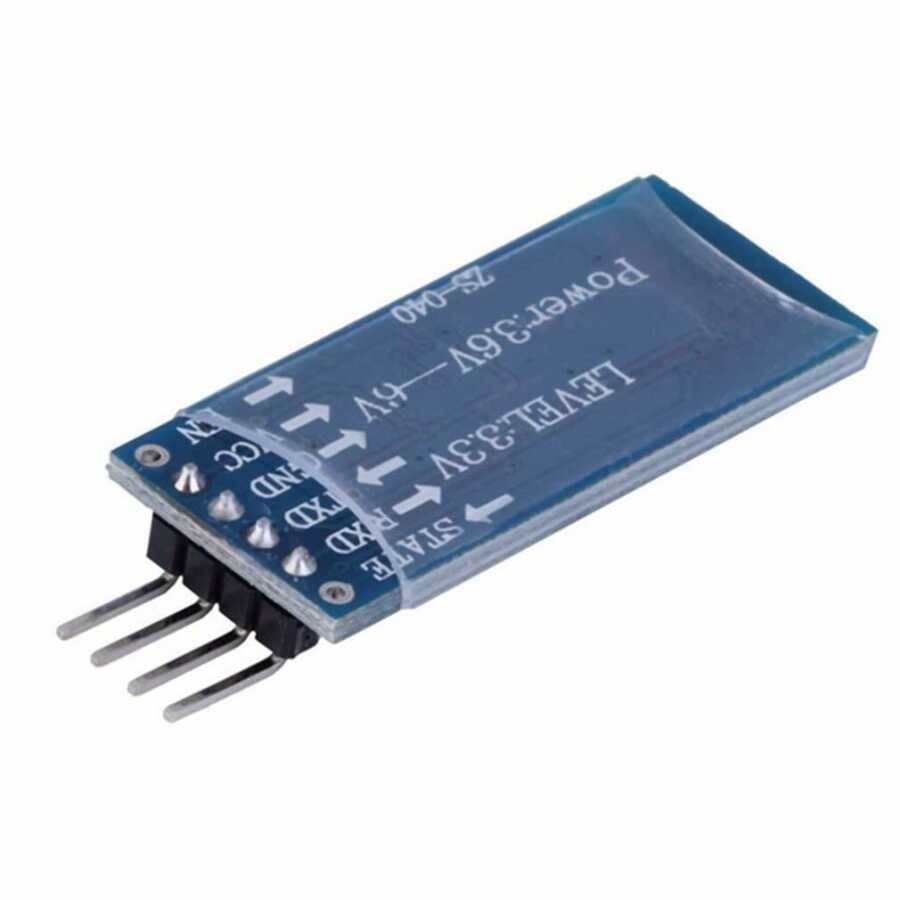

Other HC06 Bluetooth module, its pins are outside. In this way, connections can be made easily with jumper cables. It provides ease of use with breadboard and prototyping in Arduino projects.



• Bluetooth Protocol: Bluetooth 2.0+EDR(Enhanced Data Rate)
• 2.4GHz communication frequency
• Sensitivity: ≤-80 dBm
• Output Power: ≤+4 dBm
• Asynchronous Speed: 2.1 MBps/160 KBps
• Synchronous Speed: 1 MBps/1 MBps
• Security: Authentication and Encryption
• Operating Voltage: 1.8-5V(Recommended 3.3V)
• Current: 50 mA
• Dimensions : 43x16x7mm

You can use it in Arduino and Raspberry Pi projects, robotics and academic projects.

Since RX and TX pins are 3.3V, you can use the connection in the picture to use it in Arduino or 5V systems.
