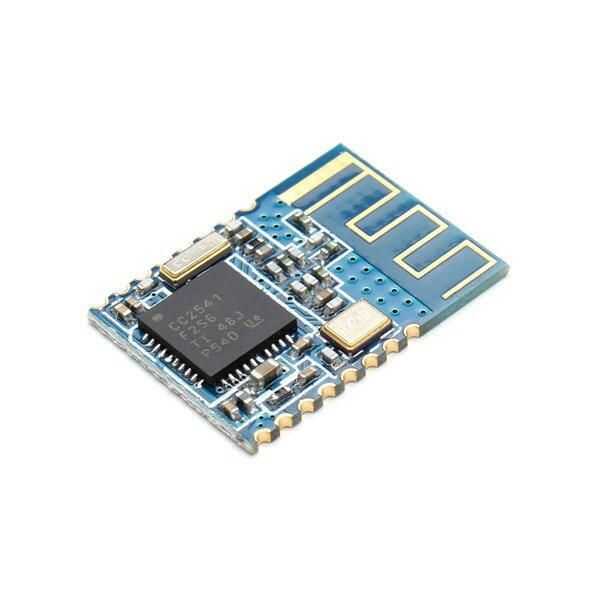

HM-11 Bluetooth Module

It is a low power consumption SMD Bluetooth module using the TI CC2541 chip. The module allows you to quickly and easily set up BLE communications using the AT command with the manufacturer's pre-programmed firmware. Supports BLE communication with iPhone, iPad and Android 4.3.

Supports AT command. Users can set the operating mode (master/slave), baud rate, device name, password password, etc.

It is very suitable for your projects that require ultra-low power consumption.



• Bluetooth protocol: Bluetooth Specification V4.0 BLE
• Operating frequency: 2.4 GHz ISM band
• Interface path: a serial port
• 30-meter open environment can realize inter-module communication
• To send and receive byte limit between modules
• Modulation method: GFSK (Gaussian Frequency Shift Keying)
• Transmit power: - DBM, 23-6 DBM, 0 DBM, 6 DBM, can be changed by AT command
• Use TI CC2541 chip, 256 KB configuration space, support AT command, user, agile by matching parameters such as role (master, slave mode) and serial port baud rate, name of equipment, passwords.
• Power supply: + 3.3 VDC 50 mA
• Operating temperature: - 5 ~ + 65 centigrade
• Default baudrate: 115200
• Current drawn during transmission: 15mA
• Current drawn during receiving: 8.5mA
• Dimensions: 13.5 x 18.5 x 2.3mm
