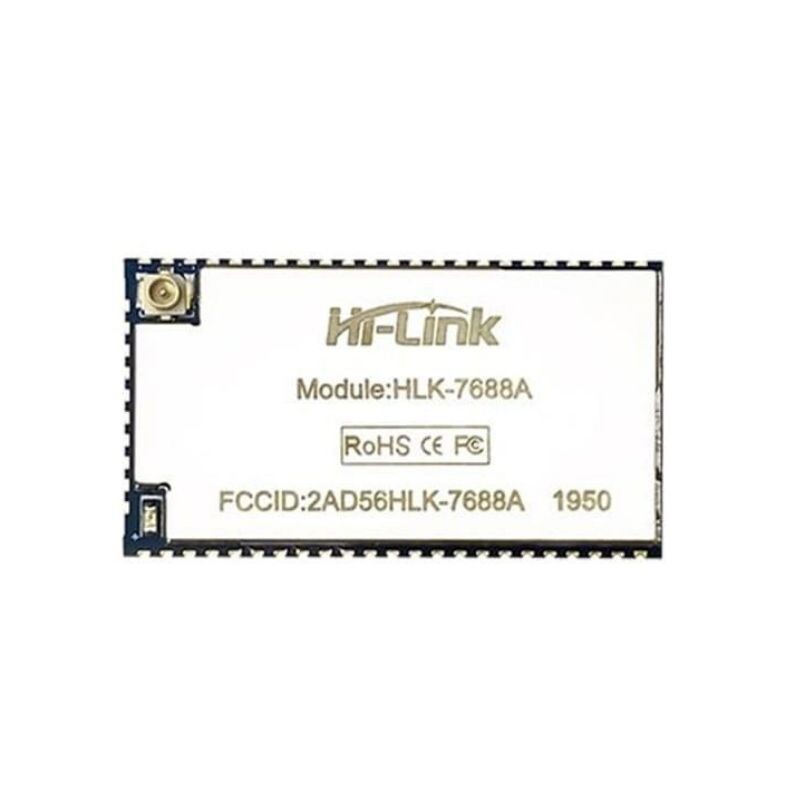

HLK-7688A Openwrt Wireless Ethernet WIFI Module

HLK-7688A Openwrt Wireless Ethernet WIFI Module

HLK-7688A Openwrt Wireless Ethernet WIFI Module, based on MT7688AN, developed by Hi-Link It is an IoT module with low cost and low power consumption. The module supports Linux, OpenWRT operating system and custom development. With its rich interface and powerful processor, smart devices are widely used in cloud services.

Features

• Processor: MT7628AN
• Kernel: MIPS24KEc
• RAM: DDR 128MB
• Flash: 32MB
• Frequency: 580MHz
• 150Mbps
• 802.11b/g/n support
• 20/40 channel bandwidth
• AP,STA and AP,STA support
• Interface: SPI/SD-XC/eMMC
• Peripheral Interface: SPI,I2C,I2S, PCM,UART,JTAG,GPIO

Module Pinout

Diagram
