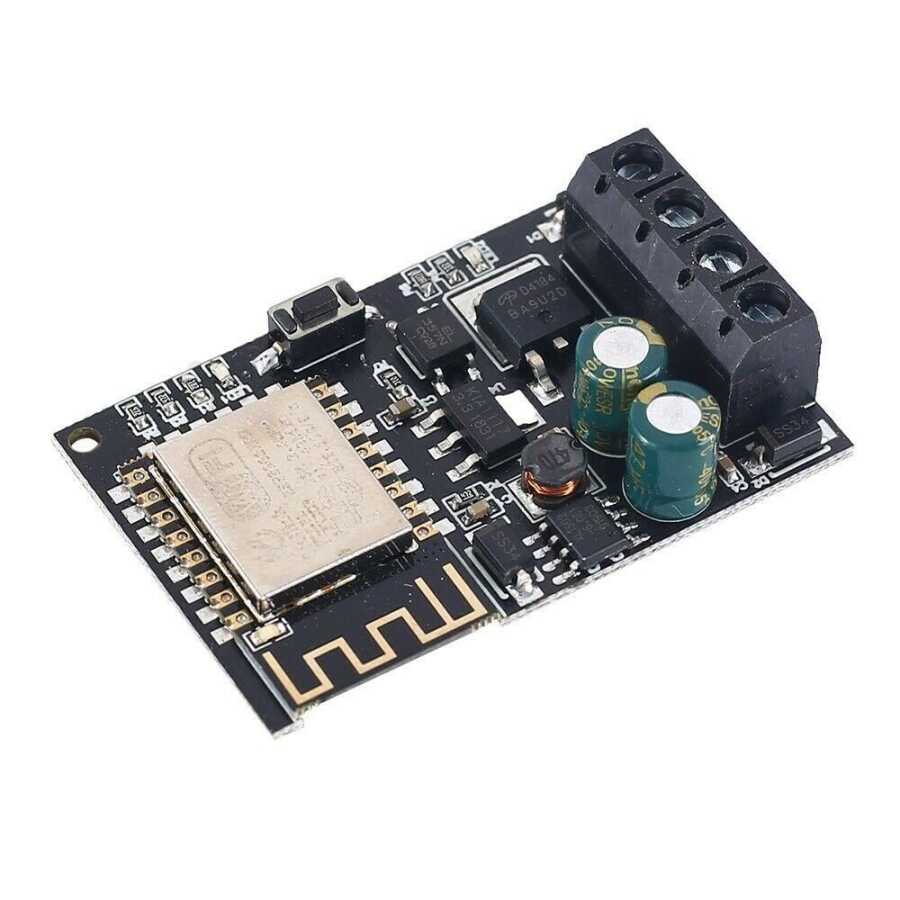

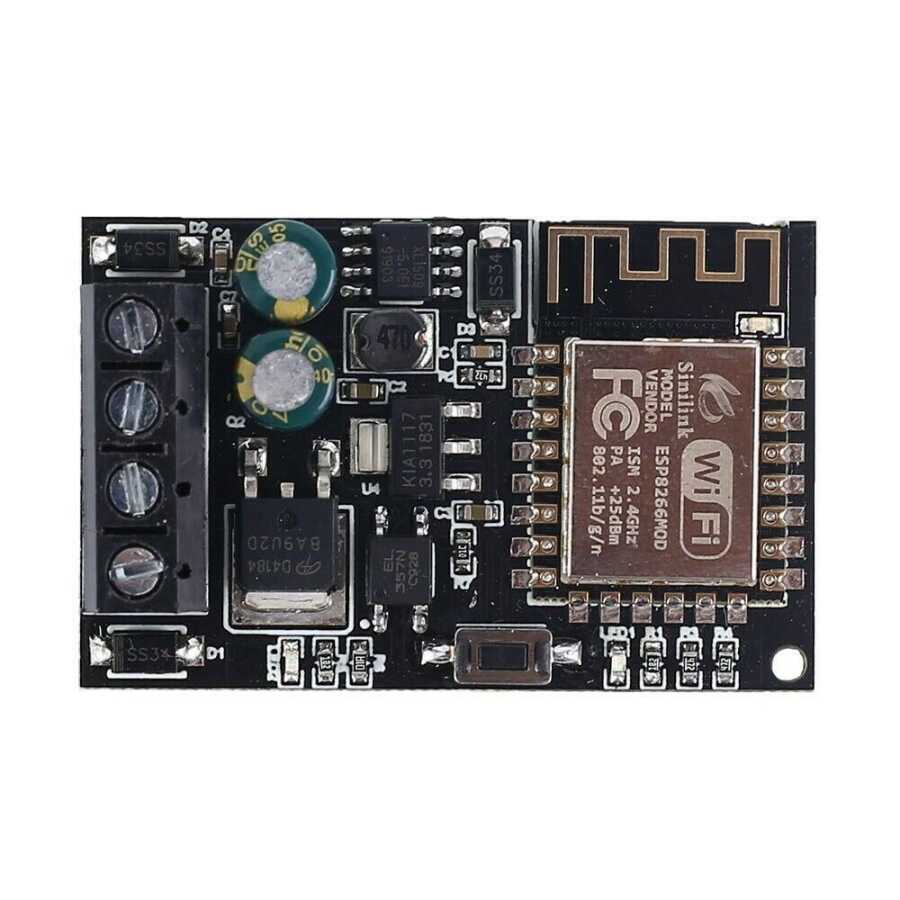

ESP-12F WIFI 5-36V Remote Control Module
It transmits data to a cloud platform through the WIFI router, which allows users to remotely control all connected devices via the mobile application.
This module makes all home appliances smart. As long as the mobile phone has a network, users can remotely control the devices from anywhere at any time.
Another feature available is countdown, scheduled on/off and thus scheduling for devices which can help users have an easy life is to set the programs.

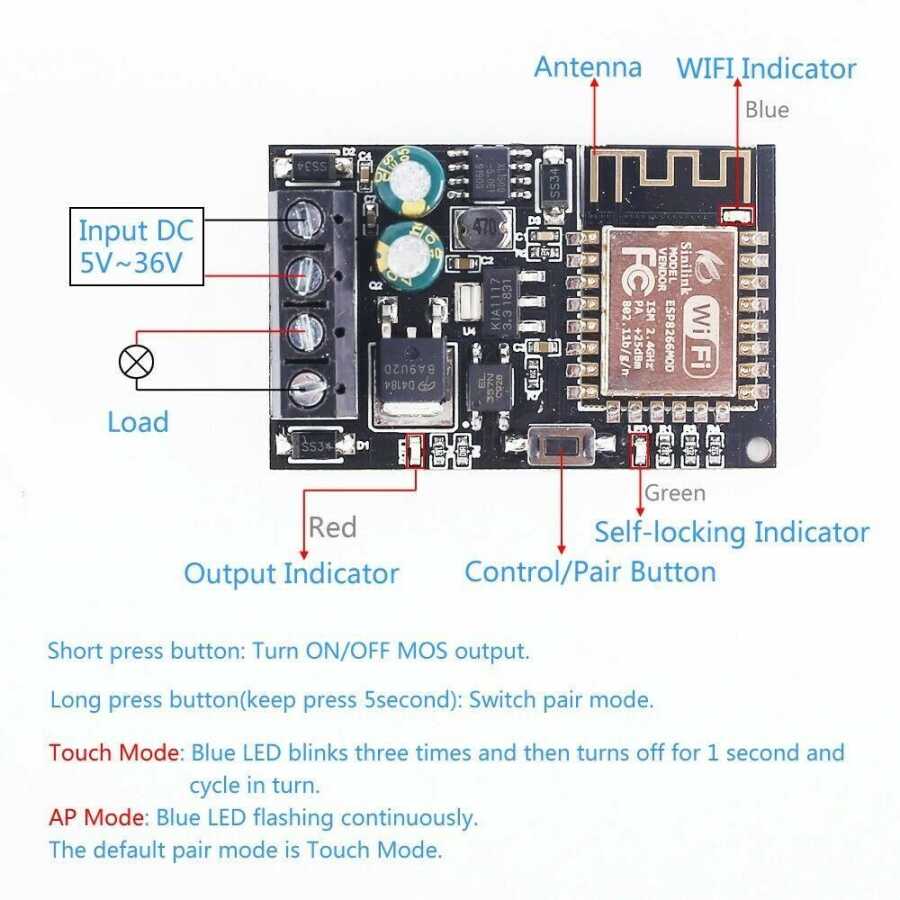

If you press the button briefly, it works as On/Off. Press and hold the button for 5 seconds to change the Touch Pairing mode.
Touch Mode: The blue light flickers three times in a row, waiting for one second, flickering again three times.
AP mode: Blue light flickering quickly continuously.
For use on the phone, you need to put it into AP mode. When the product is turned on, it will enter touch pairing mode by default. If pairing fails, please follow the APP instructions.
Features
- Supports APP control
- Supports button control
- Status monitoring supports timely feedback of your home appliance status to your APP
- Supports remotely turning on/off added devices
- Supports single/repeat/countdown timing tasks
- Supports multiple WIFI smart switches in a single account
- Self-locking/ support unlocked mode switching
- Support countdown timer and scheduled timer
- Support sharing control
- Supports iOS and Android
- Easy installation , easy to use and can be activated immediately and stably
- MOS output voltage same as input
Technical Specifications
- Product Name: XY-WFMS WIFI MOS Switch Module
- Working voltage: DC 5V-36V
- Output voltage: DC 5V-36V (Same as input)
- Operating current: 5A (Max)
- Operating Power: 180W (Max)
- Output type: MOS output
- WIFI standard: 2.4GHz b/g /n
- Operating Temperature: -20℃~70℃
- Operating Humidity: 5% - 90%RH
- Size: 46*29*14mm
For IOS Application, you can search it as Sinilink in the App Store.
