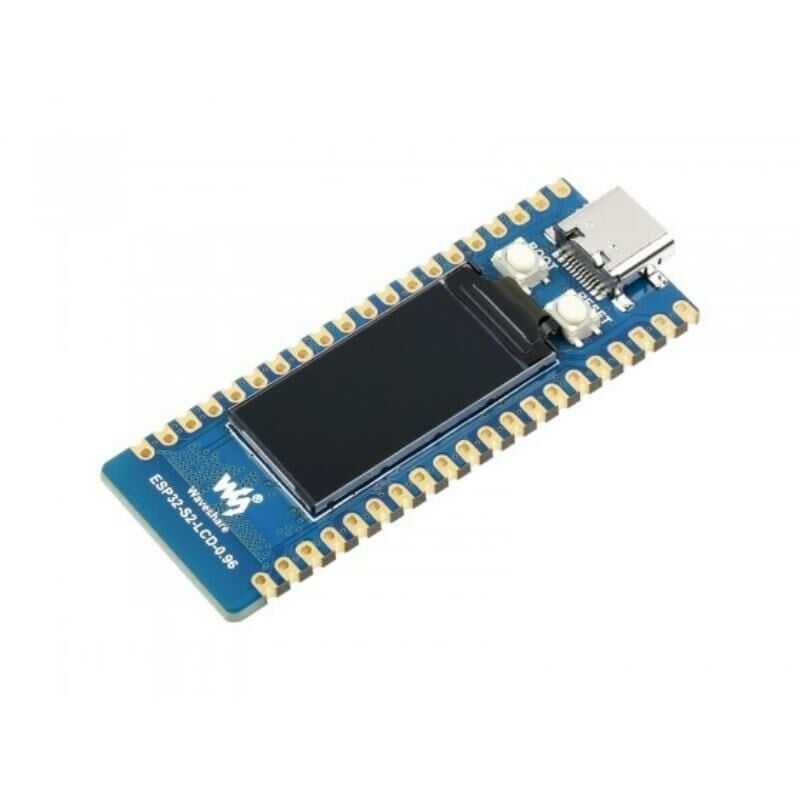

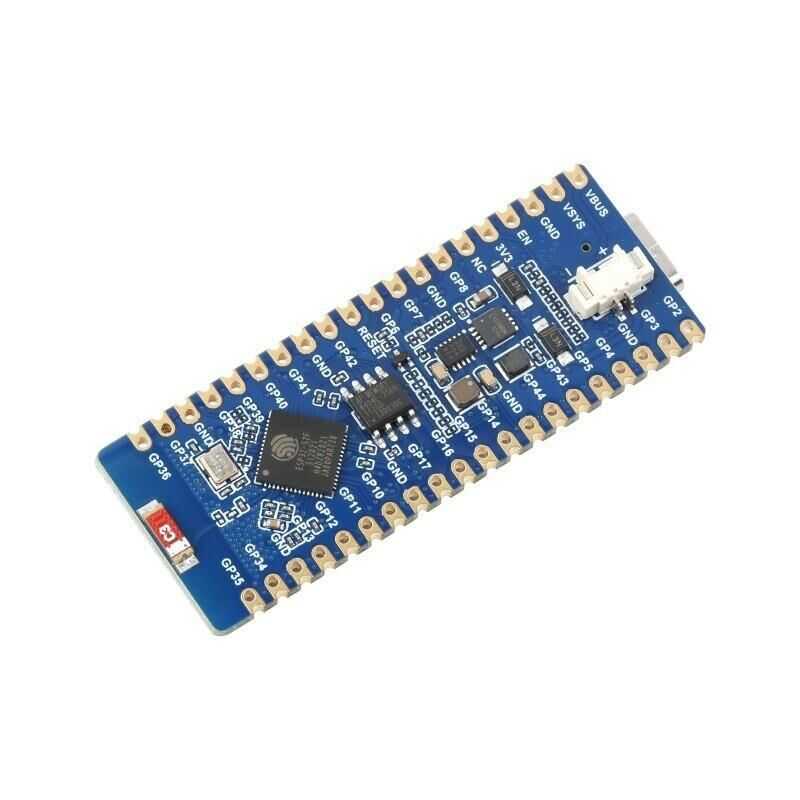

ESP32-S2-LCD-0.96 Development Board with Display
ESP32-S2-LCD-0.96 is a multi-peripheral interface, supporting the Raspberry Pi Pico expansion board ecosystem. It is a compact WiFi development board with integrated low-power WiFi System-on-Chip (SoC) and mass memory. Equipped with a hardware crypto accelerator, RNG, HMAC and Digital Signature module, it can meet the security requirements of the Internet of Things. Multiple low-power operating states to meet power requirements in IoT, mobile devices, wearable electronics, smart homes and other application scenarios, etc.
Features:
- Supports Raspberry Pi Pico expansion board ecosystem to satisfy creative IoT application development.
- Xtensa single-core 32-bit LX7 microprocessor, ESP32-S2FH4, supports clock frequency up to 240 MHz .
- Integrated 320KB SRAM, 128KB ROM, 8MB PSRAM, 4MB Flash memory.
- IEEE802.11 b/g/n, onboard 2.4 GHz WiFi ceramic antenna, 150 Mbps' Support data transfer rate up to .
- USB-C connector, no more plug orientation issues.
- On-chip integrated full-speed USB OTG interface, LCD interface (8-bit serial RGB/ 8080/6800), TWAI controller (ISO11898-1 compliant), capacitive sensor GPIO, temperature sensor and RMT (TX/RX).
- Onboard 1.8A current high efficiency boost/buck DC-DC TPS63000 power source IC.
- Support a variety of low-power operating states to adjust the optimal balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios.
- Rifle module is user-designed allows direct soldering to carrier boards.
Displayed Version:
- ESP32-S2 Standard Ver.
- Built-in 0.96 inch 160×80 pixel 65K color IPS LCD display
- Built-in single 3.7V lithium battery charge/discharge head, suitable for mobile IoT product design
