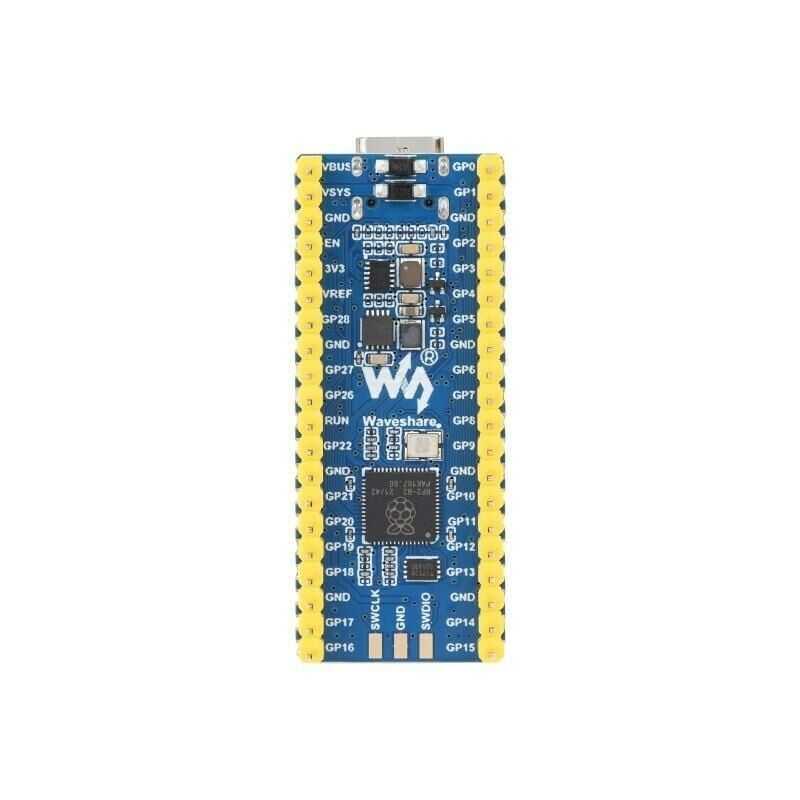

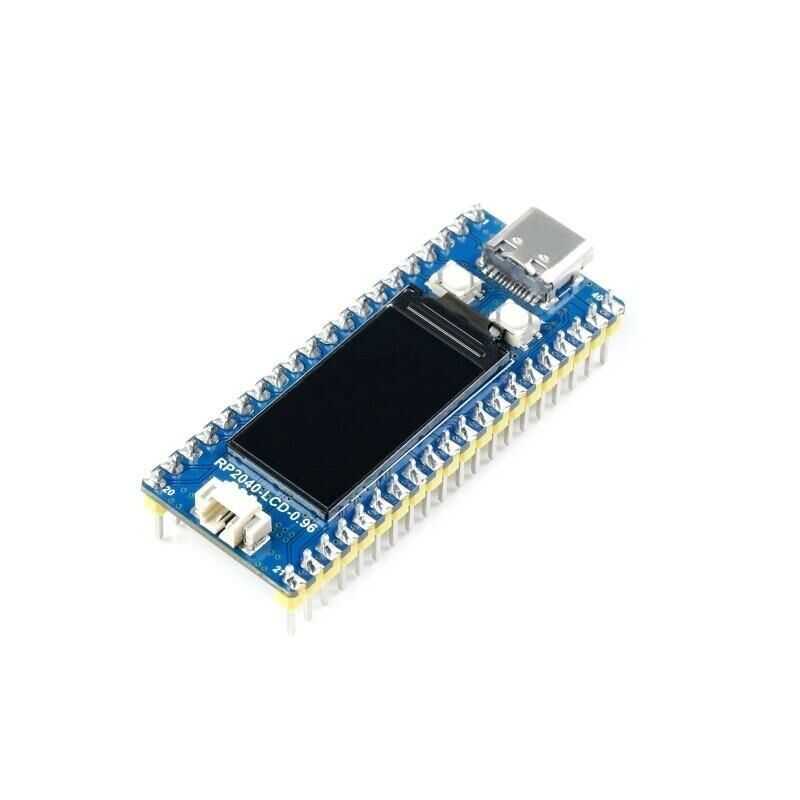

RP2040-LCD-0.96 Development Board with Display
RP2040-LCD-0.96 is a low-cost, high-performance Pico-like MCU board with flexible digital interfaces. It contains the Raspberry Pi's RP2040 microcontroller chip, which is the same as the one in the Raspberry Pi Pico. The Raspberry Pi's C/C++ SDK or MicroPython is available for software development, making it easy to get started and allowing you to quickly integrate into final products.
Additionally, a built-in 0.96-inch IPS display, Lithium battery charging/ There is also a discharge header and a high-efficiency DC-DC buck-boost chip.
Features:
- RP2040 microcontroller chip designed by Raspberry Pi .
- Dual-core Arm Cortex M0+ processor, a flexible clock running up to 133 MHz.
- 264KB SRAM and 2MB onboard Flash memory.
- USB-C connector keeps it up to date and is easier to use.
- 0.96 inch 160×80 pixel 65K color IPS LCD screen.
- Lithium battery charging/discharging head suitable for mobile devices.
- Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch.
- Crested module allows soldering directly to carrier boards (to embed underlying components must be a special sector).
- USB 1.1 with device and host support.
- Low power sleep and sleep modes.
- Drag and drop using mass storage over USB programming.

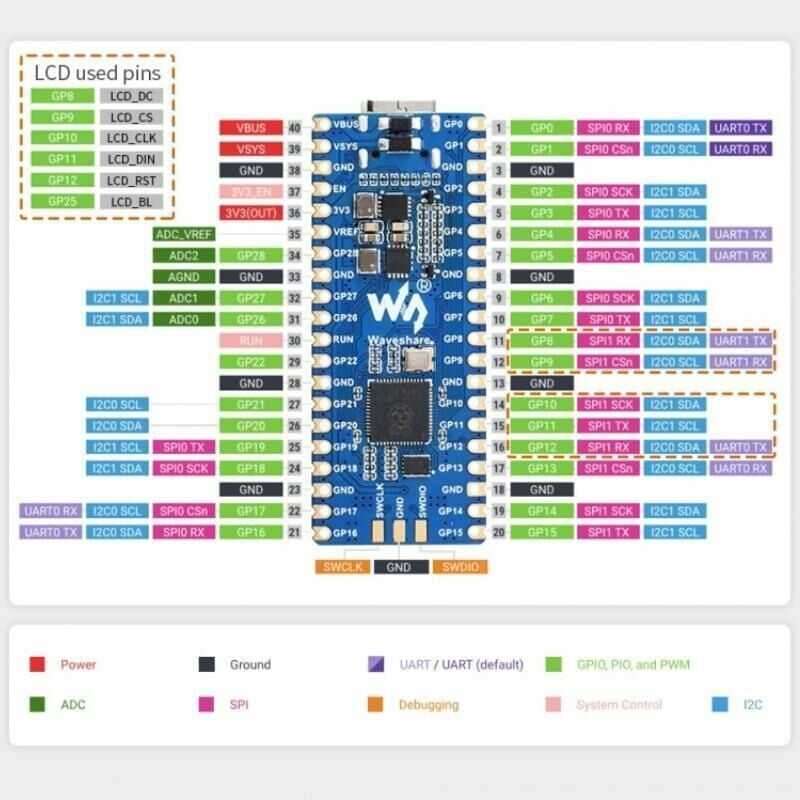

- 26 × multifunction GPIO pins.
- 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels.
- Accurate clock and timer on chip.
- Temperature sensor.
- Accelerated floating point libraries on chip.
- 8 × Programmable for custom peripheral support I/O (PIO) state machines.
