ESP32 Development Board OV2640 with Camera (Wifi + Bluetooth)

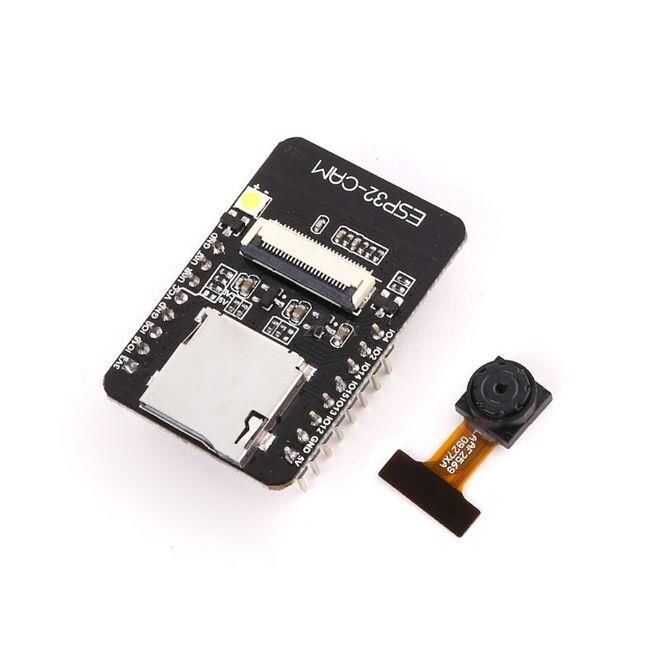

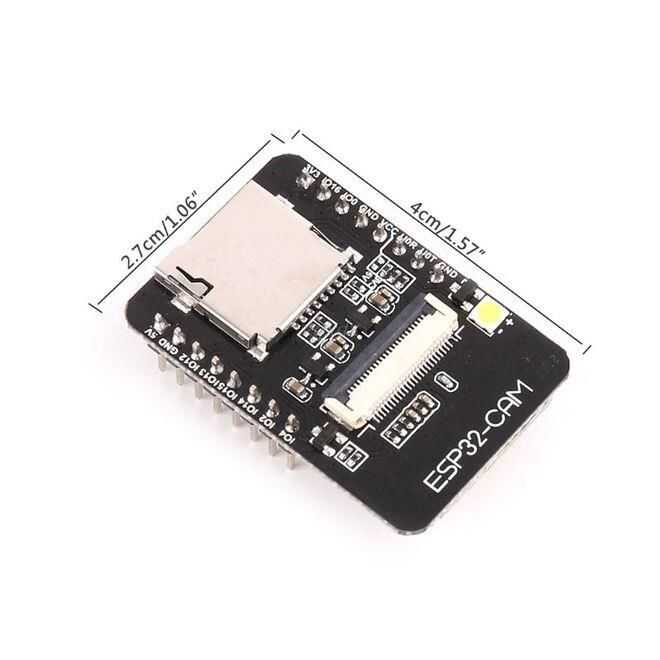

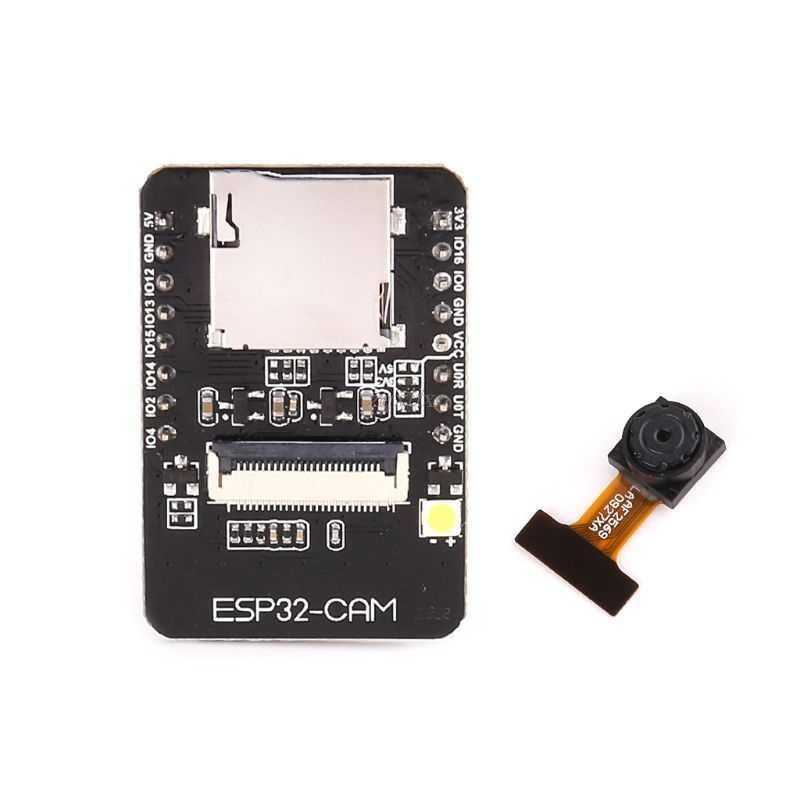

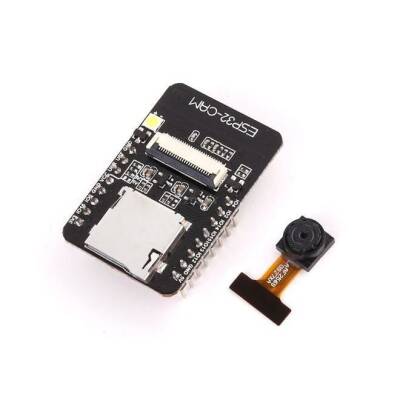

ESP32-CAM is a module combining ESP32-S chip and OV2640 camera. It allows you to set up a video streaming web server, create a surveillance camera to do facial recognition and detection, and integrate it with your home automation system. Additionally, captured images can be saved by inserting a MicroSD card.

ESP32-CAM features:

• Smallest 802.11b / g / n Wi -Fi BT SoC Module
• Low power 32-bit CPU, can also serve the application processor
• Clock speed up to 160MHz 600 Summary computing power up to 600 DMIPS
• Built-in 520 KB SRAM, external 4MPSRAM
• Supports UART / SPI / I2C / PWM / ADC / DAC
• Supports OV2640 and OV7670 cameras, Internal Flash lamp.
• Support official WiFI upload
• Support tf card
• Support multiple sleep modes
• Embedded Lwip and FreeRTOS
• Supports STA / AP / STA + AP operating mode
• Supports Smart Config / AirKiss technology
• Supports serial port local and remote firmware upgrades (FOTA)

Ov2640 Camera ESP32 Pin Outs:
