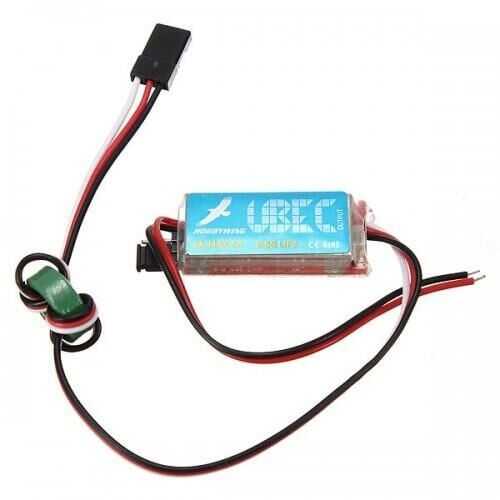

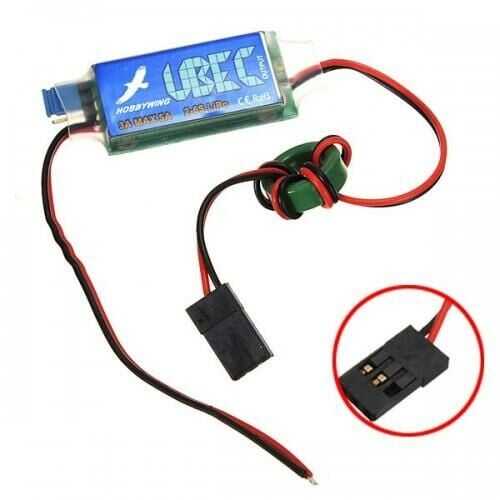

Hobbywing UBEC Module 3A 2-6S



Hobbywing 3A-UBEC is a switch-mode DC/DC regulator, providing a consistent safe voltage for the receiver, gyroscopes and servos gives. It is very suitable for RC helicopter and other RC models, especially when the built-in BEC in the speed controller has a very limited output capability.

Features:

• Output Voltage: 5V@3A or 6V@3A (Selectable using a jumper connector)
• Continuous output current: 3 Amps
• Input: 5.5V- 26V (2-6S Lipo or 5-18 cell NiMH /NiCd)
• Dimension: 43mm*17mm*7mm (L*W*H)
• Weight: 11g
• Uses an advanced switch mode DC-DC regulator IC.
• The output is powerful enough even when powered by 4S to 6S Lipo battery.
• Reverse Voltage Protection
• Prevents interference
• Operating status is indicated by an LED, the LED turns on when UBEC operates normally.
