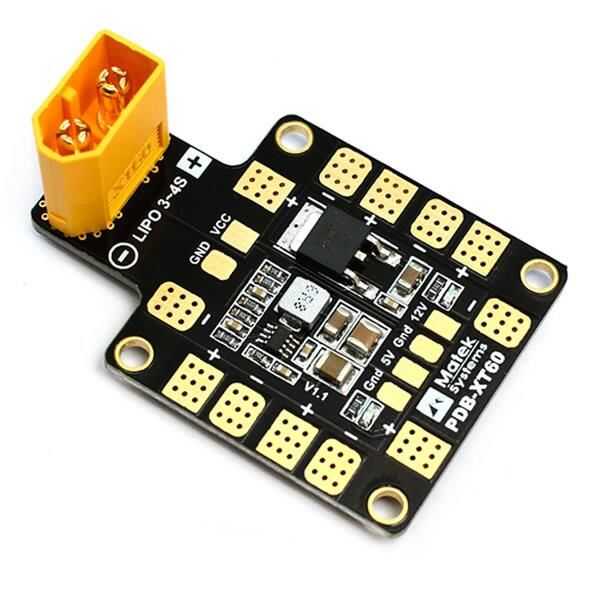

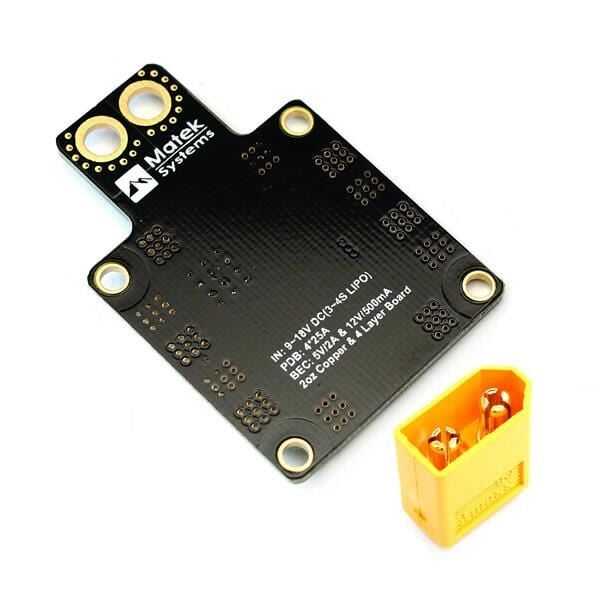

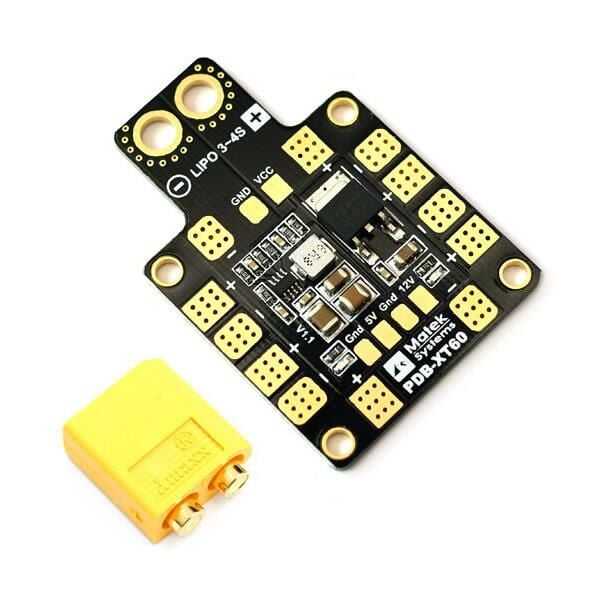

Matek PDB-XT60 w/ BEC 5V & 12V ESC Power Distribution
This Power Distribution Board offers the highest possible power on a 36x50mm, 4-layer PCB Designed to ensure performance and reliability. It comes with an XT60 for easy connection to LiPo batteries.
Using BECs, it distributes power from 3~4S LiPo packs to 6 ESCs, while RC Receivers, Flight controllers, OSD and Provides synchronized and regulated DC 5V outputs for servos. Also can be used in Cameras, Servos, RC receivers, Flight Controllers, Video Transmitters, LEDs, etc. Provides linear regulated DC 12V to power.
A great package to power and race your Racing Drones.
Features :
• 2oz copper, 4 layers and 1.6mm PCB
• Internal XT60 Socket
• Total 6 pairs of ESC solder tabs for H or X type frame suitable
• 5V and 12V Output LED indicators
• Regulated 5V and 12V outputs
• Short circuit tolerance
Technical Specifications:
- Input voltage range: 9 - 18V DC (3S-4S LiPoly operation)
- Continuous output current: 25Ax4 or 15Ax6
- Output Peak current (10 seconds / minute): 30Ax4 or 20Ax6
- BEC 5V output: 5V / 2A (Max.2.5A 10s / minute)
- Output Ripple: 40mV ( VIn = 16V, VOut = 5V @ 2A load)
- Short circuit tolerance: 5 seconds / minute
- BEC 12V output (4S LiPoly, 13 ~ 18V DC): 12V / 500mA ( Max. 0.8A 5s/min)
- BEC 12V output (3S LiPoly): = 3S LiPoly voltage - 1V
- Dimensions: 36 x 50 x 4 mm (without XT60)
- Mounting: 30.5 x 30.5 mm, Φ3 mm
- Weight: 7.5g (a / XT60), 11g (a / XT60)
