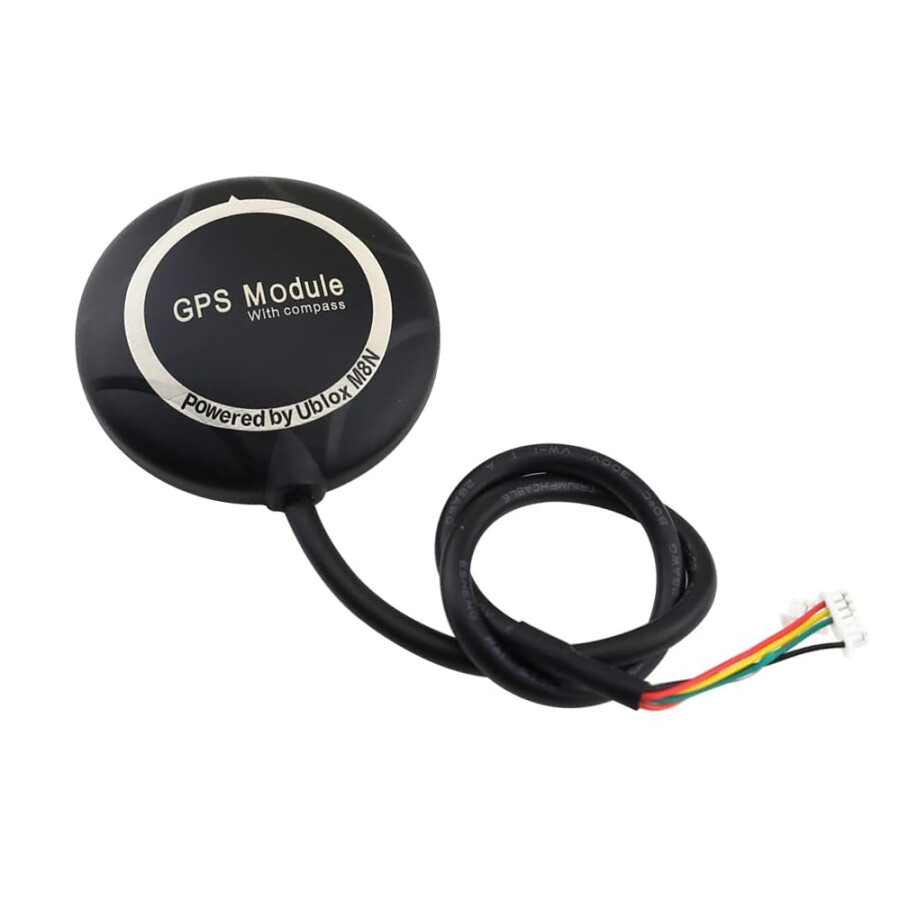

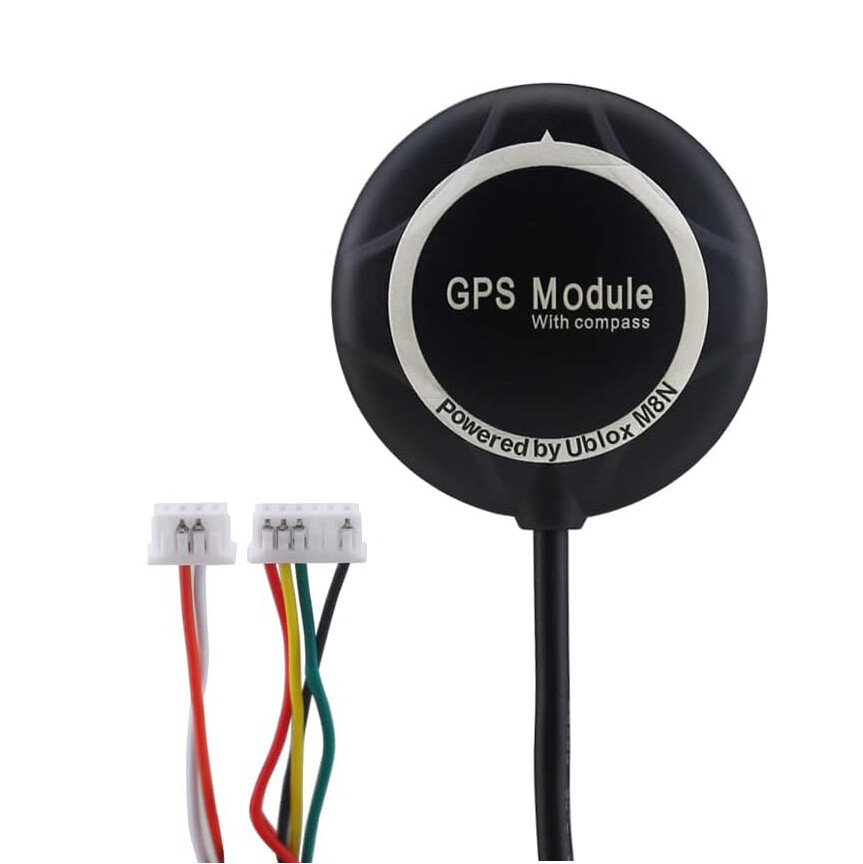

M8N GPS Module Built-in IST8310 Compass Pixhawk Compatible

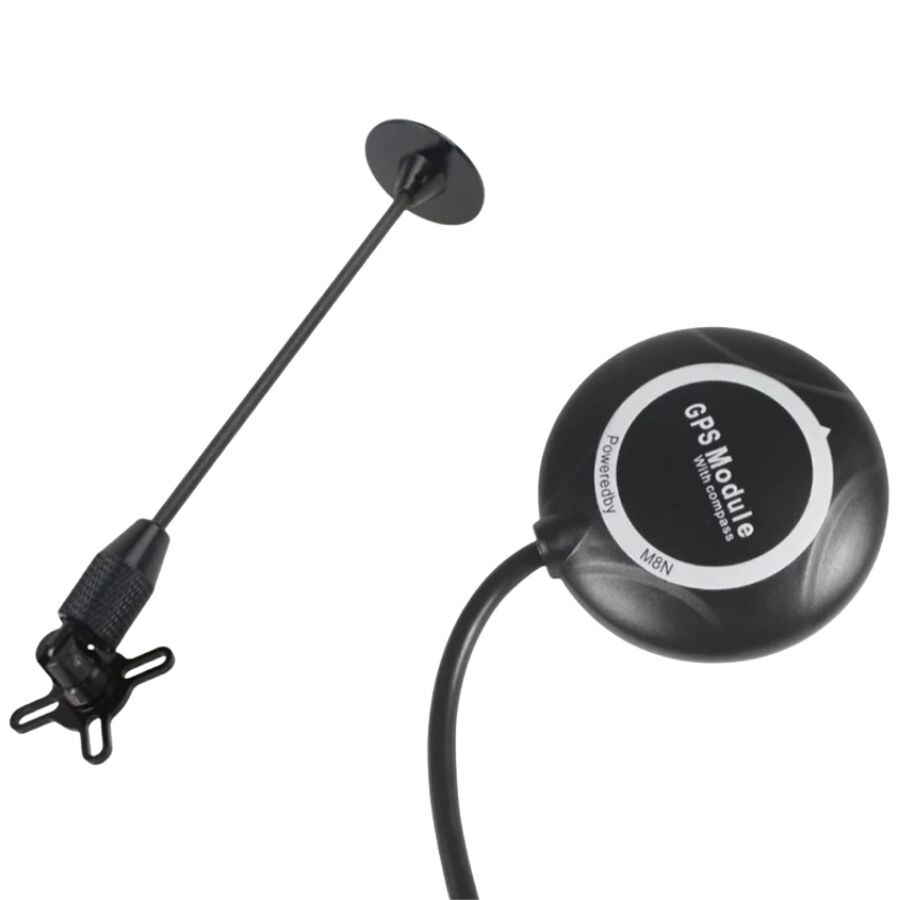

NEO-M8N is a highly accurate GPS module with a built-in compass. It can be directly connected to the Pixhawk flight control card. The high-strength mounting bar shown in the image is also sent with the product.

NEO-M8N provides the best performance and easiest RF integration of all NEO-M8 configurations. The NEO form factor allows for easy migration from previous NEO generations. Advanced RF architecture and noise suppression ensure maximum performance even in GNSS hostile environments. NEO-M8 combines high levels of robustness and integration capability with flexible connectivity options. The future-proof NEO-M8N includes a built-in Flash that allows simple firmware upgrades to support additional GNSS systems.



• GPS / QZSS L1 C / A, GLONASS L10F, BeiDou B1
• SBAS L1 C / A: WAAS, EGNOS, MSAS
• Galileo ready E1B / C (NEO- M8N)
• Onboard Compass
•  Assistance AssistNow GNSS Online
•  AssistNow GNSS Offline (up to 35 days)
•   AssistNow Autonomous (up to 6 days)
•  OMA SUPL & 3GPP compatible
•  Oscillator TCXO (NEO-M8N / Q),
•  Crystal (NEO-M8M)
•  RTC crystal Onboard
•  Noise pattern On-chip LNA (NEO-M8M). Extra LNA for
•  lowest noise value (NEO-M8N/Q)
•  Anti-interference Active CW detection and removal. Extra
•  built-in SAW bandpass filter (NEO-M8N / Q)
•  Memory ROM (NEO-M8M / Q) or Flash (NEO-M8N)
•  Supported antennas Active and passive
•  Odometer Distance traveled
•  Data logger For position, speed and time (NEO-M8N)
