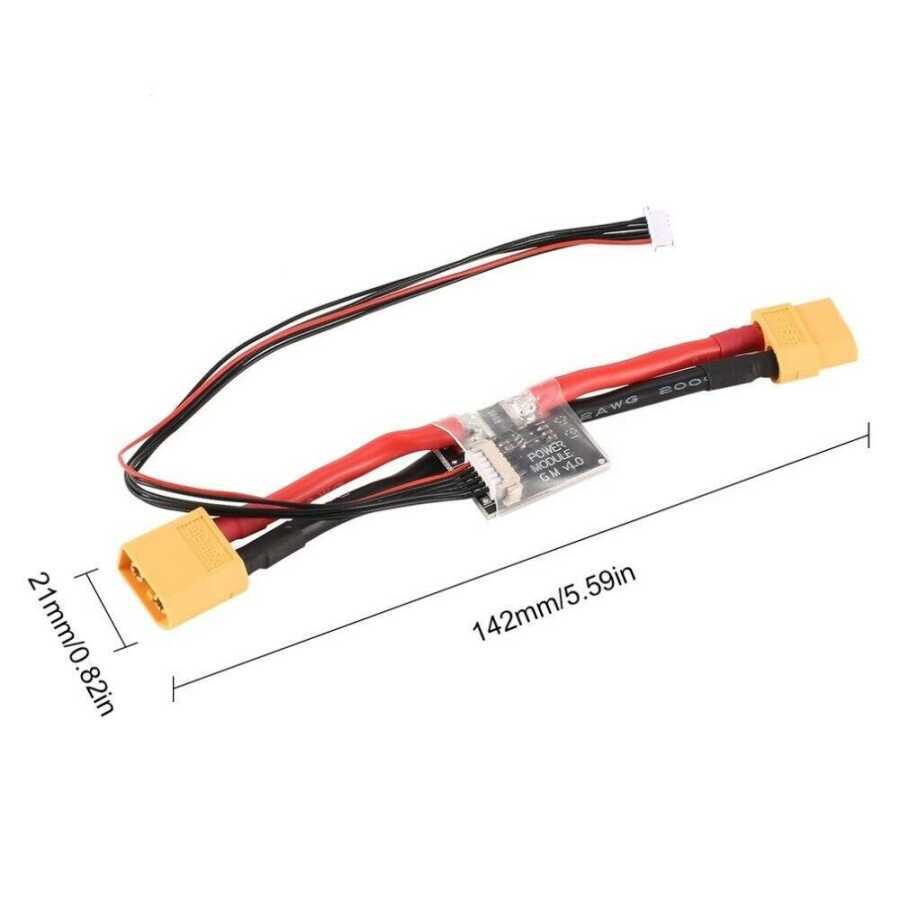

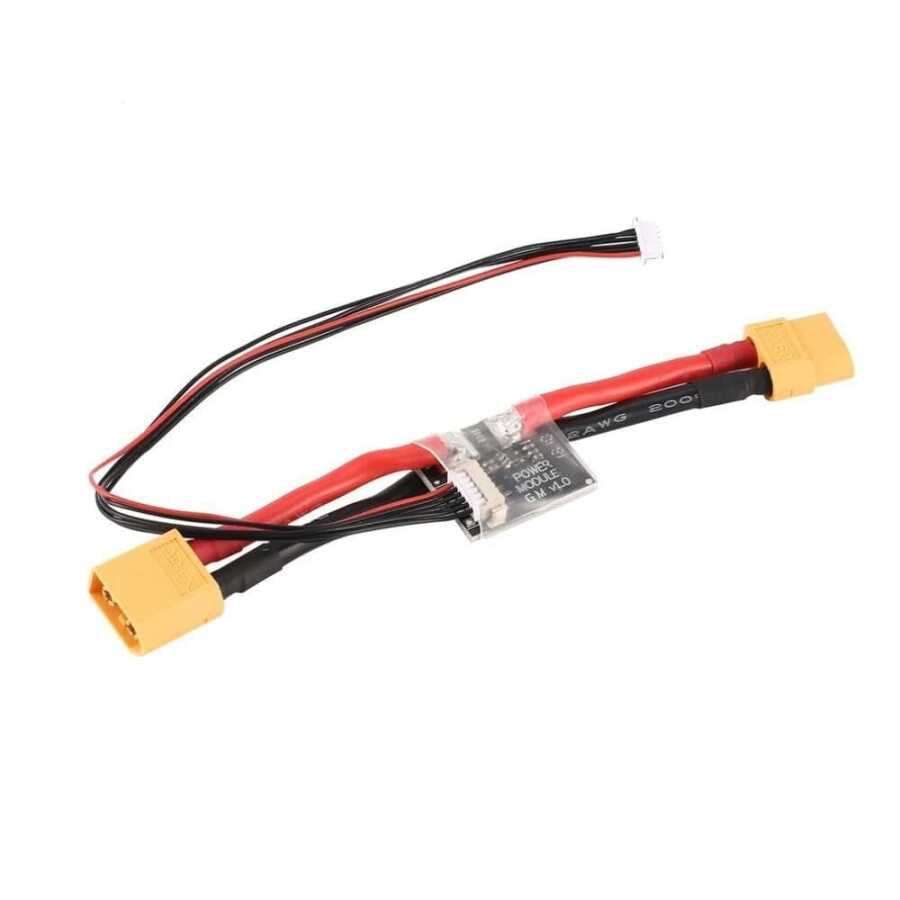

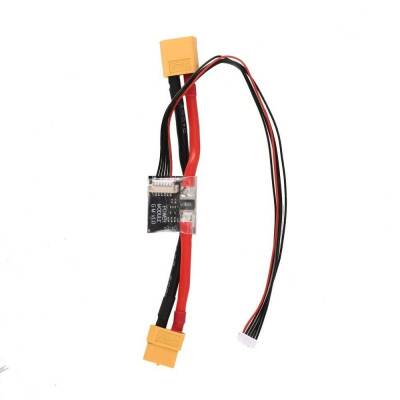

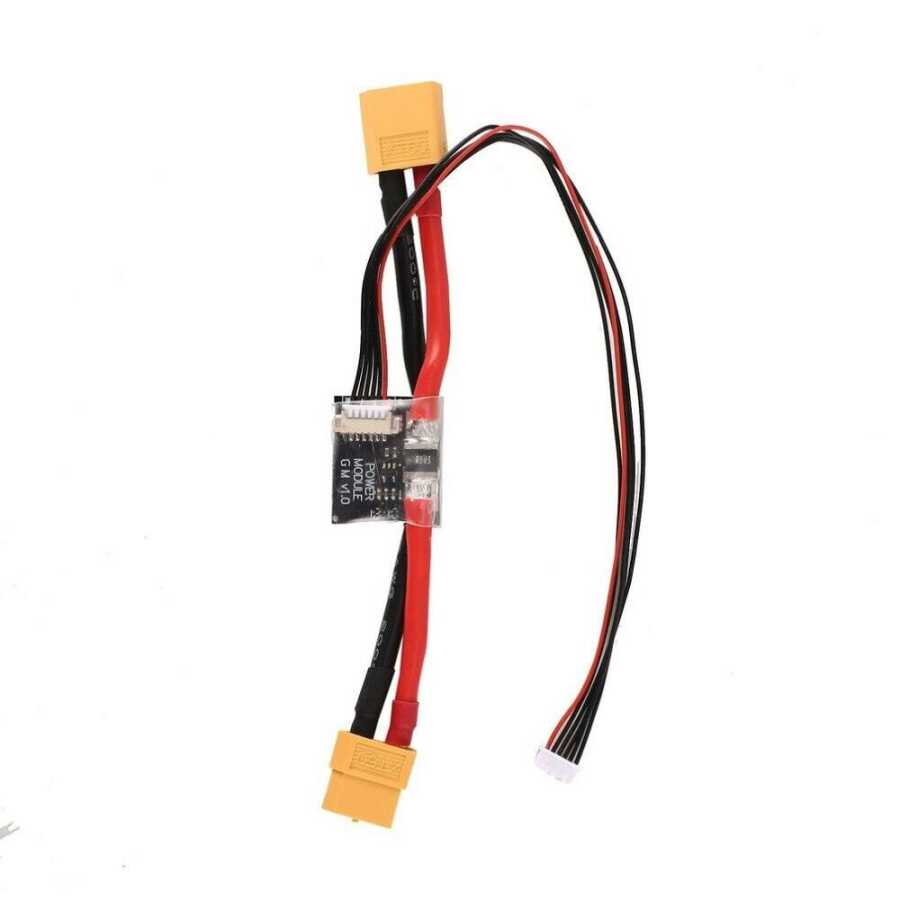

The Pixhawk-APM Power Module is a simple way to provide clean power to your APM/Arduflyer from a LiPo battery, as well as current consumption and battery voltage measurements all over a 6P cable. The built-in switching regulator outputs a maximum of 3A from 5.3V and 6S LiPo battery.
Features:
- Maximum input voltage: 30V Max.
- Maximum current detection: 60A
- Voltage and current measurement configured for 5V ADC
- Switching regulator outputs 5.3V and 3A max
- 6P molex cable plugs directly into 'PM' connector of APM / Arduflyer 2.5
