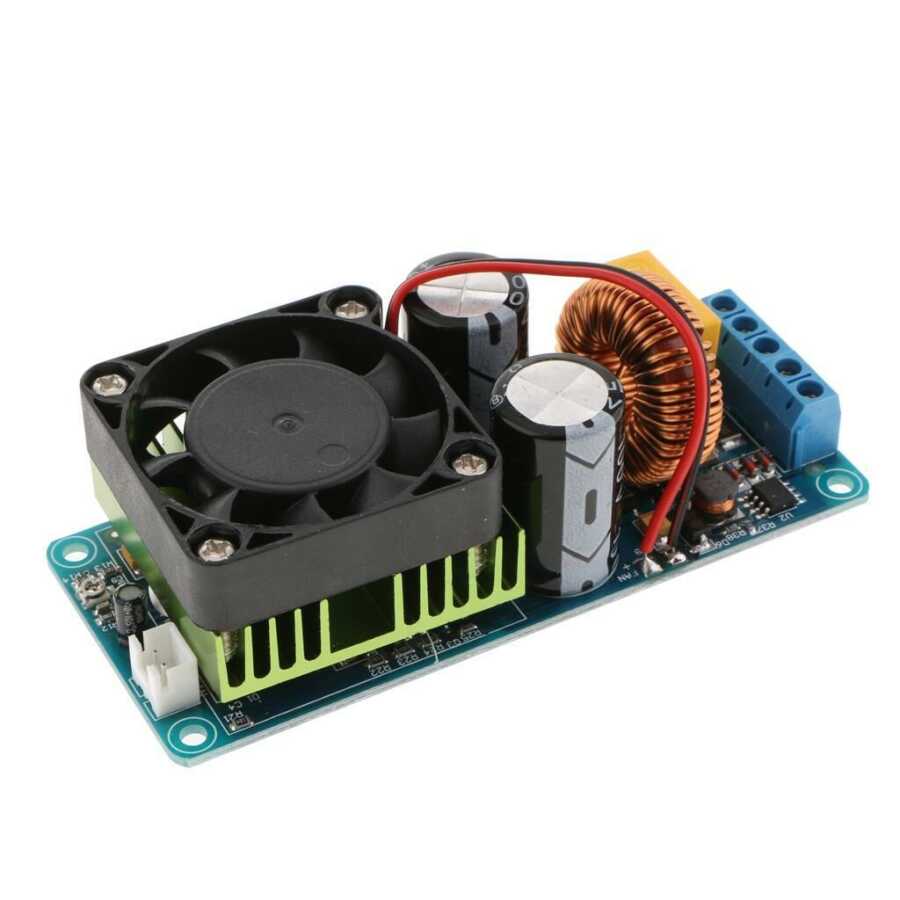

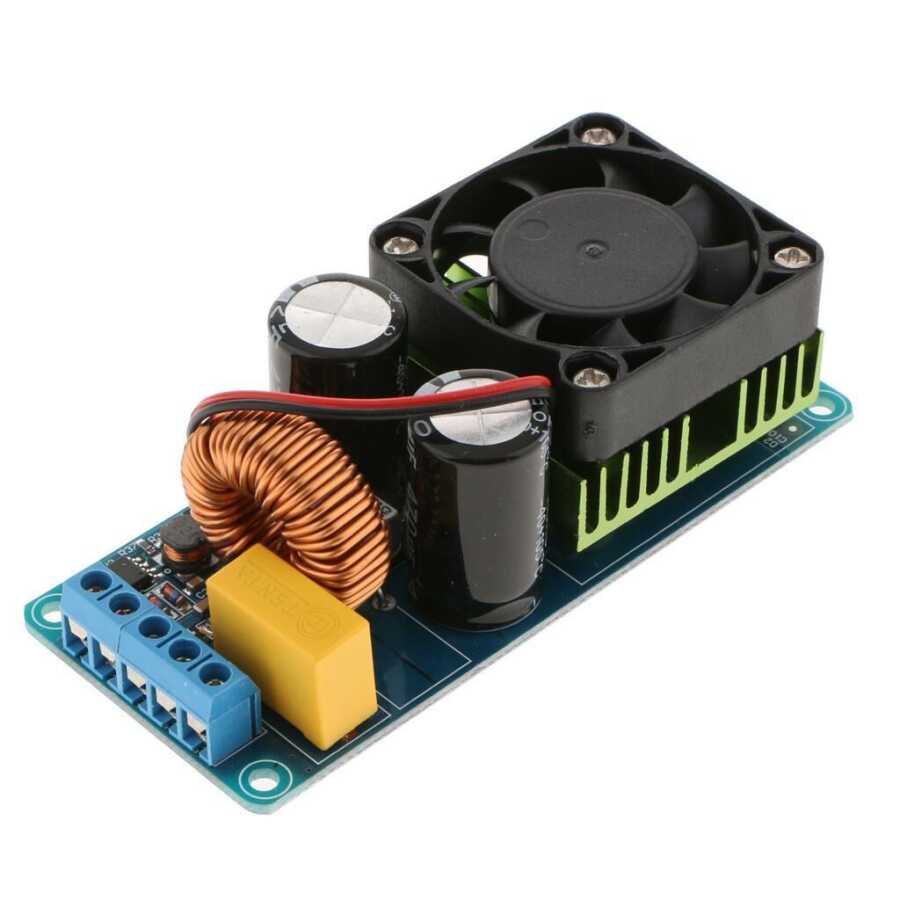

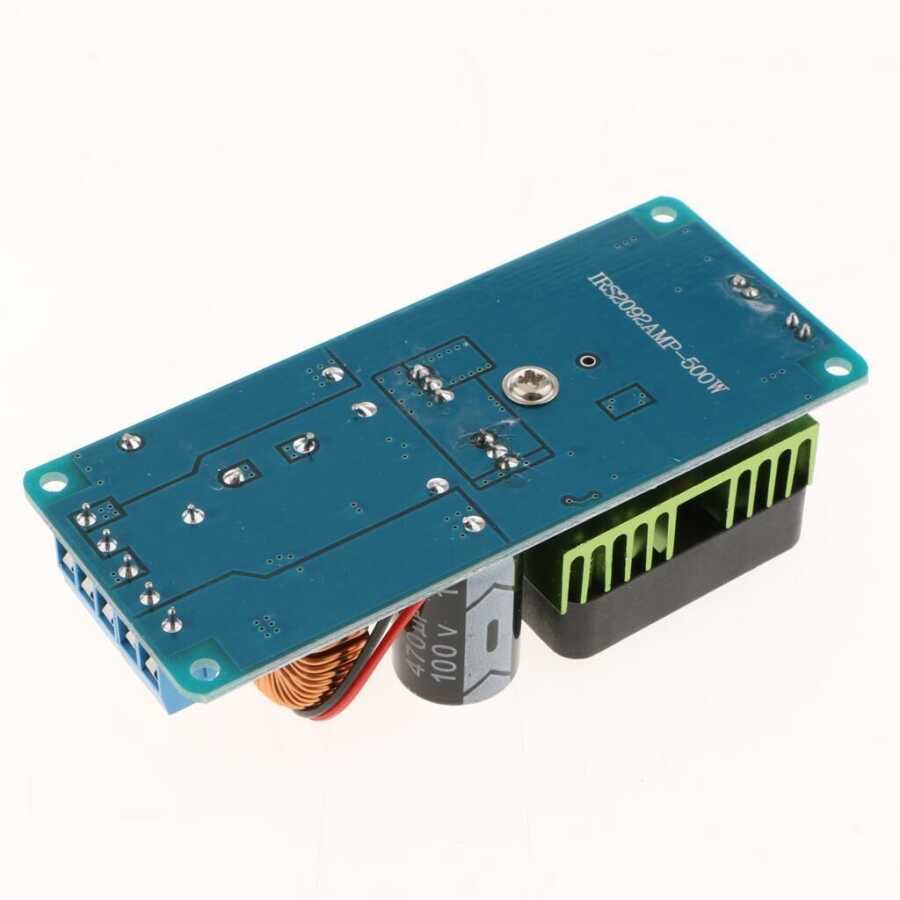

IRS2092S 500W 65V Mono D Class Amplifier Circuit
IRS2092S 500W 65V Mono D Class Amplifier Circuit. It is an amplifier circuit with a nominal output power of 500W. The sensitivity of the input signal is 1.5V rms. . If your input signal voltage cannot reach this value, it is recommended to add a preamplifier.
Specifications:
- Operating Voltage: Dual DC 58-70V
- Rated Output Power: 500W
- Efficiency: >=90%
- Speaker: 4-8R
- Frequency Range : 20Hz-20KHz
- Short Circuit Protection
- Dimensions: 97x42mm
Wiring Diagram
