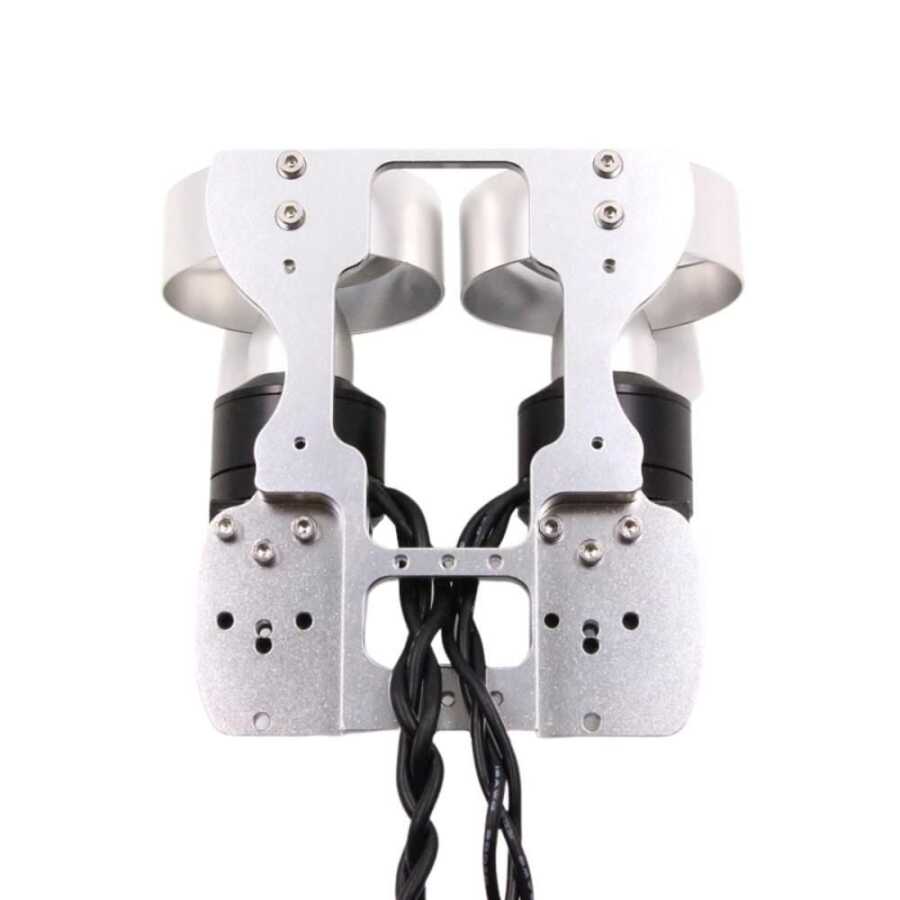

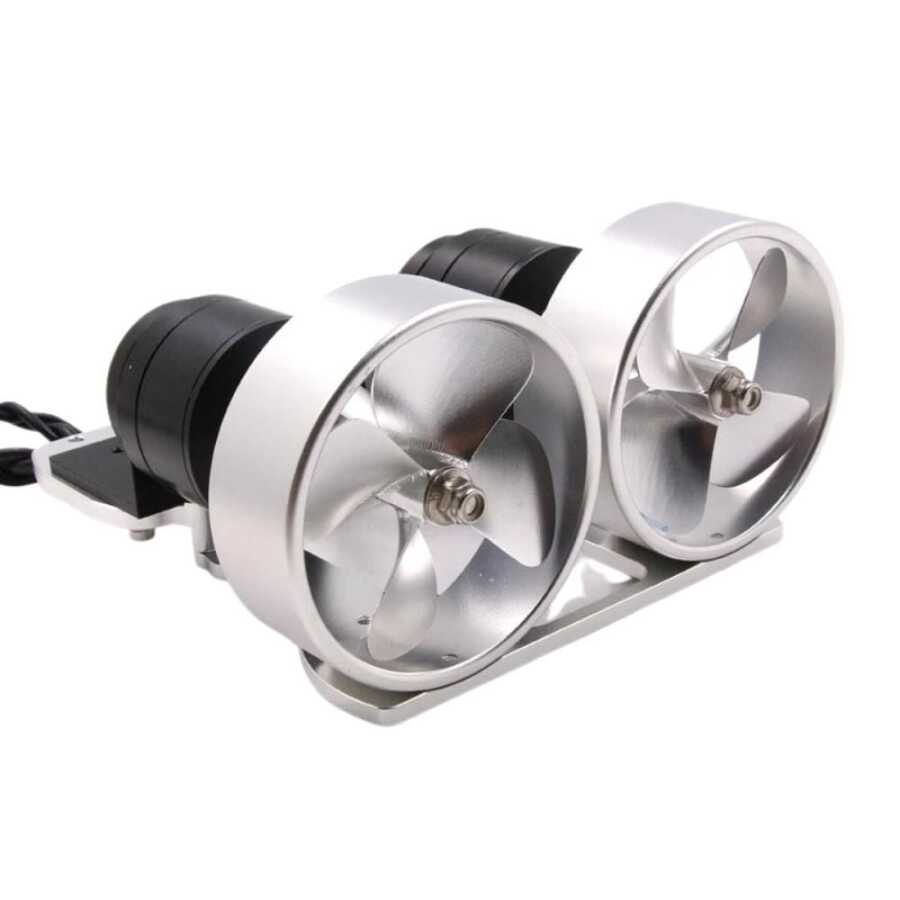

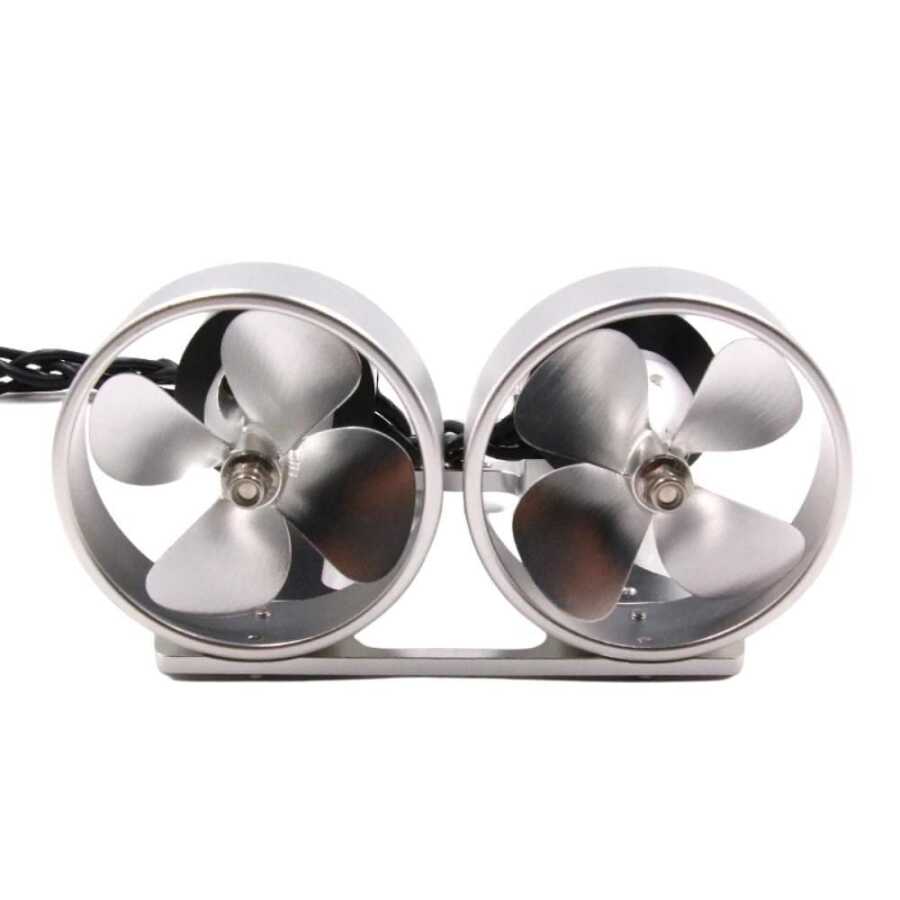

KYO-4T-DUAL Underwater Brushless Motor Pair with Metal Propeller



KYO-4T-DUAL is a pair of underwater motors with metal propellers. It is suitable for operation up to 30m depth. The advantage of having a motor pair is that it enables fast rotations by energizing the motors without losing speed. Both can work at the same time, one can work forward and the other can work in reverse.



To use this model, you need to use ESC.



• Voltage: max25.2V
• Can work underwater 30m deep
• Cable length: 1m
• Weight: 750g
• Power: 700W

Test data (35A esc):

Forward thrust 16V: current: 15A, thrust: 4.5kg;

24V: current: 27A, thrust: 9.0kg;

Reverse thrust

16V: current : 14A, thrust: 3.6kg;

24V: current, thrust: 6.0kg;
