SunnySky X3525 520KV Brushless Drone Motor
SunnySky /DIV>

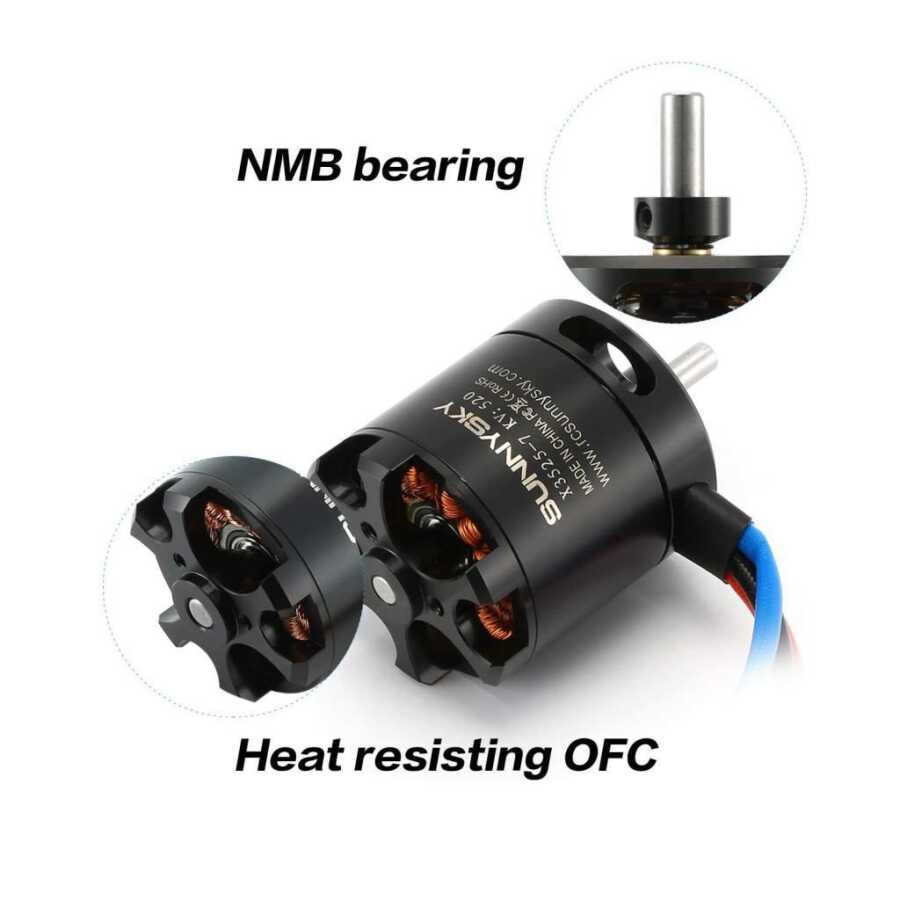

X series uses customized NMB mini bearings imported from Japan, which ensures longer life, quieter and more stable operation of these motors. The coils of the This manufacturing procedure costs much more in terms of labor, but makes the coil tighter, cleaner, better coil area factor and can increase the continuous power output of the motors. The coils of the X motors are all hand wound. This manufacturing procedure costs much more in labor, but makes the coil tighter, cleaner, better coil area factor and can increase the continuous power output of motors.
Technical Specifications
- Brand Name: Sunnysky
- Model: X3525 KV520 Brushless Motor
- KV: 520
Stator Diameter: 35mm
Stator Thickness: 25mm
Number of Stator Arms: 12
Number of Stator Poles: 14
No-Load Current (A/10V): 1.1A
Motor Resistance: 22mΩ
Maximum Continuous Current: 60A/15s
Maximum Continuous Power: 1332W
< LI>Weight: 252g
Outer Diameter: 42.5 mm
Shaft Diameter: 5mm
Body Length: 50mm
Total Shaft Length: 69mm
Maximum Lipo Cell: 5S-6S
ESC: 70A
