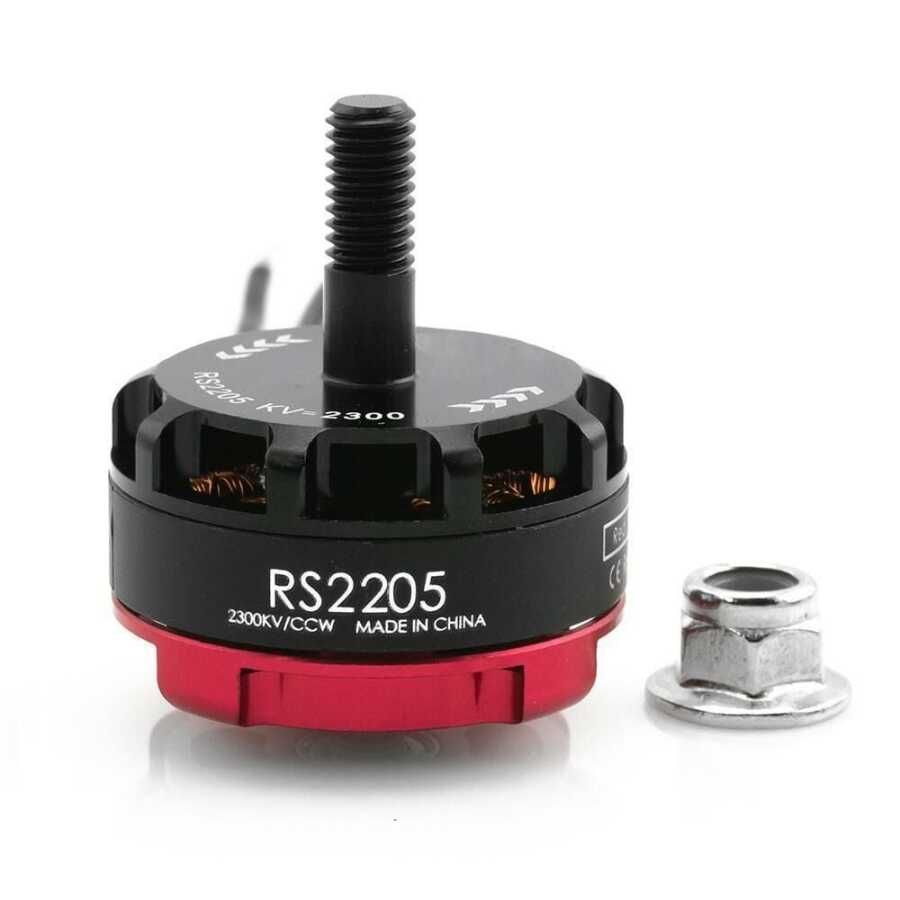

RS2205 2300KV Brushless Motor CCW - FPV Racing Compatible
RS2205 2300KV is a Brushless DC Motor for QAV250 QAV300 racing multicopters. Suitable for FPV racing applications.
The coolest feature of this engine is the self-cooling technique. This RS2205 2300KV CCW Brushless Motor features unique cooling fins that draw air from the motor base past the motor coils. The faster it spins, the more the air moves. This can reduce the temperature of the motor by up to 30% and this will extend the lifespan of the BLDC Motor.
Note: This is BLDC returning CCW Motor is for CW rotating BLDC motor
click.
Technical Features
- Motor KV: 2300 RPM/V
- Li-PO Batteries: 3-4S
- Shaft diameter: 5 mm
- Propellers: 5 ″
- Thrust: 1024 gm
- Engine diameter: 28mm
- Weight: 30g
