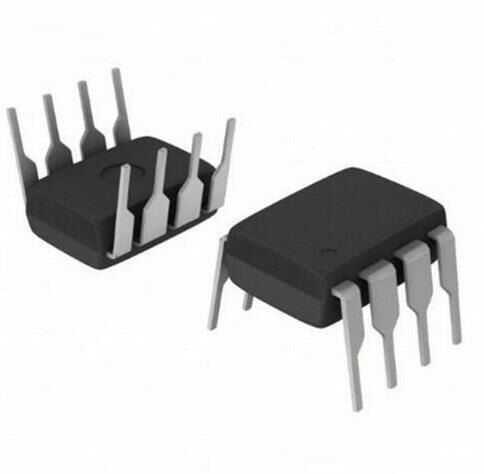

LM2574N-5V DIP-8 Voltage Regulator
LM2574 series regulators are monolithic integrated circuits ideally suited for the easy and convenient design of a step-down switching regulator. All circuits of this series are capable of driving a load of 0.5 A with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5.0 V, 12 V, 15 V and in an adjustable output version. These regulators are designed to minimize the number of external components to simplify power supply design.
Usage Areas
Simple and Highly Efficient Buck Regulators
Efficient Pre-Editor for Linear Editors
On-Board Modifiers
Positive and Negative Converters (Buck-Boost)
Negative Boost Converters
Power Supply for Battery Chargers
| Series |
LM2574N |
| Supply Voltage |
4V - 40V |
| Output Voltage |
5V |
| Output Current |
500 mA |
| Number of Exits |
1 Exit |

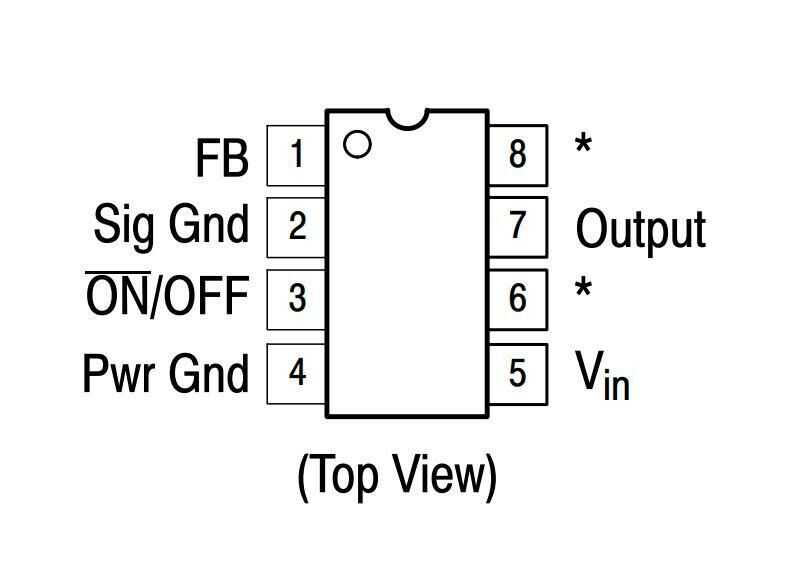

| Number of Pins |
8 Pin |
| Package Type |
DIP-8 |
