LP-28-C03PE-21-001 3-Pin Waterproof Connector - Male

Ratings & Reviews (0)
Comment
Brand: CNLINKO
Product Code: KOM.KNN.05.000300
Stokta 10+ ürün
823.68 TL + VAT
VAT Included: 988.42 TL

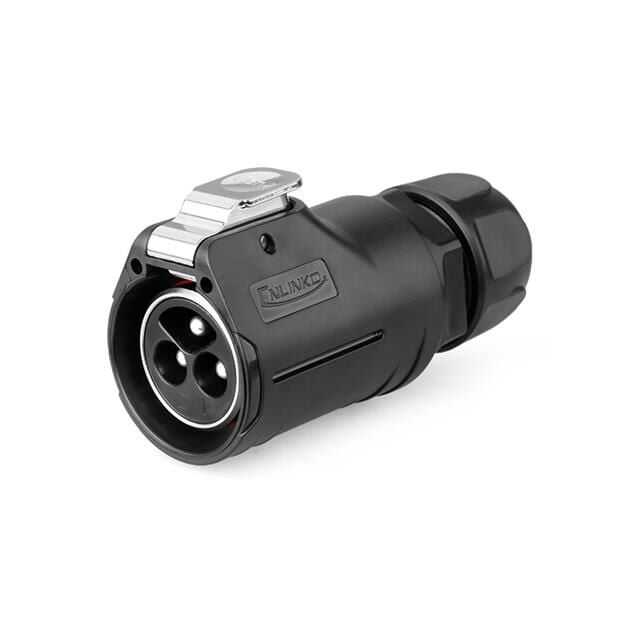

LP-28-C03PE-21-001 3-Pin Waterproof Connector - Male


LP series is the best selling waterproof made of high performance engineering plastics It is one of the connector series. Quick plug design allows one-handed plug/remove. It has gold plating technology that is resistant to corrosion and suitable for high and low temperatures. LP-28 series connectors are widely used in various harsh environments and situations such as audio-visual equipment, medical equipment, industrial control, inspection and measurement due to their small size, flexible operation and automatic plug-in/disconnect. Compact components, simple operation, fast and stable connection, IP67-rated outdoor waterproof performance.

Compatible Panel Type Female connector - LP-28-J03SX- 23-401 3-Pin Waterproof Connector - Female
Compatible Cable Type Female connector - LP-28-J03PP-21-001 3-Pin Waterproof Connector - Female

Technical Specifications


  • Number of Pins: 3
  • Rated Current: 35A
  • Operating Voltage : 500V
  • Cable Specification: 2.5 mm~5 mm/14-12AWG
  • Line Diameter Range: 18mm~ 20mm
  • Contact Resistance: < 5m Ohm
  • Withstand Voltage (AC.V) 1 Minute: 2500 V
  • Insulation Resistance: >500MOhm
  • Protection Level: IP65/IP67
  • Operating temperature: -40℃~80℃

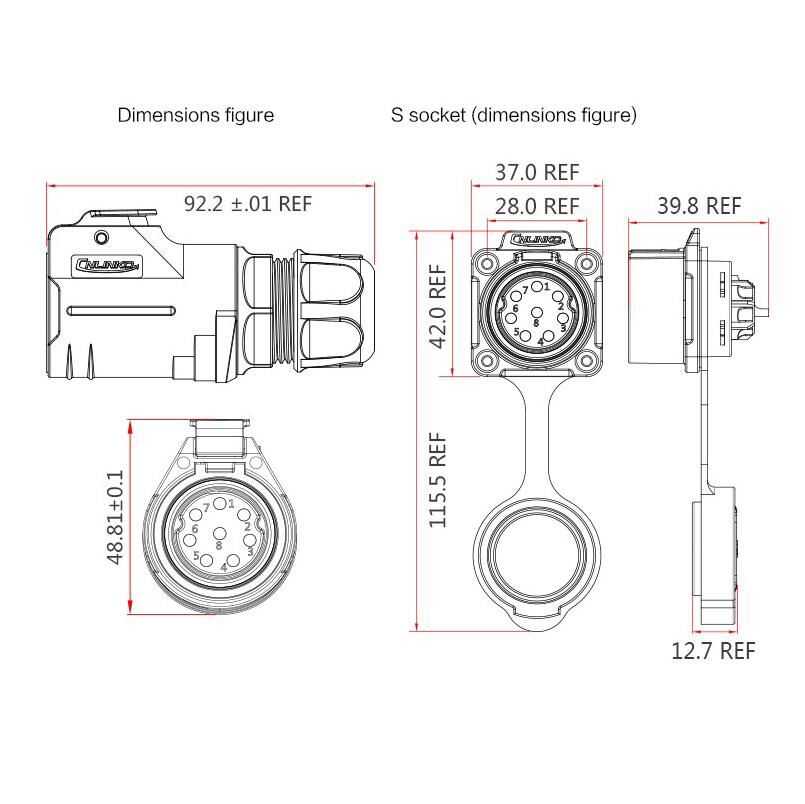

LP-28 Series Waterproof Connector

LP-28 Series Waterproof Connector


    Weight(Kg)
    0.2
    Features
    Connector Pin
    3-Pin
