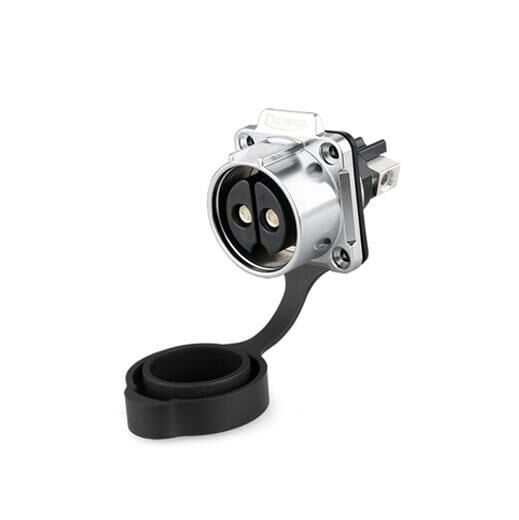

LP-28-J02SX-23-401 2-Pin Waterproof Connector - Female
LP series is the best selling waterproof made of high performance engineering plastics It is one of the connector series. Quick plug design allows one-handed plug/remove. It has gold plating technology that is resistant to corrosion and suitable for high and low temperatures. LP-28 series connectors are widely used in various harsh environments and situations such as audio-visual equipment, medical equipment, industrial control, inspection and measurement due to their small size, flexible operation and automatic plug-in/disconnect. Compact components, simple operation, fast and stable connection, IP67-rated outdoor waterproof performance.
Technical Specifications
-
Number of Pins: 2
-
Rated Current: 50A
-
Operating Voltage: 500V
-
Cable Specification: 2.5mm~5mm/14-12AWG
-
Line Diameter Range: 18mm~20mm
-
Contact Resistance: < 5m Ohm
-
Withstand Voltage (AC.V) 1 Minute: 2500 V
- Insulation Resistance: >500MOhm
-
Protection Level: IP65/IP67
-
Operating temperature:-40℃ ~80℃
