LP-28-J03SX-23-401 3-Pin Waterproof Connector - Female

Ratings & Reviews (0)
Comment
Brand: CNLINKO
Product Code: KOM.KNN.05.000301
Stokta 10+ ürün
677.69 TL + VAT
VAT Included: 813.23 TL

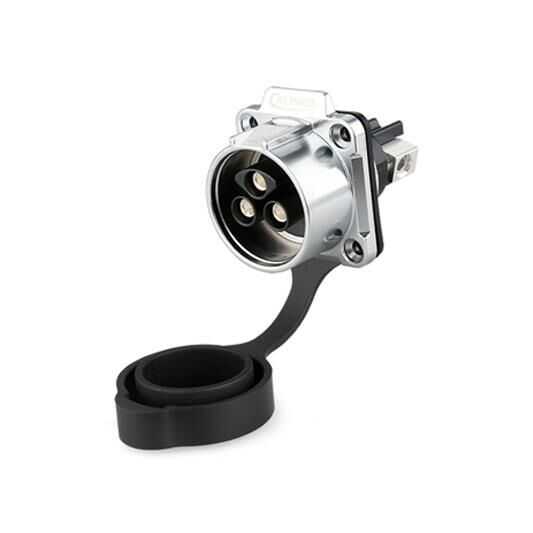

LP-28-J03SX-23-401 3-Pin Waterproof Connector - Female


LP series is the best selling waterproof made of high performance engineering plastics It is one of the connector series. Quick plug design allows one-handed plug/remove. It has gold plating technology that is resistant to corrosion and suitable for high and low temperatures. LP-28 series connectors are widely used in various harsh environments and situations such as audio-visual equipment, medical equipment, industrial control, inspection and measurement due to their small size, flexible operation and automatic plug-in/disconnect. Compact components, simple operation, fast and stable connection, IP67-rated outdoor waterproof performance.


Technical Specifications

  • Number of Pins: 3
  • Rated Current: 35A
  • Operating Voltage: 500V
  • Cable Specification: 2.5mm~5mm/14-12AWG
  • Line Diameter Range: 18mm~20mm
  • Contact Resistance: < 5m Ohm
  • Withstand Voltage (AC.V) 1 Minute: 2500 V
  • Insulation Resistance: >500MOhm
  • Protection Level: IP65/IP67
  • Operating temperature:-40℃ ~80℃


LP-28 Series Waterproof Connector

LP-28 Series Waterproof Connector


    Features
    Connector Pin
    3-Pin
