MAX1483 SMD SO8 Integrated

Ratings & Reviews (0)
Comment
Brand: Motorobit
Product Code: KOM.ENT.03.000011
Stokta 100+ ürün
17.60 TL + VAT
VAT Included: 21.12 TL

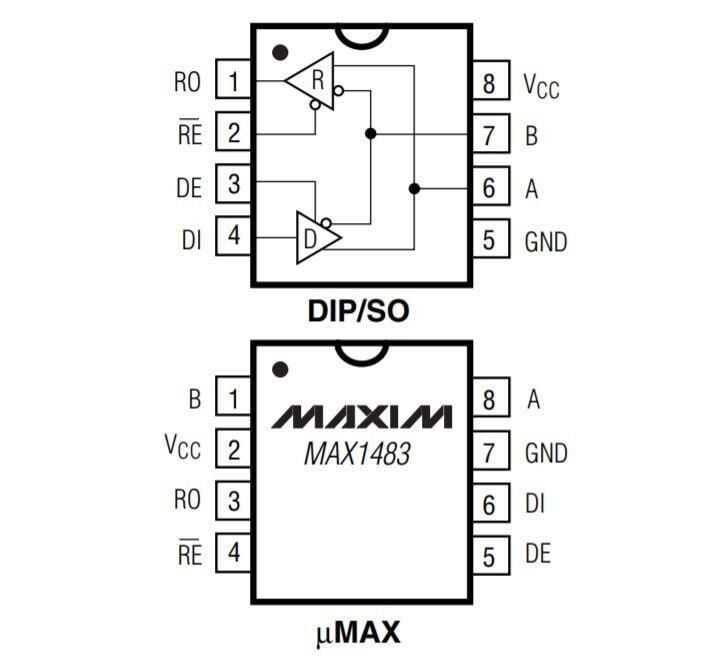

MAX1483 SMD SO8 Integrated


MAX1482 and MAX1483 are low-power transceivers for RS-485 and RS-422 communications. Both feature slew-rate limited drivers that minimize EMI and reduce reflections caused by improperly terminated cables. Data rates are guaranteed up to 250kbps.

MAX1482 / MAX1483 draws only 20µA supply current. Additionally, they have a low current shutdown mode that consumes only 0.1µA. Both parts operate from a single +5V supply.

MAX1482 is full duplex and MAX1483 is half duplex. Both parts have 1/8 unit load input impedance, ensuring 256 transceivers on the bus.


Usage Areas

  • Industrial Control Local Area Networks
  • Large 256 Node LANs
  • Low Power RS-485 / RS-422 Networks
  • Transceivers for EMI Sensitive Applications

 Series  MAX
Work Feed Voltage 5V
Buyer - Number of Transmitters 1
Number of Pins 8
Package Type SO-8

Weight(Kg)
0.02
