MAX7219 DIP24 Integrated

Ratings & Reviews (0)
Comment
Brand: Motorobit
Product Code: KOM.ENT.03.000009
Stokta son 4 ürün
63.36 TL + VAT
VAT Included: 76.03 TL

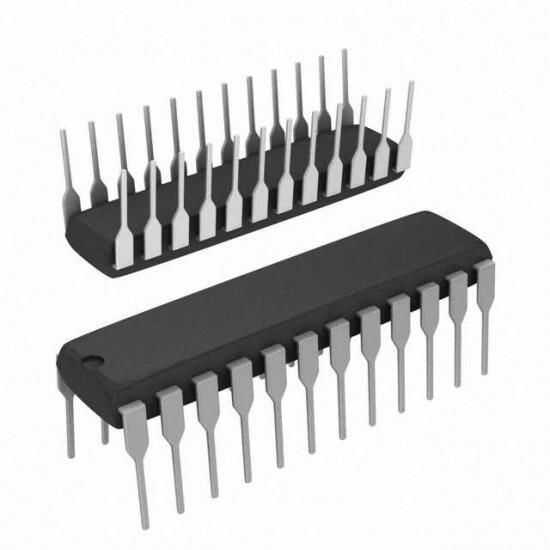

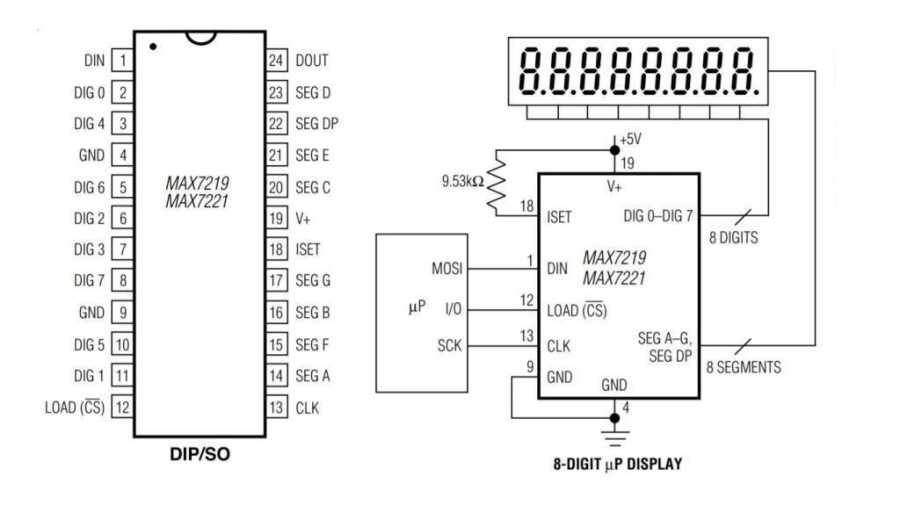

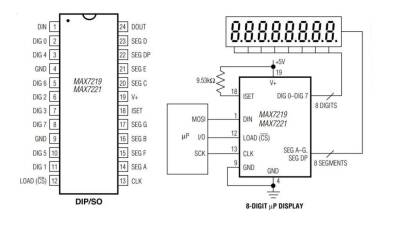

MAX7219 DIP24 Integrated


MAX7219 / MAX7221 are compact, serial input/output common cathode display drivers that connect microprocessors (µP) up to 8 digits to 7-segment digital LED displays, bar graph displays, or 64 individual LEDs. It features an on-chip BCD code-B decoder, multi-scan circuitry, segment and digit drivers, and 8x8 static RAM that stores each digit. Only one external resistor is required to set the segment current for all LEDs.

The convenient 4-wire serial interface connects to all common µPs. Individual digits can be addressed and updated without rewriting the entire screen. MAX7219/MAX7221 also allows the user to select code-B decoding or decoding for each digit.

The devices include a 150µA low power shutdown mode, analog and digital brightness control, a scan limit register that allows the user to display 1 to 8 digits, and a test mode that challenges all LEDs.


Usage Areas

  • Bar Graph Displays
  • Industrial Controllers
  • LED Matrix Displays
  • Panel Meters

Series  MAX
Supply voltage 4-5.5V
Number of Segments 64
Number of Pins 24
Package Type DIP-24

Weight(Kg)
0.02
