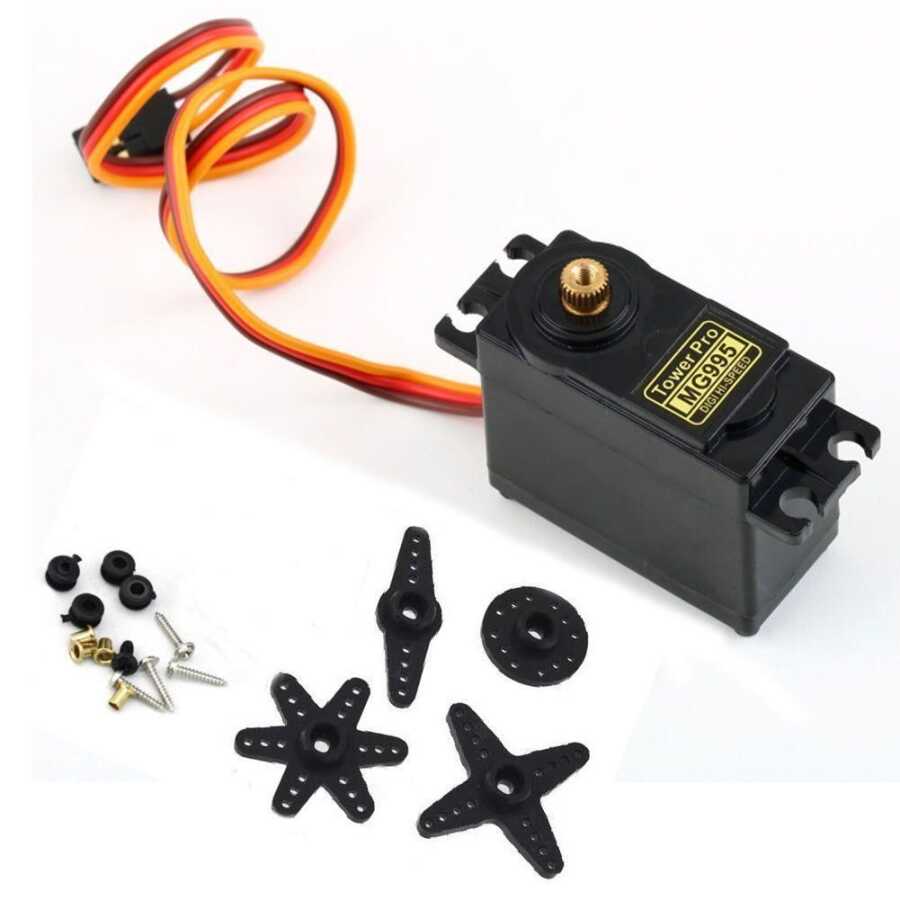

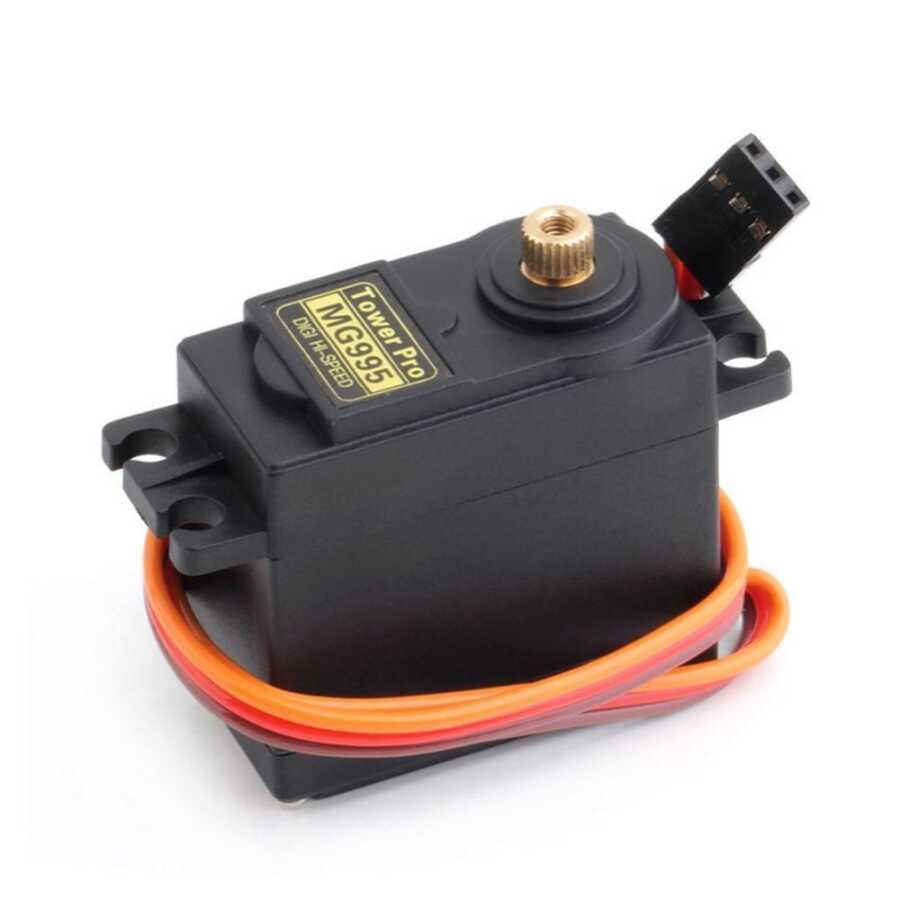

Notify me when its in stockIt is a servo motor that can rotate 360 degrees. You can easily use it in your projects that require angle and continuous rotation.
This motor is a continuous servo model and rotates continuously, it does not stop at certain angle values. For angular positioning, choose models with 180 degrees.
Mode: Analog
Torque: 4.8V:138.9 oz-in(10.00 kg-cm)
Speed: 4.8V:0.20 sec/60°
Weight: 1.94 oz(55.0 g)
Dimensions:
Length:1.60 in(40.6 mm)
Width:0.78 in(19.8 mm)
Height:1.69 in(42.9 mm)
Motor Type: Coreless
Additional Features
Rotation Angle: 360°
Pulse cycle: 20 ms
Pulse width: 1000-2000 µs
Connection cable: JR
