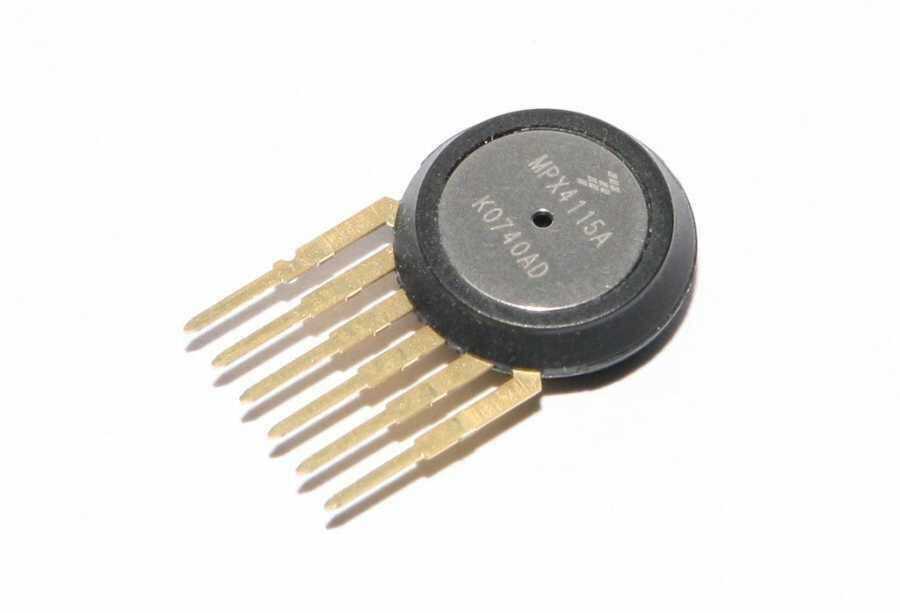

MPX4115A is an absolute altimeter / barometer pressure sensor in a 6 pin SIP package. This device is designed to detect absolute air pressure in an altimeter or barometer (BAP) applications. MPX4115A sensor, high level analog output signal and temperature It combines on-chip bipolar op amp circuitry and thin-film resistor networks to provide compensation. Small form factor and high reliability of on-chip integration, MPX4115A making the sensor a logical and economical option for application designers.
To see all our pressure sensors click.
On-chip signal conditioned, temperature compensated and calibrated
1.5% maximum error from 0 °C to 85 °C
Ideally suited for microprocessor or microcontroller based systems
Durable epoxy one-piece element
Available in base element package
Pressure range from 15KPa to 115KPa
Supply voltage from 4.85VDC to 5.35VDC range
1ms response time
Sensitivity of 46mV/KPa
Operating temperature -40° to 125°C
