NEMA 14 Bipolar. 200 Steps. 35×28mm. 10V Stepper Motor - PL-1208

Ratings & Reviews (0)
Comment
Brand: Soyo
Product Code: MTR.STP.03.000002
Stokta 10+ ürün
598.40 TL + VAT
VAT Included: 718.08 TL

NEMA 14 Bipolar, 200 Steps, 35×28mm, 10V Stepper Motor - PL-1208

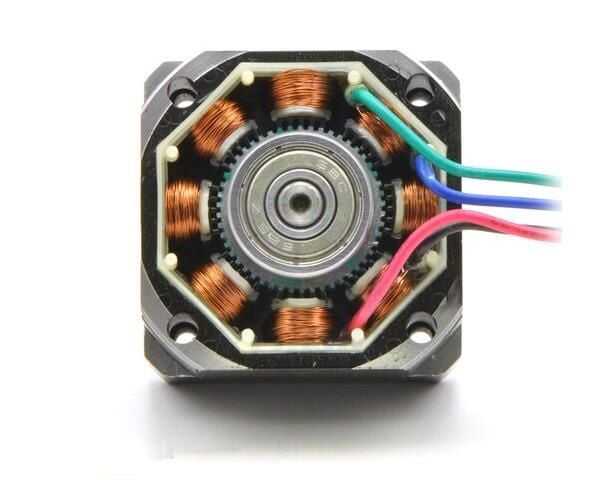

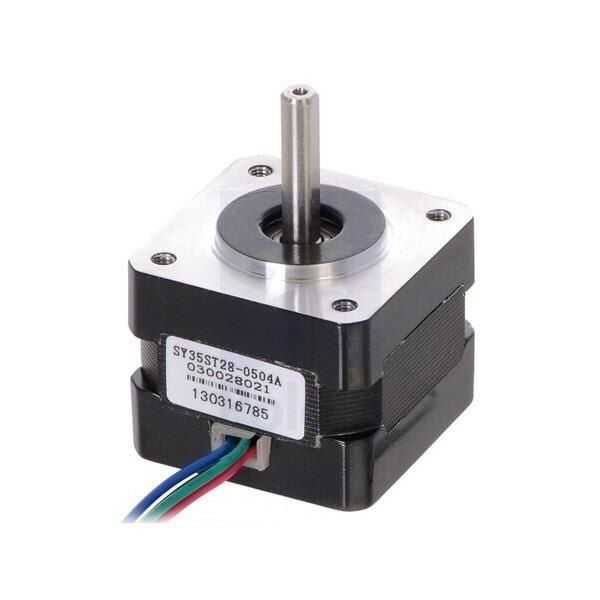

SY35ST28-0504A hybrid bipolar stepper motor with 1.8° step angle (200 steps / cycle). Each phase draws 500 mA at 10 V, allowing a holding torque of 1 kg-cm. The motor has four color-coded wires terminated with bare ends: black and green connect to a coil; red and blue are connected together. The motor can be controlled with a pair of suitable H-bridges (one for each coil), but bipolar stepper motor driver.

Technical Specifications

  • Dimension: 35 mm square × 28 mm, not including spindle (NEMA 14)
  • Weight: 140 g
  • Spindle diameter: 5 mm "D”
  • Steps per revolution: 200
  • Current rating: 500 mA per coil
  • Voltage rating: 10 V
  • Resistance: 20 Ω per coil
  • Holding torque: 1kg-cm
  • Inductance: 13.5 mH per coil
  • Output shaft supported by two ball bearings

Dimensions

The diagram below shows the stepper motor dimensions in mm. Its length is 26 mm. The output D-shaft has a length of 21 mm and a diameter of 5 mm, with a flattened cross section of 0.5 mm. This shaft is Can be used with 5mm Motor Mounting Bracket.

NEMA 14 Bipolar, 200 Steps, 35×28mm, 10V Stepper Motor - PL-1208

Stepper Motor Applications

Stepper motors are often used in a variety of applications where precise position control is desired and the cost or complexity of a feedback control system is not warranted. A few applications where stepper motors are often found:
  • Printers
  • CNC machines
  • 3D printer / prototyping machines
  • Laser cutters
  • li>
  • Pick and place machines
  • Linear actuators
  • Hard disks
