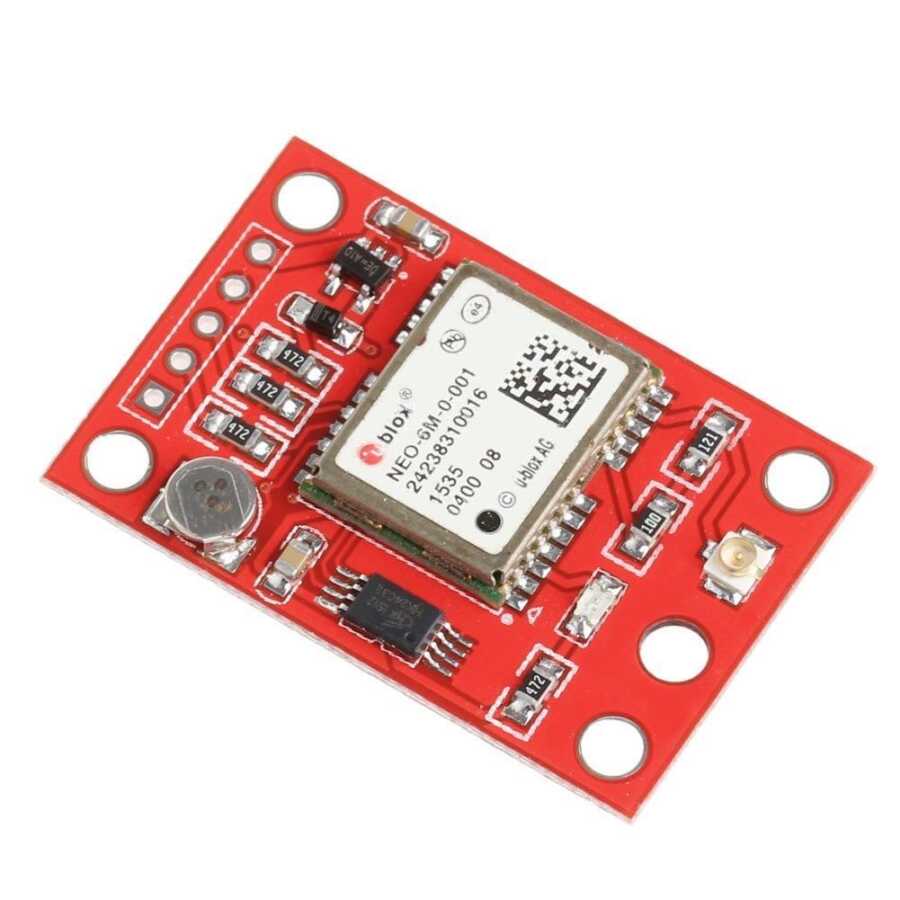

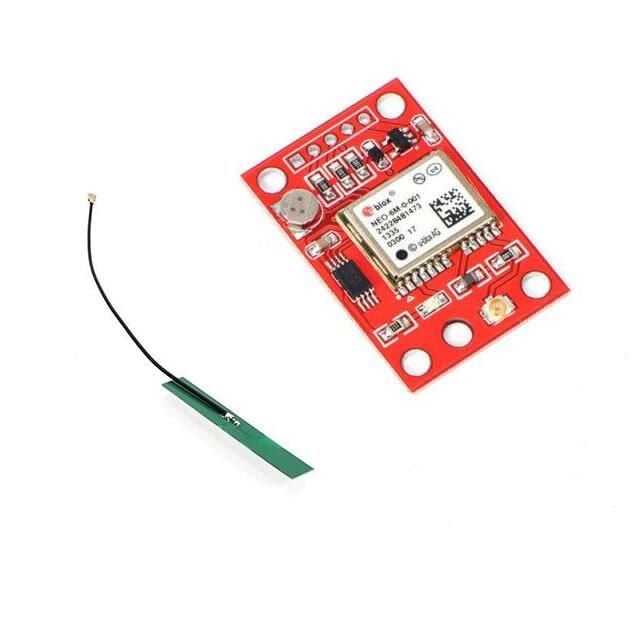

NEO-6M V2 GPS Module with Antenna
Location tracking can be done using GPS with NEO-6M. It is especially ideal for flight control systems. The GY-NEO6 V2 GPS module series is a family of standalone GPS receivers featuring the high-performance u-blox 6 positioning engine. Its compact architecture and power and memory options make GY-NEO6MV2 modules ideal for battery-powered mobile devices with very tight cost and space constraints. Innovative design and technology suppress jamming sources and reduce multipath effects, so GY-NEO6MV2 GPS receivers provide excellent navigation performance even in the most challenging environments.
This module is compatible with APM2 and It is compatible with APM2.5 and EEPROM can store all your configuration data. You can easily use it with Arduino since it uses a UART (RX-TX) communication unit.
Technical specifications
- Module with antenna, mini size with strong signal
- EEPROM saves configuration parameter data when power off
- Data backup
- LED signal lights
- Compatible with various flight control modules
- Power supply: 3V-5V
- Model: GY - GPS6MV2
- Default baud rate: 9600< /LI>
Pin Definitions
- Vcc: Supply Voltage
< LI>Gnd: Ground pin- TX and RX: These 2 pins act as a UART interface for communication
- PPS: Pulse per Second pin
