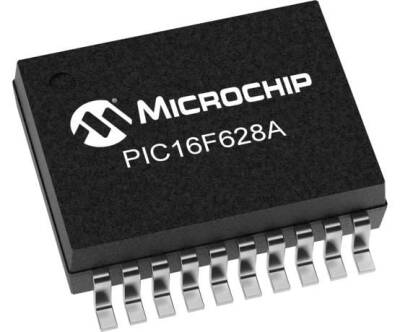

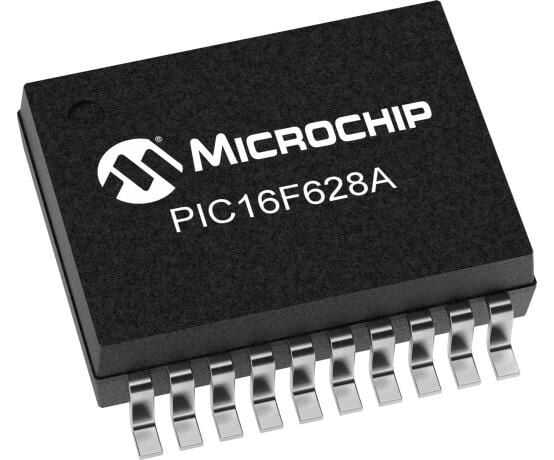

PIC16F628A SMD SOIC-18 8-Bit 20MHz Microcontroller
This powerful and easy-to-program CMOS FLASH-based 8-bit microcontroller incorporates Microchip's powerful PIC architecture into an 18-pin Compatible with bundled packages.
PIC16F628A, 4MHz internal oscillator, 128 byte EEPROM data memory, a capture/compare/PWM, a USART, 2 Comparators and analog/integrated level in automotive, industrial, appliance and consumer applications It has a programmable voltage reference, making it ideal for applications.
Areas of Use
- Design requiring a large number of ADC channel
- Battery-Operated Low Power Applications
- More advanced A/D applications in automotive, industrial, appliance and consumer applications
Technical Specifications
| Product Code |
PIC 16F628A |
| Program Memory Type |
Flash |
| Program Memory Size (KB) |
3.5 |
| CPU Speed (MIPS / DMIPS) |
5 |
| SRAM (B) |
224 |
| Data EEPROM / HEF (bytes) |
128 |
| Timers |
2 x 8 bit, 1 x 16 bit |
| Number of Comparators |
2 |
| Operating Voltage Range (V) |
2 - 5.5V |
| Number of Pins |
18 |
