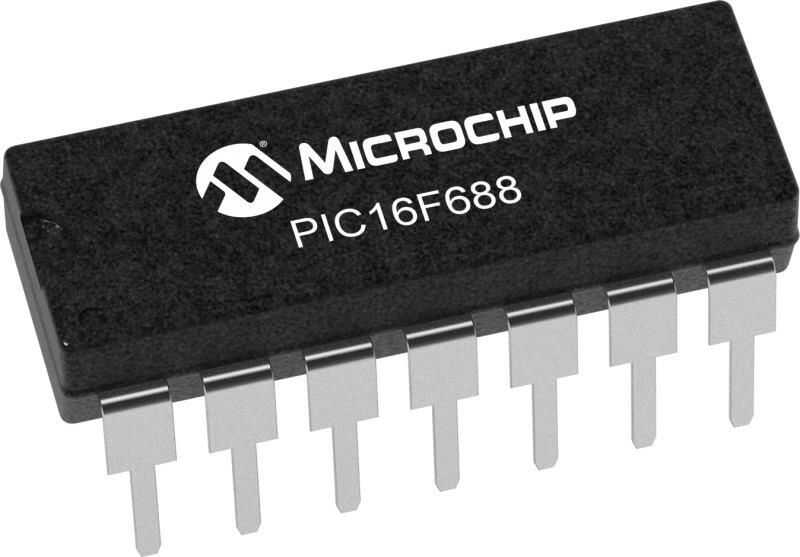

PIC16F688-I/P PDIP-14 20MHz Microcontroller
Low Pin Count (14) PIC® Flash microcontroller products It offers all the advantages of the well-known mid-range x14 architecture with a wide operating voltage of 2.0-5.5 volts, onboard EEPROM Data Memory and standardized features including nanoWatt. technology. Standard analog peripherals include up to 8 10-bit A/D channels, an analog comparator module with on-chip programmable voltage reference, and an Enhanced USART (EUSART) peripheral that supports communications protocols.
Technical Specifications
| Product Code |
PIC16F688 |
| Program Memory Type |
Flash |
| Program Memory Size |
7 kB |
| Bus Width |
8-Bit |
| Max Clock Frequency |
20 MHz |
| Data RAM Size |
256B |
| I/O Count |
12 |
| Number of Timers |
2 |
| Operating Voltage Range (V) |
2 - 5.5V |
| Number of Pins |
14 |
