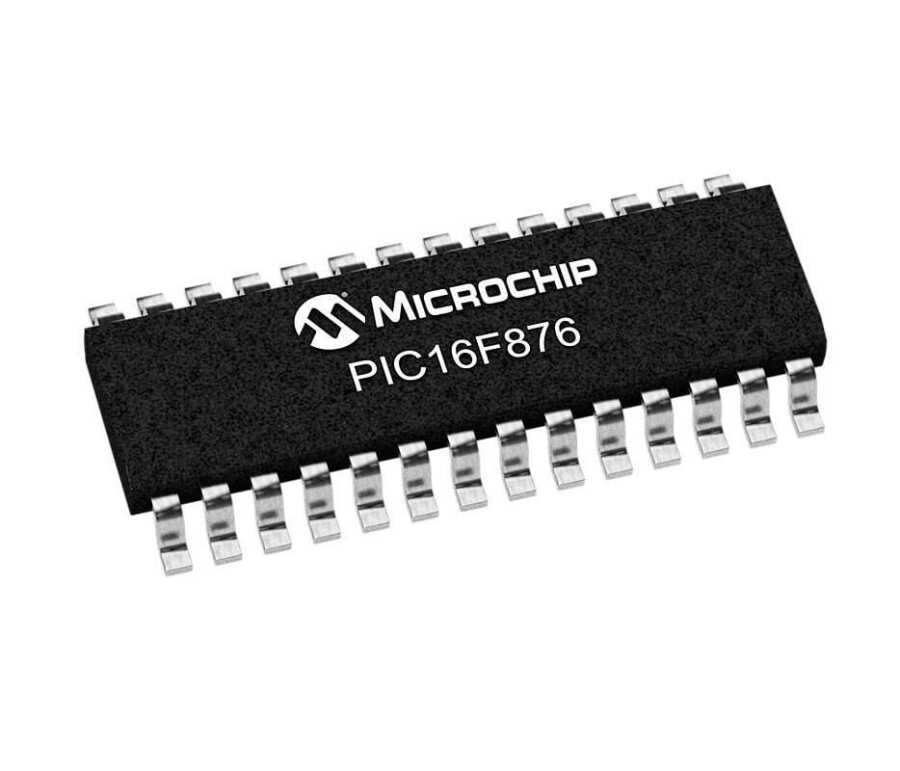

PIC16F876A SMD 8-Bit 20MHz Microcontroller

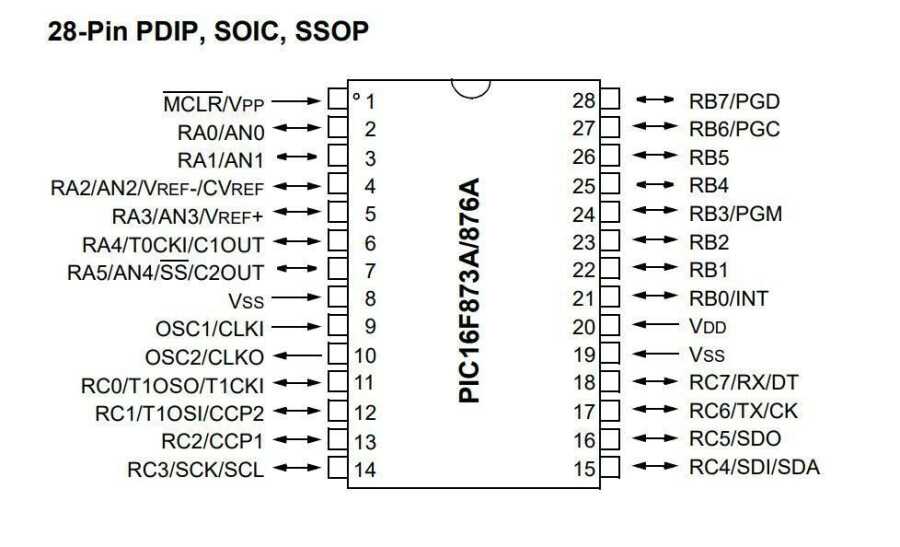

This powerful (200 nanosecond instruction execution) and easy to program (only 35 one-word instructions) CMOS FLASH based 8-bit microcontroller It is in 28 pin SMD package. PIC16F876A 256 byte EEPROM data memory, self-programming, one ICD, 2 Comparators, 5 channels 10-bit Analog-Digital (A/D) converter, 2 capture/compare/PWM functions, synchronous serial port 3-wire Serial Peripheral Interface or Can be configured as a 2-wire Integrated Circuit (I²C™) bus and Universal Asynchronous Transceiver.
Specifications
| Product Code |
PIC 16F876 |
| Program Memory Type |
Flash |
| Program Memory Size (KB) |
14 |
| CPU Speed (MIPS / DMIPS) |
5 |
| SRAM (KB) |
368 |
| Data EEPROM / HEF (bytes) |
256 |
| Timers |
2 x 8 bit, 1 x 16 bit |
| Number of Comparators |
2 |
| Operating Voltage Range (V) |
2 - 5.5V |
| Number of Pins |
28 |
