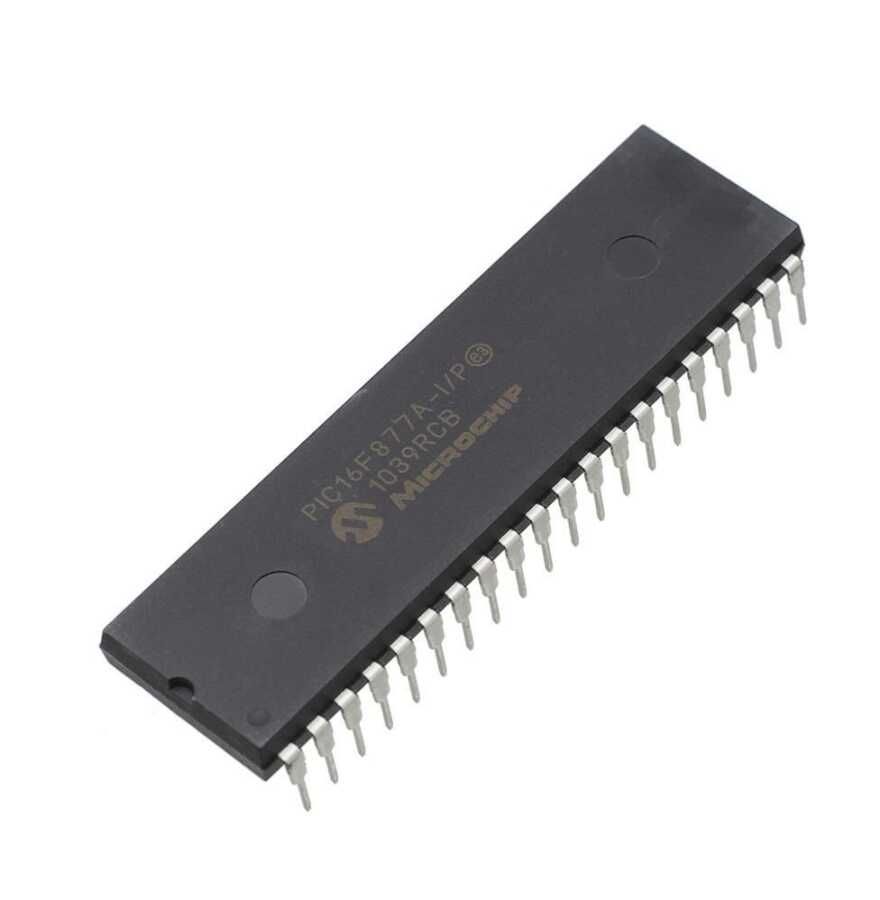

PIC16F877A DIP40 8-Bit 4-20MHz Microcontroller
This powerful (200 nanosecond instruction execution) yet easy to program (only 35 single word instructions) CMOS FLASH based 8 bit microcontroller combines Microchip's powerful PIC architecture in a 40- or 44-pin package.
Uses
- Design requiring multiple ADC channels
- Battery-Operated Low Power Applications
- Ideal for more advanced A/D applications in automotive, industrial, appliance and consumer applications
Technical Specifications
| Product Code |
PIC 16F877A |
| Program Memory Type |
Flash |
| Program Memory Size (KB) |
14 |
| CPU Speed (MIPS / DMIPS) |
5 |
| SRAM (KB) |
368 |
| Data EEPROM / HEF (bytes) |
256 |
| Timers |
2x8 bit, 1x16 bit |
| ADC Input |
8 channels, 10 bit |
| Operating Voltage Range (V) |
2 - 5.5V |

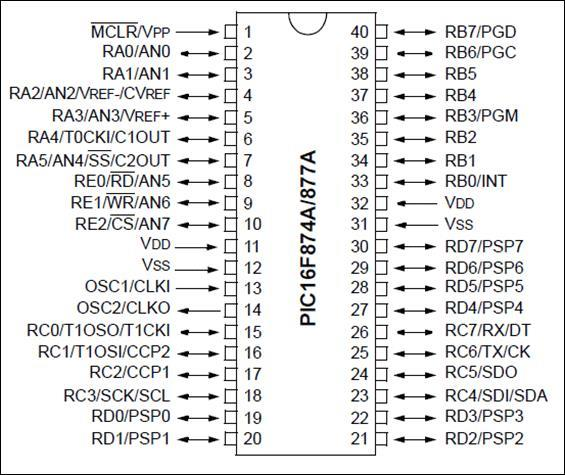

| Number of Pins |
40 |
