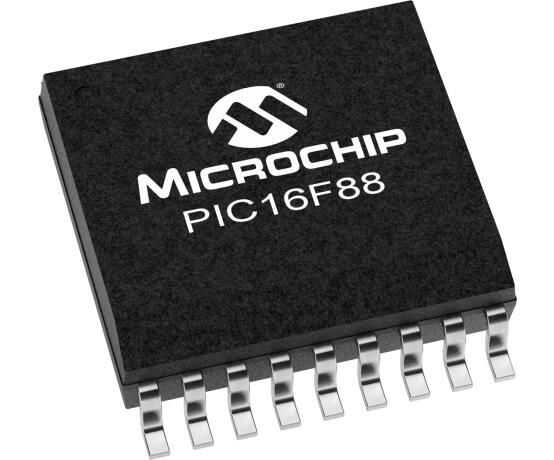

PIC16F88 SMD SOIC-18 8-Bit 20MHz Microcontroller
This powerful (200 nanosecond instruction execution) and easy to program (only 35 one-word instructions) CMOS Flash based The 8-bit microcontroller packages Microchip's powerful PIC® architecture into an 18-pin package and is compatible with PIC16C7x, PIC16C62xA, PIC16C5X and PIC12CXXX devices.
Uses
- Design requiring multiple ADC channels
- Battery-Operated Low Power Applications
- Design requiring multiple I/O interfaces and communications
- Ideal for more advanced A/D applications in automotive, industrial, appliance and consumer applications
Specifications
| Code |
PIC 16F877A |
| Program Memory Type |
Flash |
| Program Memory Size (KB) |
7 |
| CPU Speed (MIPS / DMIPS) |
5 |
| SRAM (KB) |
368 |
| Data EEPROM / HEF (bytes) |
256 |
| Timers |
2 x 8 bit, 1 x 16 bit |
| ADC Input |
7 channel, 10 bit |
| Operating Voltage Range (V) |
2 - 5.5V |

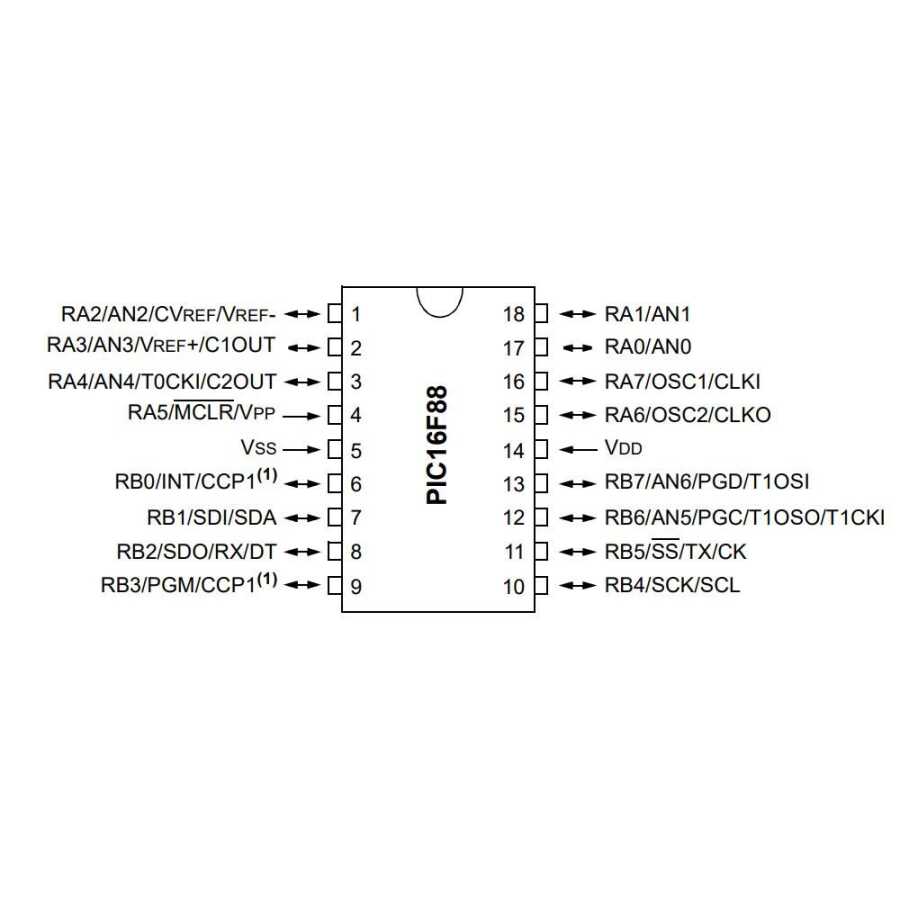

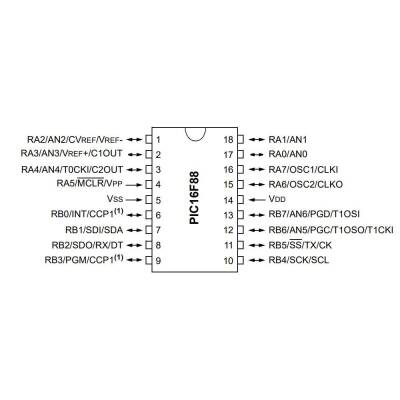

| Number of Pins |
18 |
