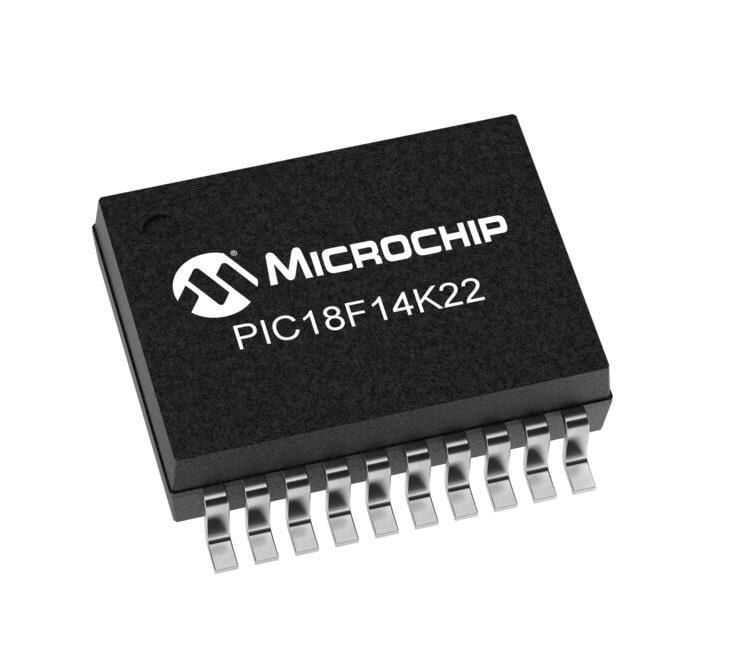

PIC18F14K22 SMD 16-Bit 64MHz Microcontroller
PIC18F offers all the advantages of High Performance MCUs; The 8-bit, C compiler-optimized architecture and industry-leading peripheral set is now available in a low pin count option. These new 20-pin products feature a 16 MHz precision Internal Oscillator that can be used with a standard 4X PLL to produce 16 MIPS of performance (64 MHz @ 3V). Standard analog peripherals include 12 channels of 10-bit A/D, Dual-Rail Rail Comparators with advanced input/output multiplexing, and on-chip selectable Constant Voltage Reference. Digital peripherals include an Enhanced Capture/Compare/PWM (ECCP+) module with PWM routing and a Master Synchronous Serial Port (MI2C, SPI) module with software-controllable address masking.
Technical Specifications
| Product Code |
PIC18F14K22 |
| Program Memory Type |
Flash |
| Program Memory Size (KB) |
16 |
| CPU Speed (MIPS / DMIPS) |
16 |
| SRAM (KB) |
512 |
| Data EEPROM / HEF (bytes) |
256 |
| Timers |
1 x 8 bit, 3 x 16 bit |
| Number of Comparators |
2 |
| Operating Voltage Range (V) |
1.8 - 5.5V |

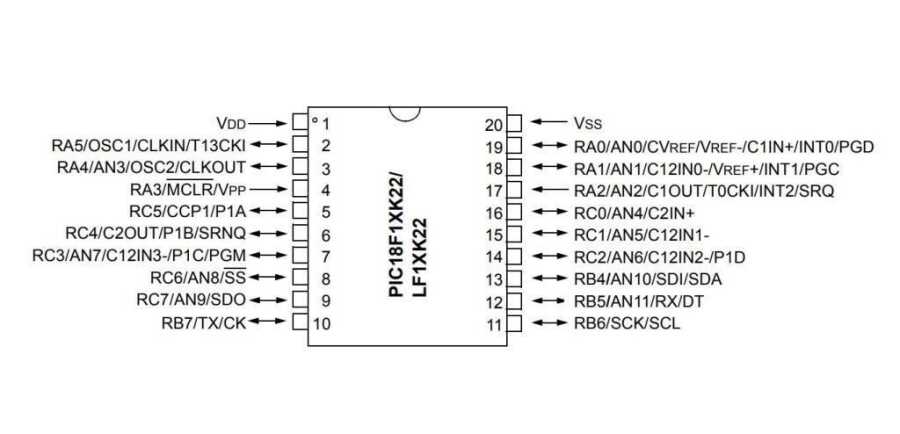

| Number of Pins |
20 |
